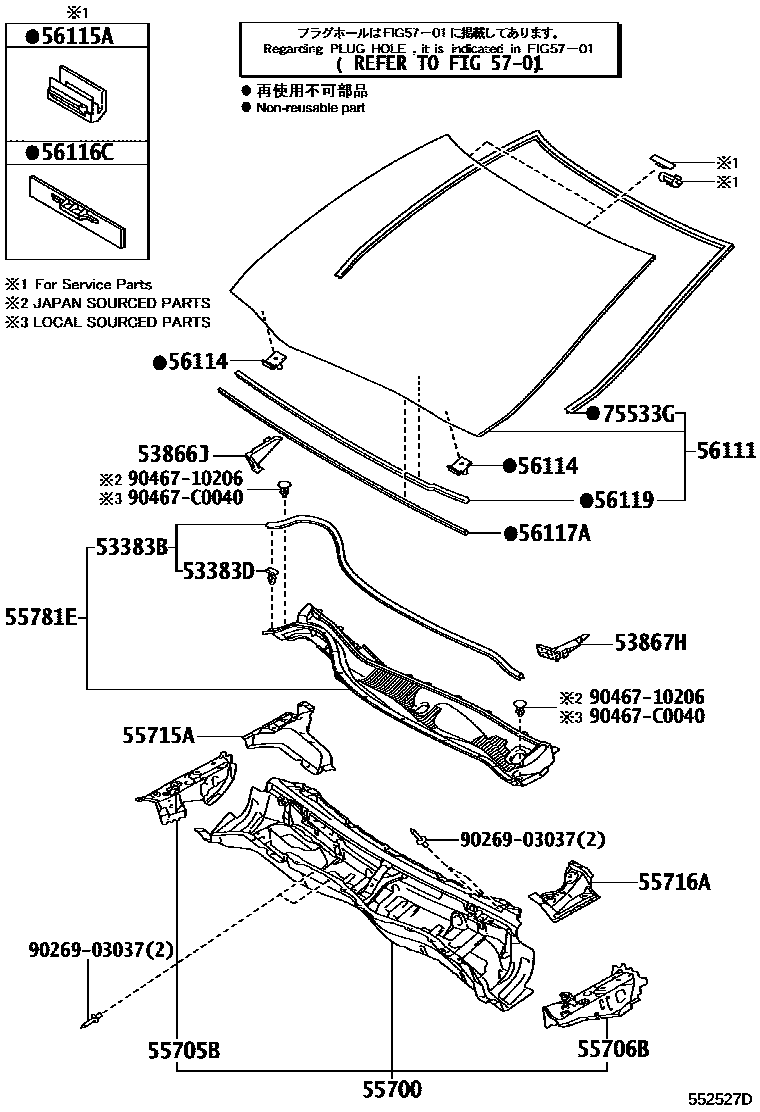

Toyota REIZ — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-0P020i201309

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08108×12i201309

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0P020i201309

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0P020i201009-201309

55700PANEL ASSY, FRONT

main55700-0P020i201309

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-0P020i201309

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-0P020i201309

55715ABRACE, COWL TOP TO APRON, RH

main55715-0P020i201309

55716ABRACE, COWL TOP TO APRON, LH

main55716-0P020i201309

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0P020i201009-201309

56111GLASS, WINDSHIELD

main56101-0P030i201009-201309

*LAM,T=5.36,GREEN

main56101-0P050supersedes 56101-0P040i201009-201309

*LAM,T=5.36,GREEN; *LAM,T=5.36,GREEN,SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); *LAM,T=5.36,GREEN,SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); *LAM,T=5.36,GREEN,SPORT & WITH(*MR&*NS); *LAM,T=5.36,GREEN,SPORT & WITH(*MR)

56114RETAINER, WINDSHIELD GLASS

main56114-0N010×2i201110-201309

main56114-22050×2i201009-201109

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-0N010i201309

main56115-30110i201009-201109

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050i201309

56117ADAM, WINDOW GLASS ADHESIVE

main56117-0P020i201009-201309

L=1295; L=1295,SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); L=1295,SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); L=1295,SPORT & WITH(*MR&*NS); L=1295,SPORT & WITH(*MR)

56119SEAL, WINDSHIELD GLASS

main56119-0P010i201009-201309

5701HOLE PLUG

→ Go to FIG 57-01

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-0P020i201009-201309

9026903037

main90269-03037

9046710206

main90467-10206

90467C0040

main90467-C0040

21 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota REIZ

This section contains 21 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota REIZ. Key components include: SEAL, HOOD TO COWL TOP, CLIP(FOR HOOD TO COWL TOP SEAL), SEAL, FRONT FENDER TO COWL SIDE, RH, SEAL, FRONT FENDER TO COWL SIDE, LH, PANEL ASSY, FRONT.
