Toyota REIZ — CAMERA & REAR MONITOR DISPLAY

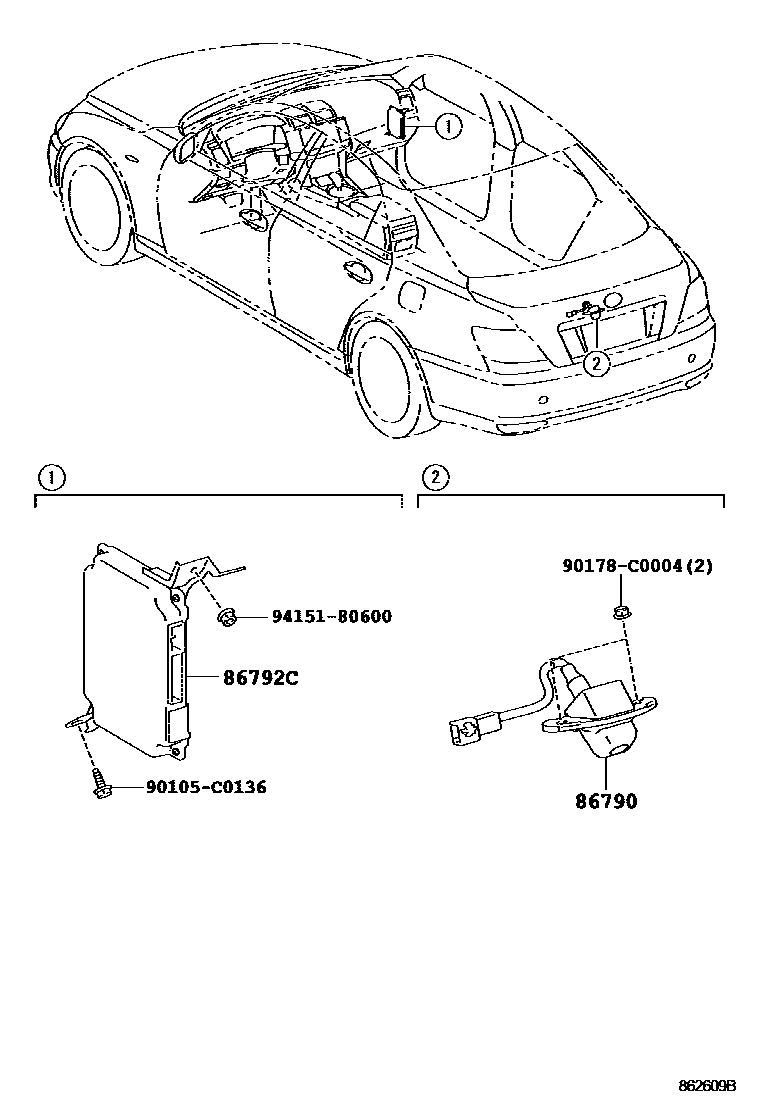

Parts diagram
86790CAMERA ASSY, TELEVISION
main86790-0P010i200712
EMV & NAVIGATION SYSTEM-WITH(DVD)
main86790-22030i200710-200712
EMV & NAVIGATION SYSTEM-WITH(DVD)
86792CCOMPUTER, PARKING ASSIST
main86792-22050i200710
EMV & NAVIGATION SYSTEM-WITH(DVD)
90105C0136
main90105-C0136
90178C0004
main90178-C0004
9415180600
main94151-80600

5 parts on this diagram · 1 diagram in section

CAMERA & REAR MONITOR DISPLAY for Toyota REIZ

This section contains 5 genuine Toyota parts for the CAMERA & REAR MONITOR DISPLAY system of the Toyota REIZ. Key components include: CAMERA ASSY, TELEVISION, COMPUTER, PARKING ASSIST.
