Toyota REIZ — ANTENNA

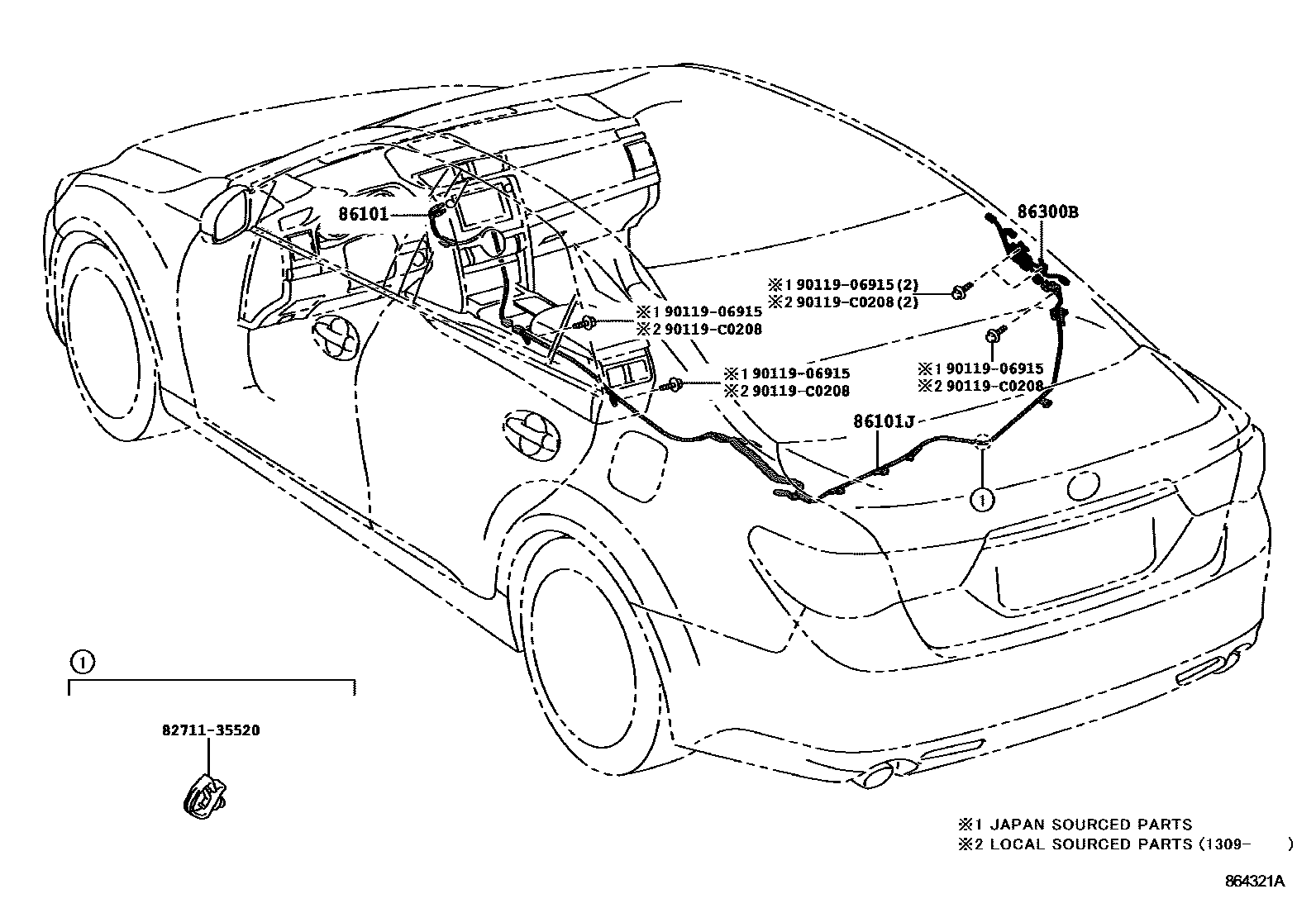

Parts diagram

86101CORD SUB-ASSY, ANTENNA

main86101-0P060i201009-201309

main86101-0P070i201309-201609

main86101-0P080i201309

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-0P050i201009-201309

main86101-0P090i201309

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-0P010i201009-201309

8271135520WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35520

9011906915

main90119-06915

90119C0208

main90119-C0208

6 parts on this diagram · 1 diagram in section

ANTENNA for Toyota REIZ

This section contains 6 genuine Toyota parts for the ANTENNA system of the Toyota REIZ. Key components include: CORD SUB-ASSY, ANTENNA, CORD SUB-ASSY, ANTENNA, NO.2, ANTENNA ASSY, AMPLIFIER, NO.1, WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER).
