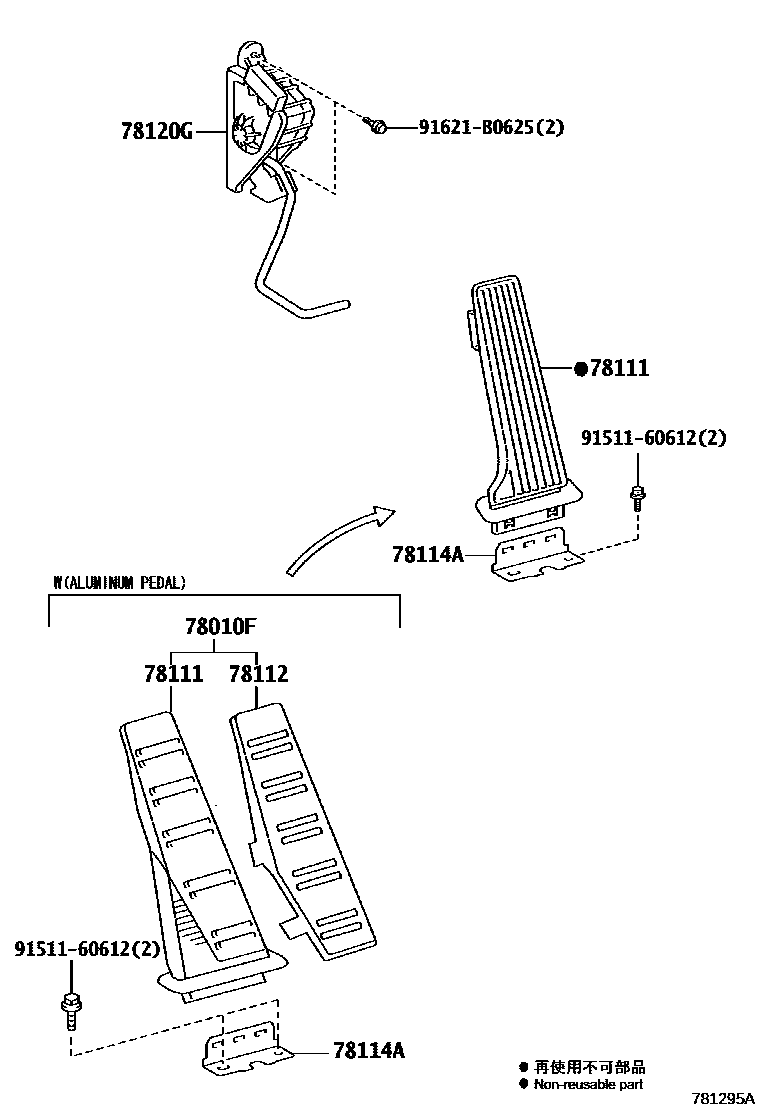

Toyota REIZ — ACCELERATOR LINK

78010FPEDAL ASSY, ACCELERATOR

main78101-0P010i201212-201309

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); SPORT & WITH(*MR)

main78101-0P020i201312

main78101-0P030i201312-201609

main78101-22040i201009-201211

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); SPORT & WITH(*MR)

main78101-22050i201309-201311

SPORT & W(*MR & *NS); SPORT & W(*MR)

main78101-30100i201309-201311

78111PEDAL, ACCELERATOR

main78111-0P010i201212-201309

main78111-22050i201009-201309

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); SPORT & WITH(*MR)

main78111-22060i201309-201609

main78111-30130i201009-201211

78112ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.4

main78112-22050i201009-201309

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); SPORT & WITH(*MR)

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78108-0P010i201212-201309

main78108-30130i201009-201211

78120GROD ASSY, ACCELERATOR PEDAL

main78120-30A10i201009-201309

main78120-30A11i201605

9151160612

main91511-60612

91621B0625

main91621-B0625

7 parts on this diagram · 2 diagrams in section

ACCELERATOR LINK for Toyota REIZ

This section contains 10 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota REIZ. Key components include: PEDAL ASSY, ACCELERATOR, PEDAL, ACCELERATOR, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.4, BRACKET, ACCELERATOR PEDAL SUPPORT, PAD, ACCELERATOR PEDAL.
