Toyota REGIUS/TOURING HIACE — PARTIAL ENGINE ASSEMBLY

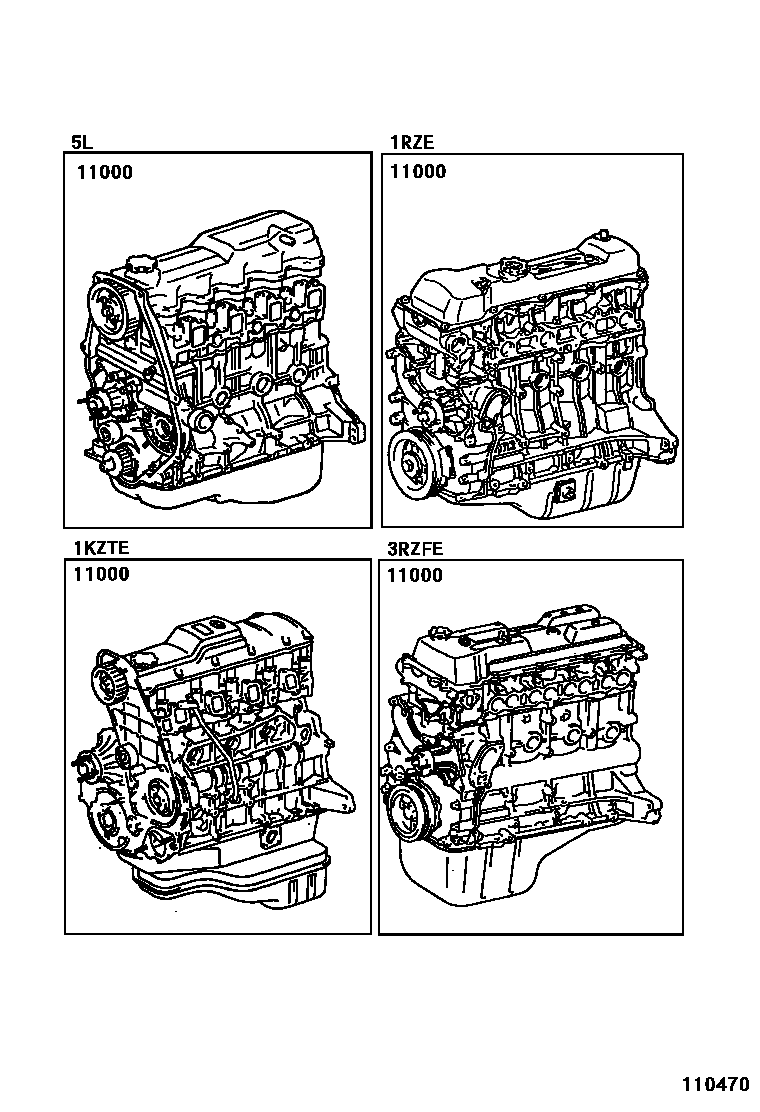

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-5B440i199706

main19000-5B450i199706

main19000-67080i199704-199907

main19000-67090i199704-199907

main19000-67190i199907-200005

main19000-67191i200005

main19000-67200i199907-200005

main19000-67201i200005

main19000-75180i199704-199804

main19000-75181i199804-199907

main19000-75340i199704-199804

main19000-75341i199804-199907

main19000-75350i199706

main19000-75640i199907

main19000-75650i199907

1 parts on this diagram · 1 diagram in section

PARTIAL ENGINE ASSEMBLY for Toyota REGIUS/TOURING HIACE

This section contains 1 genuine Toyota parts for the PARTIAL ENGINE ASSEMBLY system of the Toyota REGIUS/TOURING HIACE. Key components include: ENGINE ASSY, PARTIAL.
