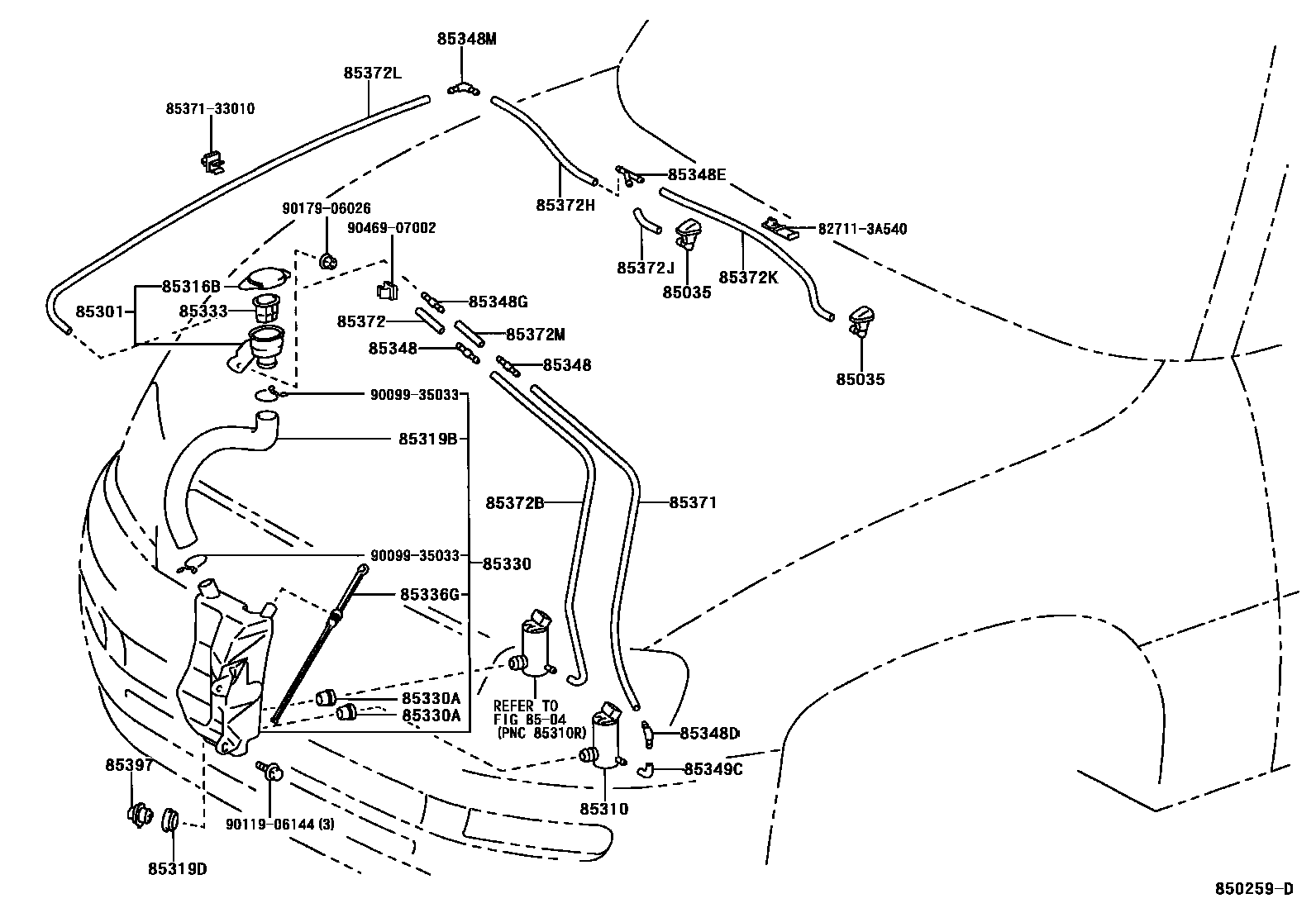

Toyota RAV4 — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
8504
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85319BHOSE, WINDOW WASHER
85319DPACKING, FRONT WASHER
CANADA SPEC
85330JAR ASSY, WINDSHIELD WASHER
COLD SPEC
CANADA SPEC
CANADA SPEC
85330ABUSH, WINDSHIELD WASHER JAR
85333FILTER, WINDSHIELD WASHER JAR
85336GGAGE, WATER LEVEL
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85349CJOINT, WINDSHIELD WASHER ELBOW, NO.4
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=700),COLD SPEC
L=1800(*H,L=700)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=40)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1800(*H,L=650)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=390),COLD SPEC
L=1800(*H,L=390)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=1450(*H,L=40)
L=1200
85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
L=1450(*H,L=540),COLD SPEC
L=1000(*H,L=540)
85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
L=1200
L=1800(*H,L=1140)
L=750
85372MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7
L=1450(*H,L=40)
85397SWITCH ASSY,LEVEL WARNING
827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3A540
8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-33010
9009935033
main90099-35033
9011906144
main90119-06144
9017906026
main90179-06026
9046907002
main90469-07002
32 parts on this diagram · 1 diagram in section
