Toyota RAV4 — V-BELT

1601WATER PUMP

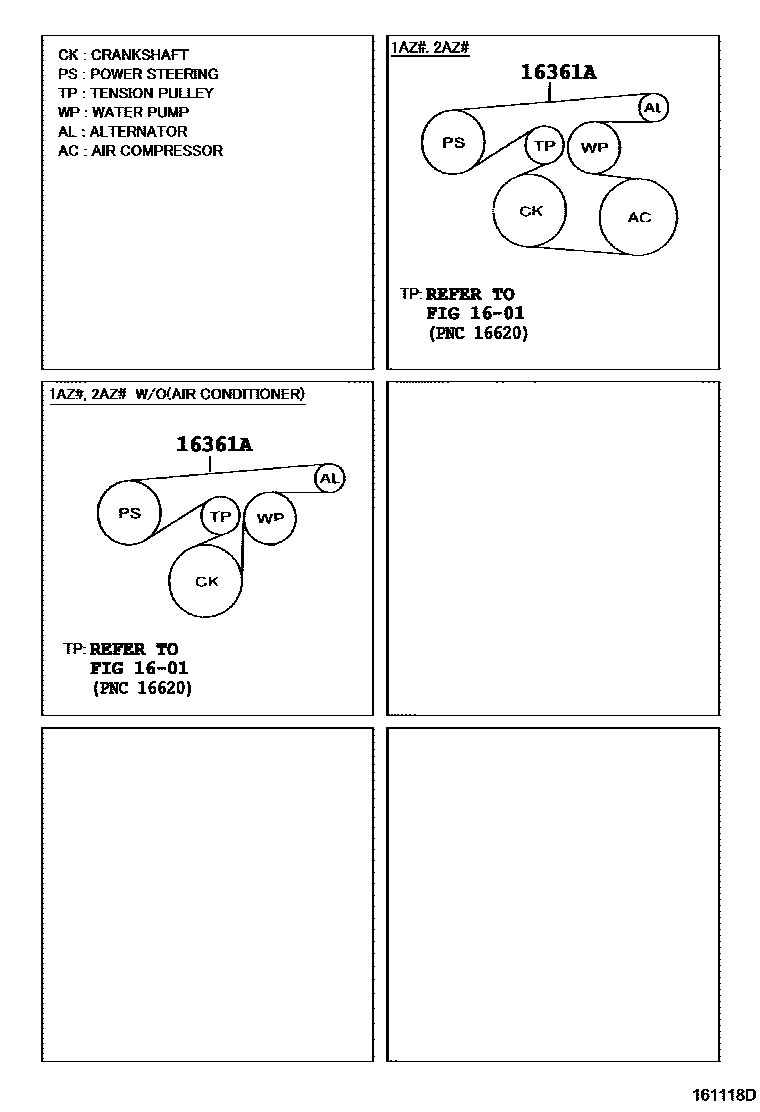

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-91214i200306-200307

MARK 90080-91214

main90916-02491i200008-200307

MARK 90916-02491

main90916-02494i200307-200402

MARK 90916-02494

main90916-02502i200008-200307

W(AIR CONDITIONER ),MARK 90916-02502

main90916-02503i200307-200402

W(AIR CONDITIONER ),MARK 90916-02503

main90916-02596i200403-200511

MARK 90916-02596

main90916-02597i200403-200511

MARK 90916-02597

main90916-02598i200403-200407

MARK 90916-T2014

main90916-02599i200403-200511

W(AIR CONDITIONER ),MARK 90916-02599

2 parts on this diagram · 1 diagram in section

V-BELT for Toyota RAV4

This section contains 2 genuine Toyota parts for the V-BELT system of the Toyota RAV4. Key components include: WATER PUMP, BELT, V(FOR FAN & ALTERNATOR).
