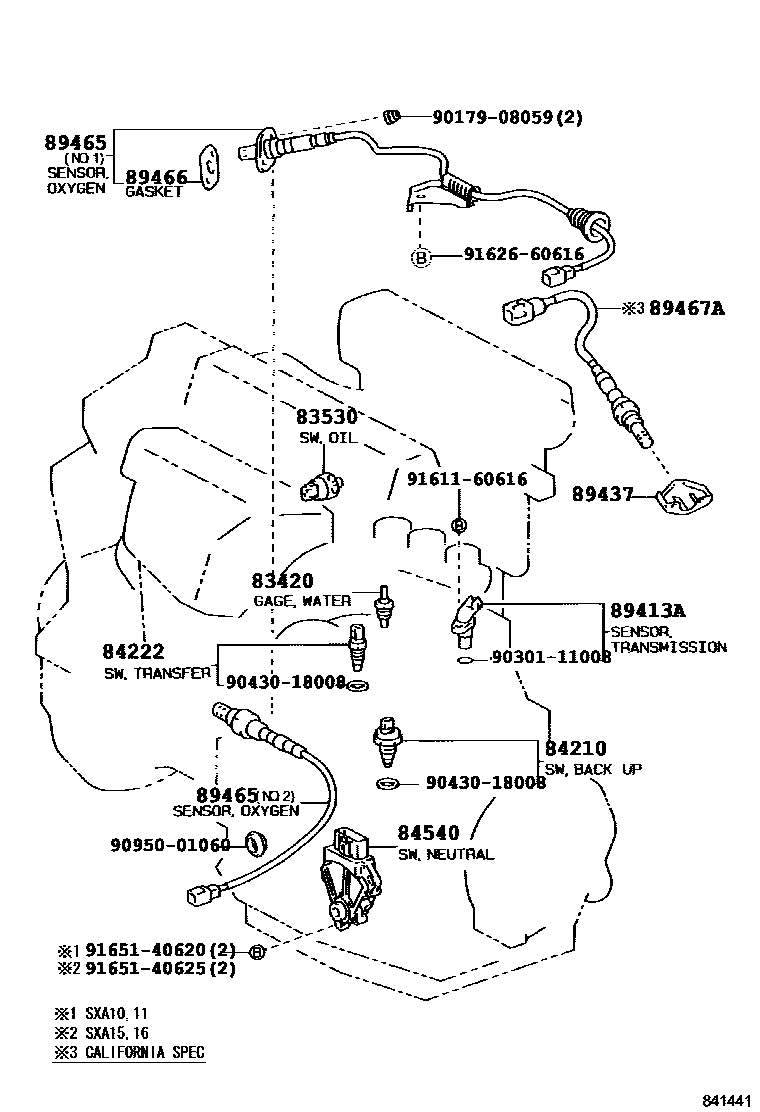

Toyota RAV4 — SWITCH & RELAY & COMPUTER

0001 1ENGINE TRANSMISSON TRANSFER 0002 1ENGINE ROOM RELAY 0003 1INSTRUMENT SWITCH 0004 1ROOF,DOOR,FLOOR SWITCH 0005 1COWL,INSTRUMENT RELAY 0006 1IGNITION SWITCH, CONBINATION

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iSXA1#199511-199709

DENSO

main83420-20040iSXA1#199709

DENSO

main83420-AA010iSXA1#199709

AMERICAN YAZAKI

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iSXA1#199803

DENSO

main83530-30090iSXA1#199511-199709

DENSO

main83530-60020iSXA1#199803

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iSXA1#..MTM199511

sub84210-52050

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-12010iSXA10,11..MTM199511

84540SWITCH ASSY, NEUTRAL START

main84540-12200iSXA15,16..ATM199709

TOKAIRIKA

main84540-12210iSXA15,16..ATM199709

MATSUSHITA

main84540-16050iSXA15,16..ATM199602-199709

main84540-20200iSXA10,11..ATM199511

89413ASENSOR, TRANSMISSION REVOLUTION

main89413-32010iSXA1#..ATM199601

sub89413-32011

89437COVER, SENSOR

main89437-42010iSXA1#199709

89465SENSOR, OXYGEN

main89465-20420iSXA1#199511-199709

NO.2

main89465-20430iSXA1#199709

NO.2

main89465-49065iSXA1#199709

NO.1

main89465-80008iSXA1#199511-199709

NO.1

89466GASKET, OXYGEN SENSOR

main89466-20020iSXA1#199511

89467ASENSOR, WIDE RANGE AIR FUEL RATIO

main89467-41020iSXA1#199709-199906

sub89467-41021

main89467-42030iSXA1#199906-200008

9017908059

main90179-08059

9030111008

main90301-11008

9043018008

main90430-18008

9095001060

main90950-01060

9161160616

main91611-60616

9162660616

main91626-60616

9165140620

main91651-40620

9165140625

main91651-40625

18 parts on this diagram · 6 diagrams in section
