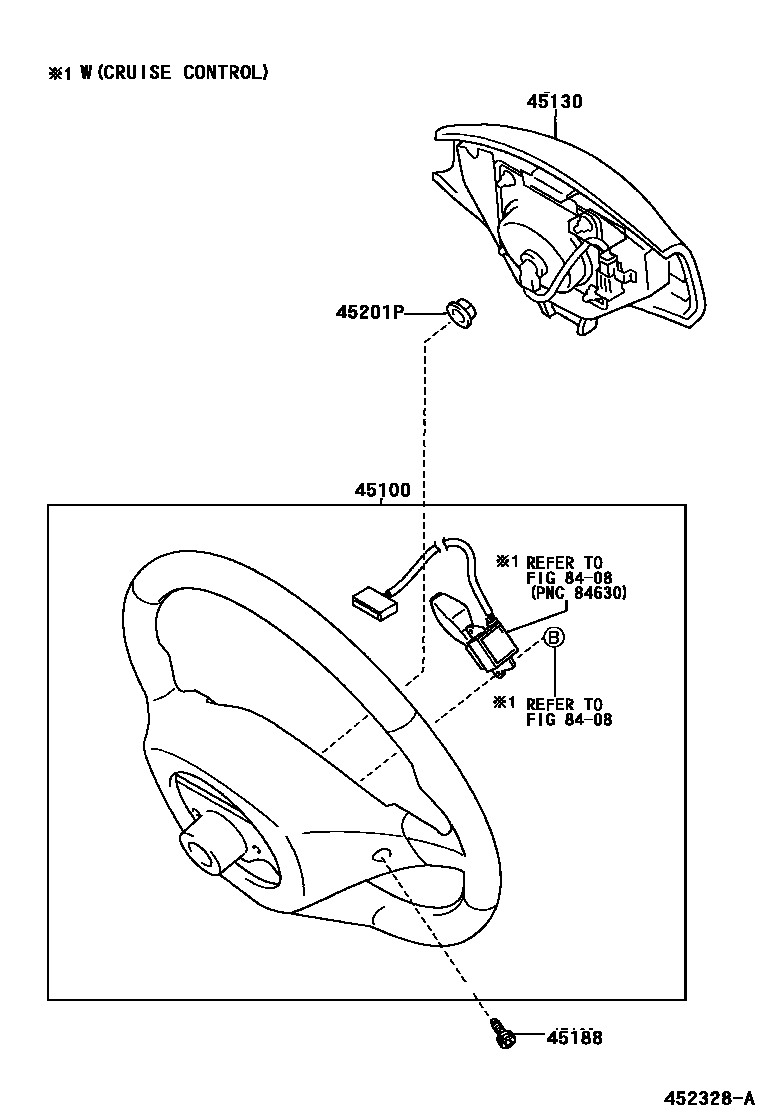

Toyota RAV4 — STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-42080-C0i200008-200307

3-SPOKE,URETHANE,BLACK,TRIM1#,4#

main45100-42090-C0i200008-200307

3-SPOKE,URETHANE,W(CRUISE CONTROL),BLACK,TRIM1#,4#

main45100-42100-C0i200008-200307

3-SPOKE,LEATHER,BLACK,TRIM1#,4#

main45100-42110-C0i200008-200307

3-SPOKE,LEATHER,W(CRUISE CONTROL),BLACK,TRIM1#,4#

main45100-42200-C0i200307-200511

3-SPOKE,URETHANE,BLACK,TRIM1#,4#

main45100-42210-C0i200307-200511

3-SPOKE,LEATHER,BLACK,TRIM1#,4#

main45100-42220-C0i200307-200511

3-SPOKE,URETHANE,W(CRUISE CONTROL),BLACK,TRIM1#,4#

main45100-42230-C0i200307-200511

3-SPOKE,LEATHER,W(CRUISE CONTROL),BLACK,TRIM1#,4#

45130BUTTON ASSY, HORN

main45130-42080-C0i200008-200307

BLACK,TRIM1#,4#

main45130-42120-C0i200307-200511

BLACK,TRIM1#,4#

main45130-42140-C0i200307-200511

W(AUDIO SWITCH),BLACK,TRIM1#,4#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2i200307-200511

L=18

main90148-60007×2i200008-200307

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071i200008-200307

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

5 parts on this diagram · 3 diagrams in section

STEERING WHEEL for Toyota RAV4

This section contains 7 genuine Toyota parts for the STEERING WHEEL system of the Toyota RAV4. Key components include: WHEEL ASSY, STEERING, WIRE SUB-ASSY, HORN BUTTON, BUTTON ASSY, HORN, SCREW, STEERING WHEEL PAD ATTACHING, NUT, STEERING WHEEL SET.
