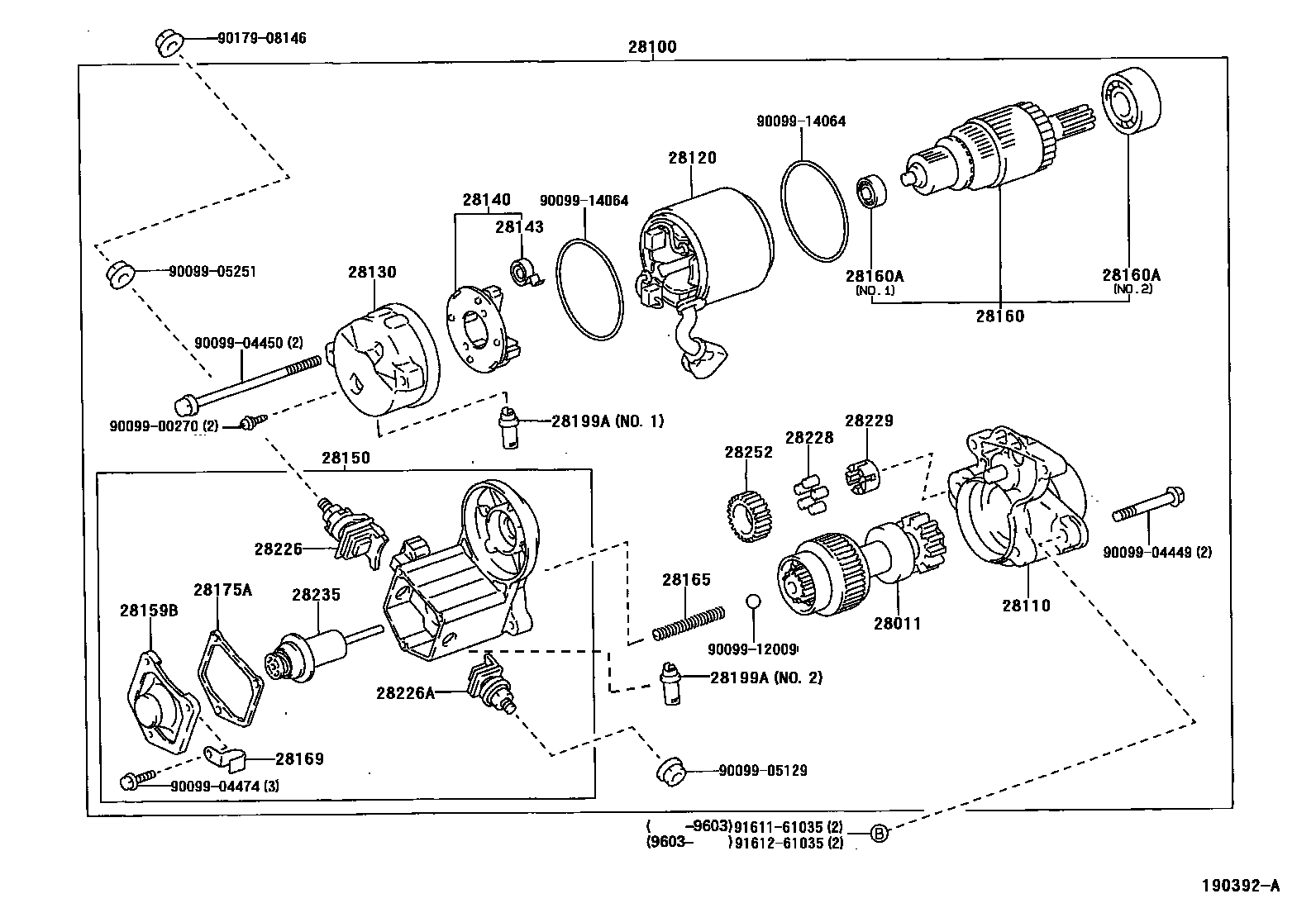

Toyota RAV4 — STARTER

0001 112V 1.2KW 0002 112V 1.4KW

28011CLUTCH SUB-ASSY, STARTER

main28011-74070i3SFE..SXA1#199511

28100STARTER ASSY

main28100-74130i3SFE..SXA1#199511-199709

12V 1.2KW

main28100-74140i3SFE..SXA1#199602-199608

12V 1.4KW,COLD SPEC

main28100-74280i3SFE..SXA15,16..ATM199709

12V 1.2KW

main28100-74290i3SFE..SXA15,16..ATM199709

12V 1.4KW

28110HOUSING ASSY, STARTER DRIVE

main28110-74100i3SFE..SXA1#199511

28120YOKE ASSY, STARTER

main28120-16180i3SFE..SXA1#199511

main28120-66040i3SFE..SXA16..ATM;3SFE..SXA11,15..HT199608

COLD SPEC OR CANADA SPEC

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-74100i3SFE..SXA10,15..SOT199712

COLD AREA OR CANADA SPEC

main28130-74120i3SFE..SXA1#199511

28140HOLDER ASSY, STARTER BRUSH

main28140-74070i3SFE..SXA16..ATM;3SFE..SXA11,15..HT199608

COLD SPEC OR CANADA SPEC

main28140-74120i3SFE..SXA1#199511

28143SPRING, STARTER BRUSH

main28143-76060×4i3SFE..SXA1#199511

main90099-17112×4i3SFE..SXA16..ATM;3SFE..SXA11,15..HT199608

COLD SPEC OR CANADA SPEC

28150SWITCH ASSY, MAGNET STARTER

main28150-74140i3SFE..SXA1#199511-199709

main28150-74280i3SFE..SXA15,16..ATM199709

28159BCOVER, MAGNET SWITCH

main28159-55050i3SFE..SXA1#199511

28160ARMATURE ASSY, STARTER

main28160-74070i3SFE..SXA16..ATM;3SFE..SXA11,15..HT199608

COLD SPEC OR CANADA SPEC

main28160-76060i3SFE..SXA1#199511

28160ABEARING, STARTER ARMATURE

main90099-10196i3SFE..SXA1#199511

NO.1

main90099-10197i3SFE..SXA1#199511

NO.2

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-74070i3SFE..SXA1#199511

28169CLAMP, STARTER MOTOR LEAD WIRE

main28169-55050i3SFE..SXA1#199511-199709

28175AGASKET, MAGNET SWITCH COVER

main28175-55050i3SFE..SXA1#199511

28199APROTECTOR, DUST STARTER

main28199-74110i3SFE..SXA1#199511

NO.1

main28199-74280i3SFE..SXA15,16..ATM199709

NO.2

28226STARTER KIT, BATTERY TERMINAL

main28226-55050i3SFE..SXA1#199511

sub28226-64370

28226ASTARTER KIT, MOTOR TERMINAL

main28226-74070i3SFE..SXA1#199511

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040×5i3SFE..SXA1#199511

28229RETAINER, STARTER IDLE GEAR

main28229-74070i3SFE..SXA1#199511

28235PLUNGER, MAGNET SWITCH

main28235-74130i3SFE..SXA1#199511

28252GEAR, STARTER IDLE

main28254-74070i3SFE..SXA1#199511

9009900270

main90099-00270

9009904449

main90099-04449

9009904450

main90099-04450

9009904474

main90099-04474

9009905129

main90099-05129

9009905251

main90099-05251

9009912009

main90099-12009

9009914064

main90099-14064

9017908146

main90179-08146

9161161035

main91611-61035

9161261035

main91612-61035

32 parts on this diagram · 2 diagrams in section
