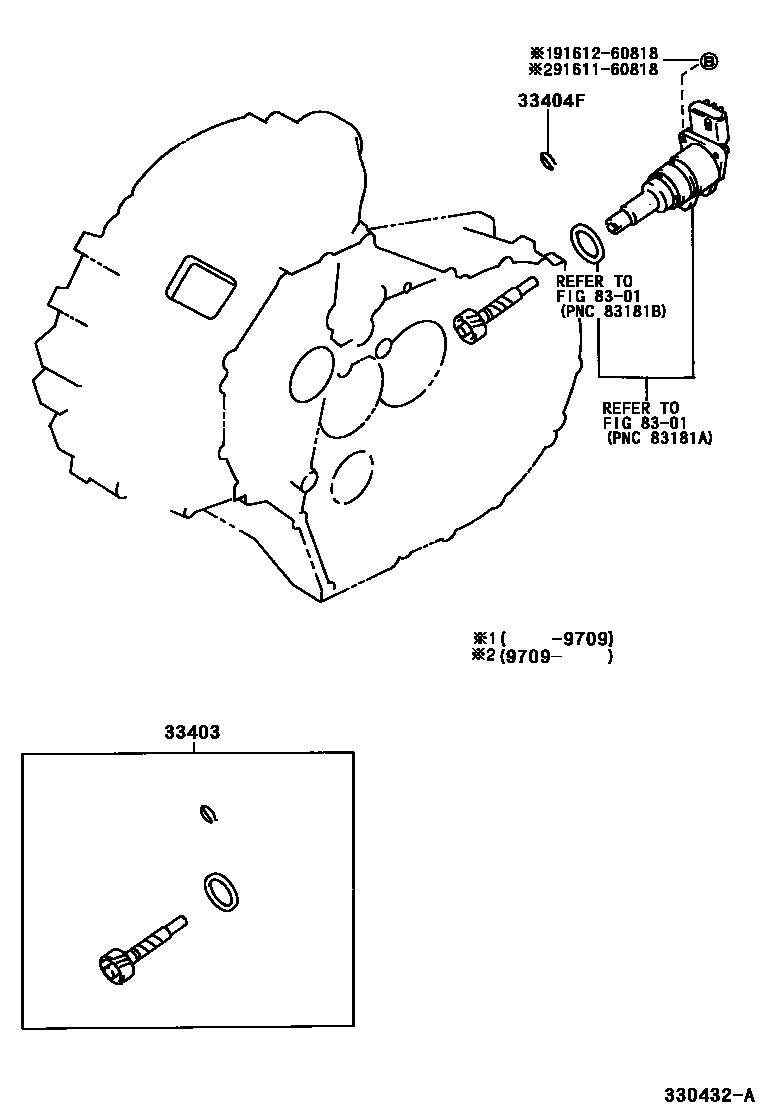

Toyota RAV4 — SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-49045i199511

N=26,MARK 26:35

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005i199511

8301METER

→ Go to FIG 83-01

9161160818

main91611-60818

9161260818

main91612-60818

5 parts on this diagram · 1 diagram in section

SPEEDOMETER DRIVEN GEAR (MTM) for Toyota RAV4

This section contains 5 genuine Toyota parts for the SPEEDOMETER DRIVEN GEAR (MTM) system of the Toyota RAV4. Key components include: GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM), CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE), METER.
