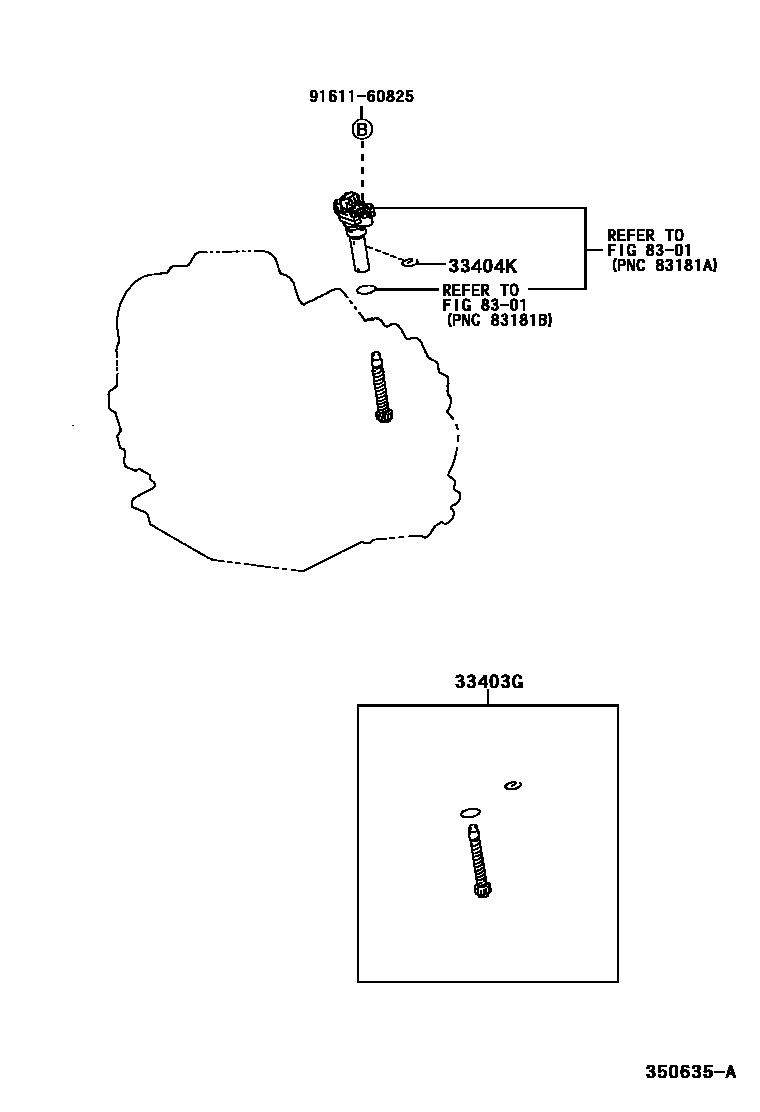

Toyota RAV4 — SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-49035i199511-200008

N=24,MARK 24:33

main33403-49055i199602-200008

N=20,MARK 20:27

main33403-49065i199608-200008

N=25,MARK 25:33,W(ALUMINUM WHEEL)

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005i199511

8301METER

→ Go to FIG 83-01

9161160825

main91611-60825

4 parts on this diagram · 2 diagrams in section

SPEEDOMETER DRIVEN GEAR (ATM) for Toyota RAV4

This section contains 5 genuine Toyota parts for the SPEEDOMETER DRIVEN GEAR (ATM) system of the Toyota RAV4. Key components include: GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM), CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE), METER.
