Toyota RAV4 — SPEAKER

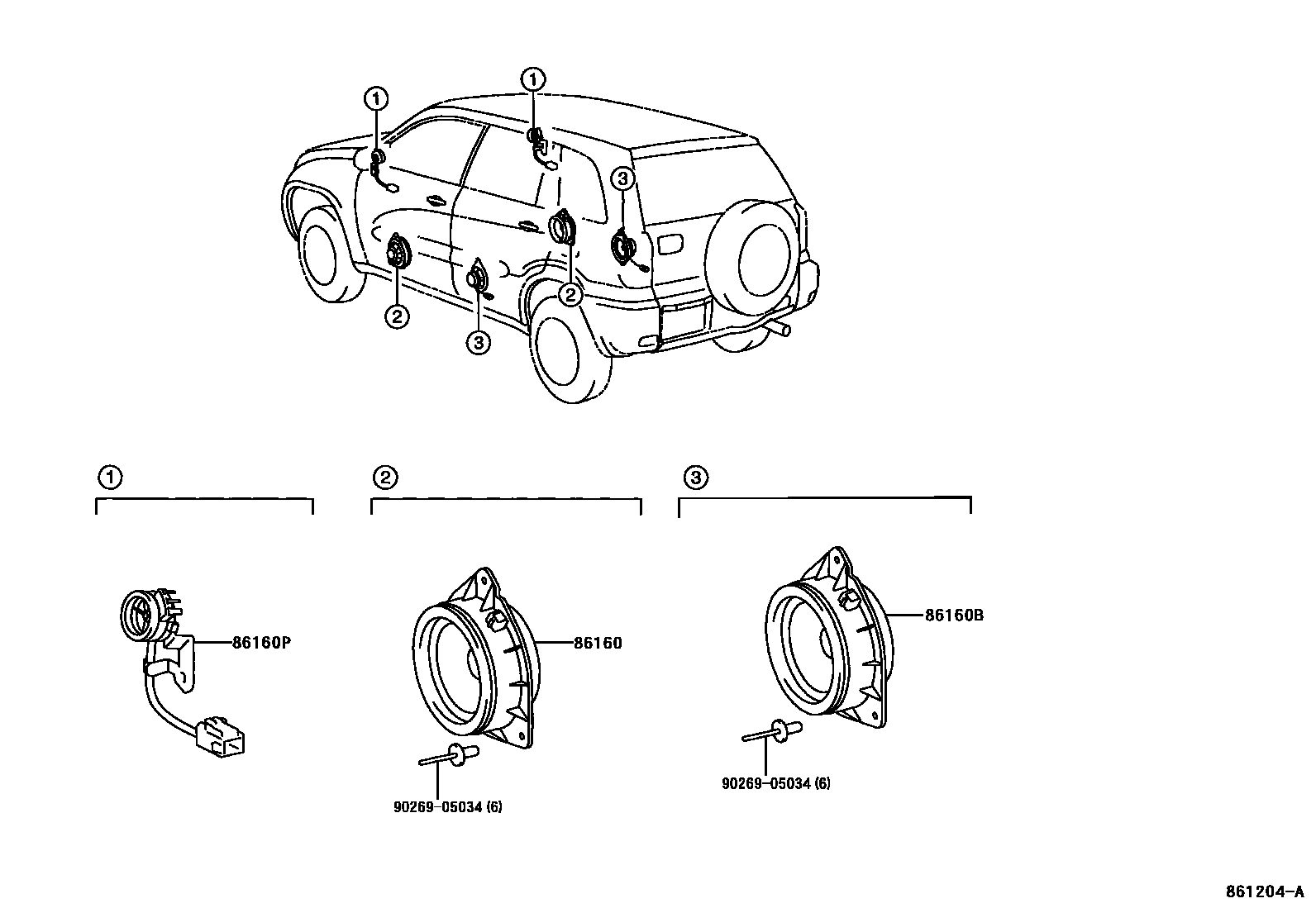

Parts diagram

86160SPEAKER ASSY, FRONT NO.1

main86160-0W810×2i200307

W(JBL PREMIUM SOUND SYSTEM)

main86160-42070×2i200008-200307

main86160-42110×2i200407

86160BSPEAKER ASSY, REAR

main86160-0W820×2i200307

W(JBL PREMIUM SOUND SYSTEM)

main86160-42070×2i200008-200307

main86160-42110×2i200407

86160PSPEAKER ASSY, FRONT NO.2

main86160-0W850i200307

W(JBL PREMIUM SOUND SYSTEM),RH

main86160-0W860i200307

W(JBL PREMIUM SOUND SYSTEM),LH

main86160-42090i200008-200307

RH

main86160-42100i200008-200307

LH

9026905034

main90269-05034

4 parts on this diagram · 1 diagram in section
