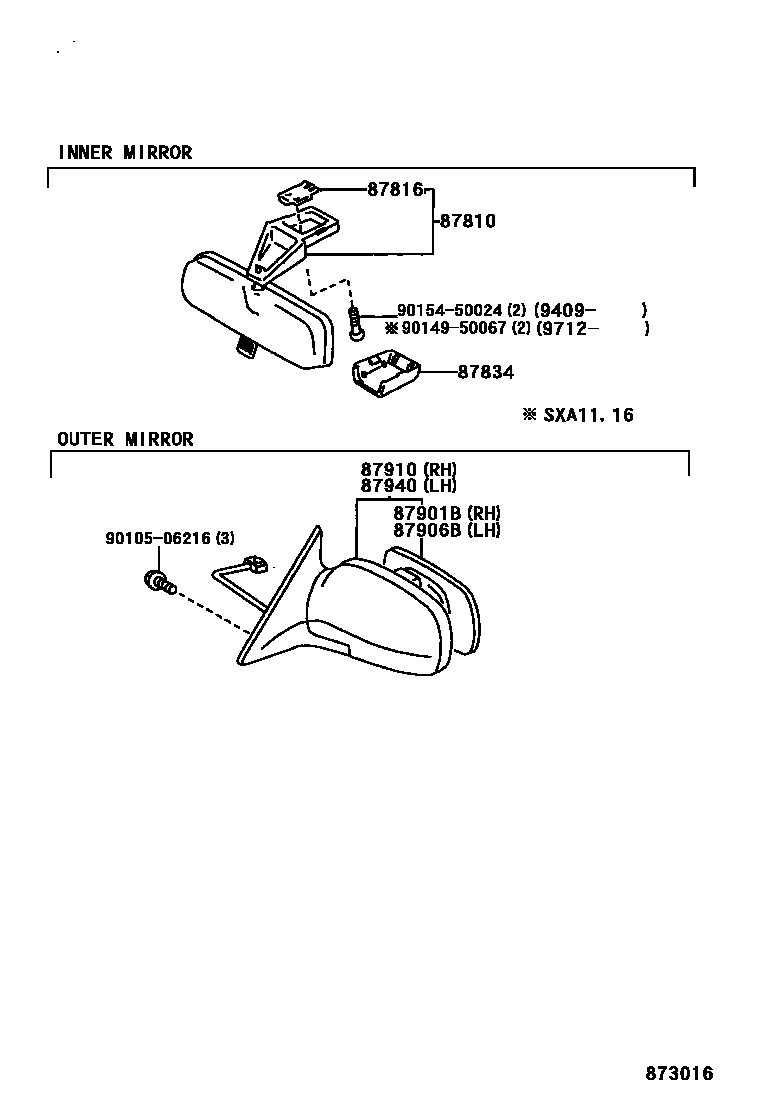

Toyota RAV4 — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-01040-B3iSXA1#199709-200008

LT.GRAY,TRIM1#

main87810-12240-B2iSXA1#199511-199709

LT.BLUISH GRAY,TRIM1#,ICHIKO

sub87810-12260

sub87810-12270

main87810-12240-B3iSXA1#199709-200008

LT.GRAY,TRIM1#,ICHIKO

sub87810-12260

sub87810-12270

87816SPRING, INNER REAR VIEW MIRROR

main74372-01020iSXA1#199511-200008

DONNELLY

main74372-30030iSXA1#199511-200008

ICHIKO

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-12030-B0iSXA1#199511-199709

LT.BLUISH GRAY,TRIM1#

main87834-12030-B4iSXA1#199709-200008

LT.GRAY,TRIM1#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-42150iSXA10,15199511-199709

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-42180iSXA10,15199511-199709

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-42150iSXA10,15199511

main87910-42160iSXA11,16199511

main87910-42170iSXA10,15199511-199709

ELECTRIC REMOTE CONTROL MIRROR

main87910-42171iSXA10,15199709

W(ELECTRIC REMOTE CONTROL MIRROR)

main87910-42180iSXA11,16199511-199709

ELECTRIC REMOTE CONTROL MIRROR

main87910-42181iSXA11,16199709

W(ELECTRIC REMOTE CONTROL MIRROR)

main87910-42410-A0iSXA10,15199709-199808

W(ELECTRIC REMOTE CONTROL MIRROR),WHITE,K60 ,056

main87910-42410-B0iSXA10,15199709-199808

W(ELECTRIC REMOTE CONTROL MIRROR),SILVER ME,K61 ,199

main87910-42410-B1iSXA10,15199808

W(ELECTRIC REMOTE CONTROL MIRROR),SILVER GR.SF.,K98 ,1B9

main87910-42410-C0iSXA10,15199709

W(ELECTRIC REMOTE CONTROL MIRROR),BLACK,K62 ,202

main87910-42410-D0iSXA10,15199709

W(ELECTRIC REMOTE CONTROL MIRROR),RED,K65 ,3L5

main87910-42410-E0iSXA10,15199808

W(ELECTRIC REMOTE CONTROL MIRROR),LT.BROWN ME,KA1 ,4J6

main87910-42410-G0iSXA10,15199709-199808

W(ELECTRIC REMOTE CONTROL MIRROR),DK.GREEN M.M.,K68 ,6P3

main87910-42410-H0iSXA10,15199808

W(ELECTRIC REMOTE CONTROL MIRROR),DK.TURQUOISE MC.,K95 ,760

main87910-42410-J0iSXA10,15199709-199808

W(ELECTRIC REMOTE CONTROL MIRROR),DK.BLUE MM.GR.,K70 ,8K5

main87910-42410-J1iSXA10,15199709

W(ELECTRIC REMOTE CONTROL MIRROR),BLUE M.M.,K71 ,8L5

main87910-42500-A0iSXA11,16199709

W(ELECTRIC REMOTE CONTROL MIRROR),WHITE,K60 ,056

main87910-42500-A1iSXA11,16199808-199907

L PACKAGE,WHITE PM,K18

main87910-42500-B0iSXA11,16199709-199808

W(ELECTRIC REMOTE CONTROL MIRROR),SILVER ME,K61 ,199

main87910-42500-B1iSXA11,16199808-200008

W(ELECTRIC REMOTE CONTROL MIRROR),SILVER GR.SF,1B9 ,K98

main87910-42500-C0iSXA11,16199808-199907

L PACKAGE,BLACK,KA3

main87910-42500-D0iSXA11,16199709-199808

W(ELECTRIC REMOTE CONTROL MIRROR),WINE RED MC,3J8 ,K64

main87910-42500-D1iSXA11,16199808-200008

W(ELECTRIC REMOTE CONTROL MIRROR),WINE RED MC,3M8 ,KA0

main87910-42500-E0iSXA11,16199709

W(ELECTRIC REMOTE CONTROL MIRROR),LT.BROWN ME,K66 ,4J6

main87910-42500-G0iSXA11,16199709

W(ELECTRIC REMOTE CONTROL MIRROR),DK.GREEN M.M.,K68 ,6P3

main87910-42500-J0iSXA11,16199709-199808

W(ELECTRIC REMOTE CONTROL MIRROR),DK.BLUE MM.GR.,K70 ,8K5

main87910-42500-J1iSXA11,16199808-200008

W(ELECTRIC REMOTE CONTROL MIRROR),BLUE M.M.,K71 ,8L5

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-42180iSXA10,15199511

main87940-42190iSXA11,16199511

main87940-42200iSXA10,15199511-199709

ELECTRIC REMOTE CONTROL MIRROR

main87940-42201iSXA10,15199709

W(ELECTRIC REMOTE CONTROL MIRROR)

main87940-42210iSXA11,16199511-199709

ELECTRIC REMOTE CONTROL MIRROR

main87940-42211iSXA11,16199709

W(ELECTRIC REMOTE CONTROL MIRROR)

main87940-42390-A0iSXA10,15199709-199808

W(ELECTRIC REMOTE CONTROL MIRROR),WHITE,K60 ,056

main87940-42390-B0iSXA10,15199709-199808

W(ELECTRIC REMOTE CONTROL MIRROR),SILVER ME,K61 ,199

main87940-42390-B1iSXA10,15199808

W(ELECTRIC REMOTE CONTROL MIRROR),SILVER GR.SF.,K98 ,1B9

main87940-42390-C0iSXA10,15199709

W(ELECTRIC REMOTE CONTROL MIRROR),BLACK,K62 ,202

main87940-42390-D0iSXA10,15199709

W(ELECTRIC REMOTE CONTROL MIRROR),RED,K65 ,3L5

main87940-42390-E0iSXA10,15199808

W(ELECTRIC REMOTE CONTROL MIRROR),LT.BROWN ME,KA1 ,4J6

main87940-42390-G0iSXA10,15199808

W(ELECTRIC REMOTE CONTROL MIRROR),DK.GREEN M.M.,KA2 ,6P3

main87940-42390-H0iSXA10,15199808

W(ELECTRIC REMOTE CONTROL MIRROR),DK.TURQUOISE MC.,K95 ,760

main87940-42390-J0iSXA10,15199709-199808

W(ELECTRIC REMOTE CONTROL MIRROR),DK.BLUE MM.GR.,K70 ,8K5

main87940-42390-J1iSXA10,15199709

W(ELECTRIC REMOTE CONTROL MIRROR),BLUE M.M.,K71 ,8L5

main87940-42470-A0iSXA11,16199709

W(ELECTRIC REMOTE CONTROL MIRROR),WHITE,K60 ,056

main87940-42470-A1iSXA11,16199808-199907

L PACKAGE,WHITE PM,K18

main87940-42470-B0iSXA11,16199709-199808

W(ELECTRIC REMOTE CONTROL MIRROR),SILVER ME,K61 ,199

main87940-42470-B1iSXA11,16199808-200008

W(ELECTRIC REMOTE CONTROL MIRROR),SILVER GR.SF,1B9 ,K98

main87940-42470-C0iSXA11,16199709

W(ELECTRIC REMOTE CONTROL MIRROR),BLACK,K62 ,202

main87940-42470-D0iSXA11,16199709-199808

W(ELECTRIC REMOTE CONTROL MIRROR),WINE RED MC,3J8 ,K64

main87940-42470-D1iSXA11,16199808-200008

W(ELECTRIC REMOTE CONTROL MIRROR),WINE RED MC,3M8 ,KA0

main87940-42470-E0iSXA11,16199709

W(ELECTRIC REMOTE CONTROL MIRROR),LT.BROWN ME,K66 ,4J6

main87940-42470-G0iSXA11,16199908-200007

L PACKAGE,DK.GREEN M.M.,KD4

main87940-42470-J0iSXA11,16199709-199808

W(ELECTRIC REMOTE CONTROL MIRROR),DK.BLUE MM.GR.,K70 ,8K5

main87940-42470-J1iSXA11,16199808-200008

W(ELECTRIC REMOTE CONTROL MIRROR),BLUE M.M.,K71 ,8L5

9010506216

main90105-06216

9014950067

main90149-50067

9015450024

main90154-50024

10 parts on this diagram · 1 diagram in section
