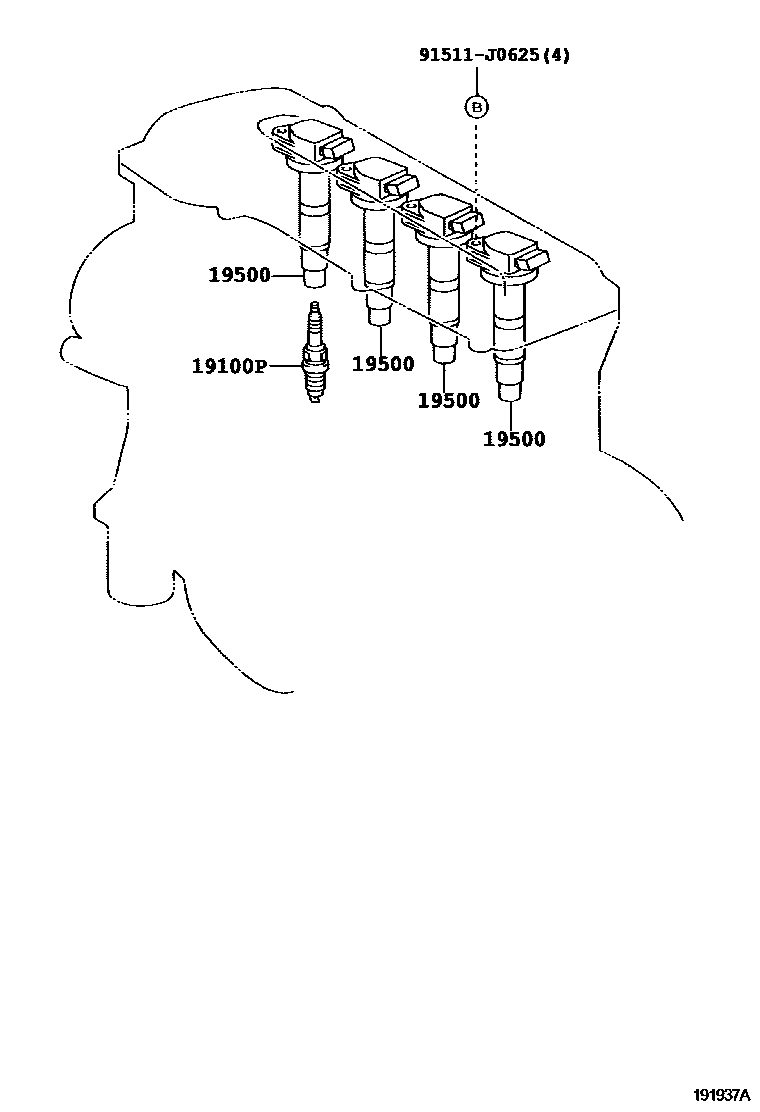

Toyota RAV4 — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01210×4i200008-200205

SK20R11

main90919-01237×4i200205-200307

SK20R11

19500COIL ASSY, IGNITION

main90919-02243×4i200102-200307

MARK 90919-02243

main90919-02244×4i200307-200511

MARK 90919-02244

91511J0625

main91511-J0625

3 parts on this diagram · 1 diagram in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota RAV4

This section contains 3 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota RAV4. Key components include: PLUG, SPARK, COIL ASSY, IGNITION.
