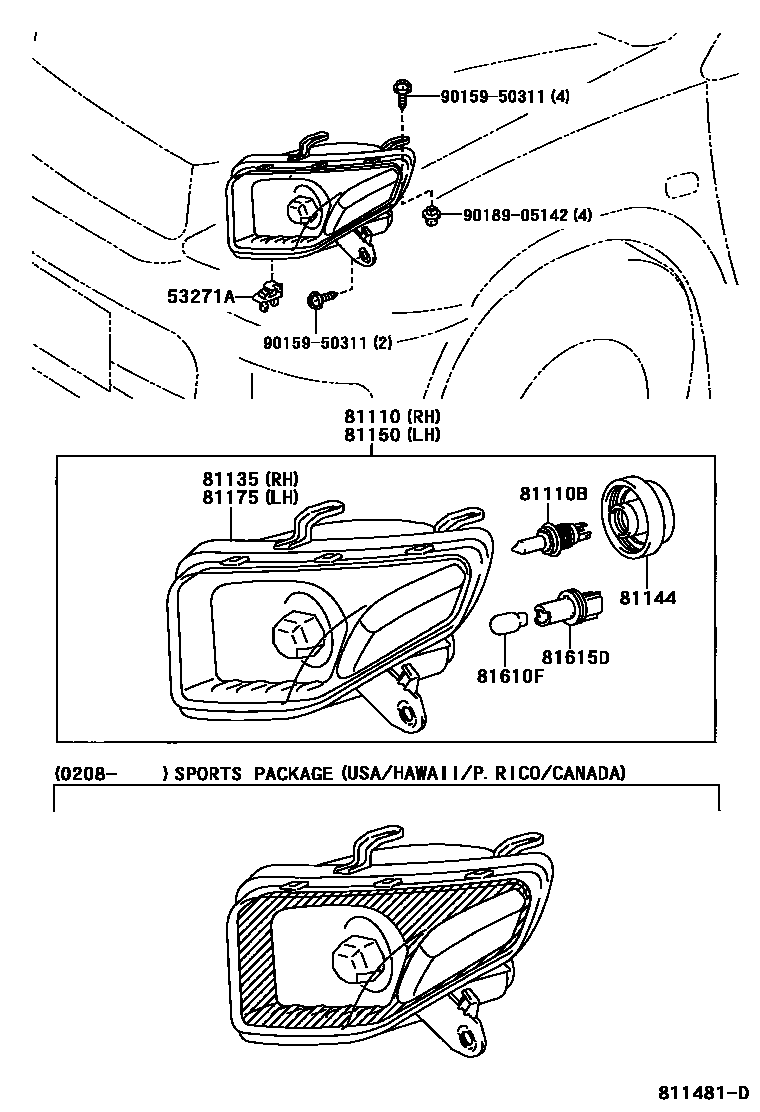

Toyota RAV4 — HEADLAMP

53271ABRACKET, HEADLAMP MOUNTING

main53271-44010×2i200008-200307

81110HEADLAMP ASSY, RH

main81110-42190i200008-200307

main81110-42220i200208-200307

SPORTS PACKAGE(USA/HAWAII/P.RICO/CANADA),REFER TO ILLUSTRATION

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13055×2i200008-200307

12V 60/55W,HALOGEN

main90981-13058×2i200307-200511

12V 60/55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81105-42280i200307

main81130-42190i200008-200307

main81130-42220i200208-200307

SPORTS PACKAGE(USA/HAWAII/P.RICO/CANADA),REFER TO ILLUSTRATION

81144COVER, HEADLAMP, NO.1

main81139-37110×2i200008-200307

main81139-52010×2i200309

81150HEADLAMP ASSY, LH

main81150-42190i200008-200307

main81150-42220i200208-200307

SPORTS PACKAGE(USA/HAWAII/P.RICO/CANADA),REFER TO ILLUSTRATION

81175UNIT ASSY, HEADLAMP, LH

main81106-42280i200307

main81170-42190i200008-200307

main81170-42220i200208-200307

SPORTS PACKAGE(USA/HAWAII/P.RICO/CANADA),REFER TO ILLUSTRATION

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2i200008-200307

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60004×2i200008-200307

9015950311

main90159-50311

9018905142

main90189-05142

11 parts on this diagram · 3 diagrams in section

HEADLAMP for Toyota RAV4

This section contains 16 genuine Toyota parts for the HEADLAMP system of the Toyota RAV4. Key components include: BRACKET, HEADLAMP MOUNTING, HOOD & FRONT FENDER, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), UNIT ASSY, HEADLAMP, RH.
