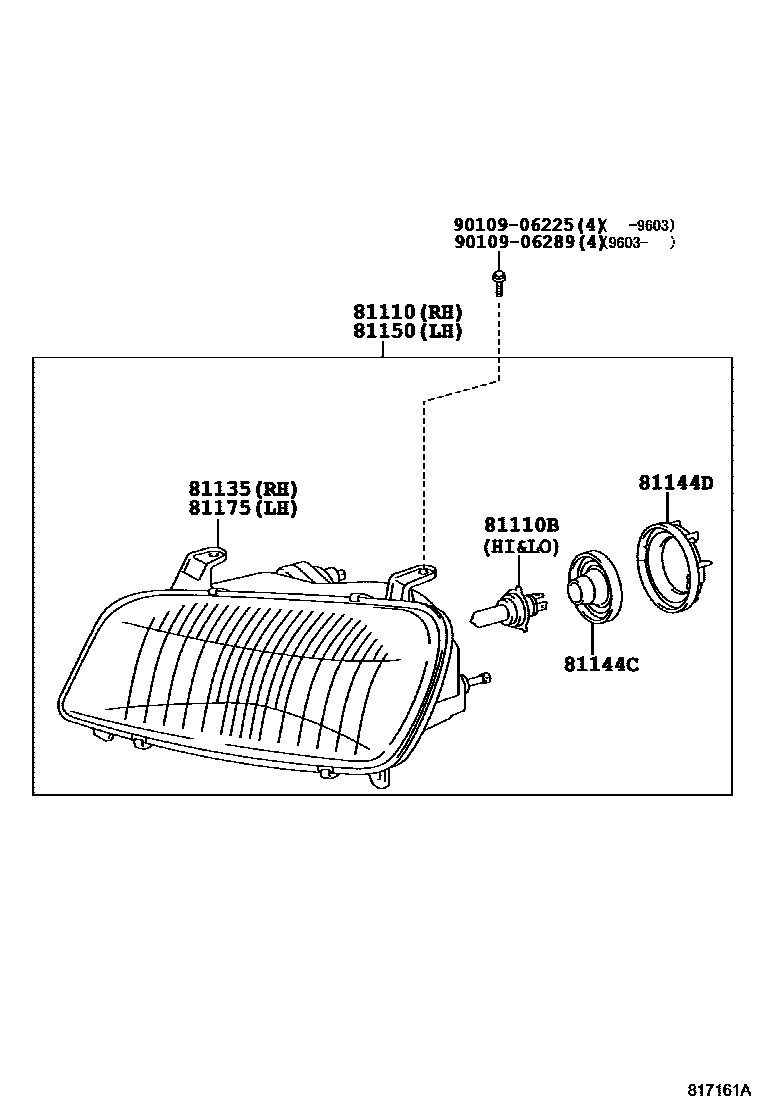

Toyota RAV4 — HEADLAMP

81110HEADLAMP ASSY, RH

main81110-42060i199511-199709

main81110-42090i199709

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81040×2i199709

12V 51W

main90981-13058×2i199511-199709

12V 60/55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81105-42060i199511-199709

main81105-42090i199709

81144CCOVER, HEADLAMP SOCKET

main81139-1E310×2i199511-199709

81144DCAP, HEADLAMP LOCKING

main81112-1E310×2i199511-199709

81150HEADLAMP ASSY, LH

main81150-42060i199511-199709

main81150-42090i199709

81175UNIT ASSY, HEADLAMP, LH

main81106-42060i199511-199709

main81106-42090i199709

9010906225

main90109-06225

9010906289

main90109-06289

9 parts on this diagram · 2 diagrams in section

HEADLAMP for Toyota RAV4

This section contains 10 genuine Toyota parts for the HEADLAMP system of the Toyota RAV4. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2), UNIT ASSY, HEADLAMP, RH, COVER, HEADLAMP SOCKET.
