Toyota RAV4 — FRONT DOOR PANEL & GLASS

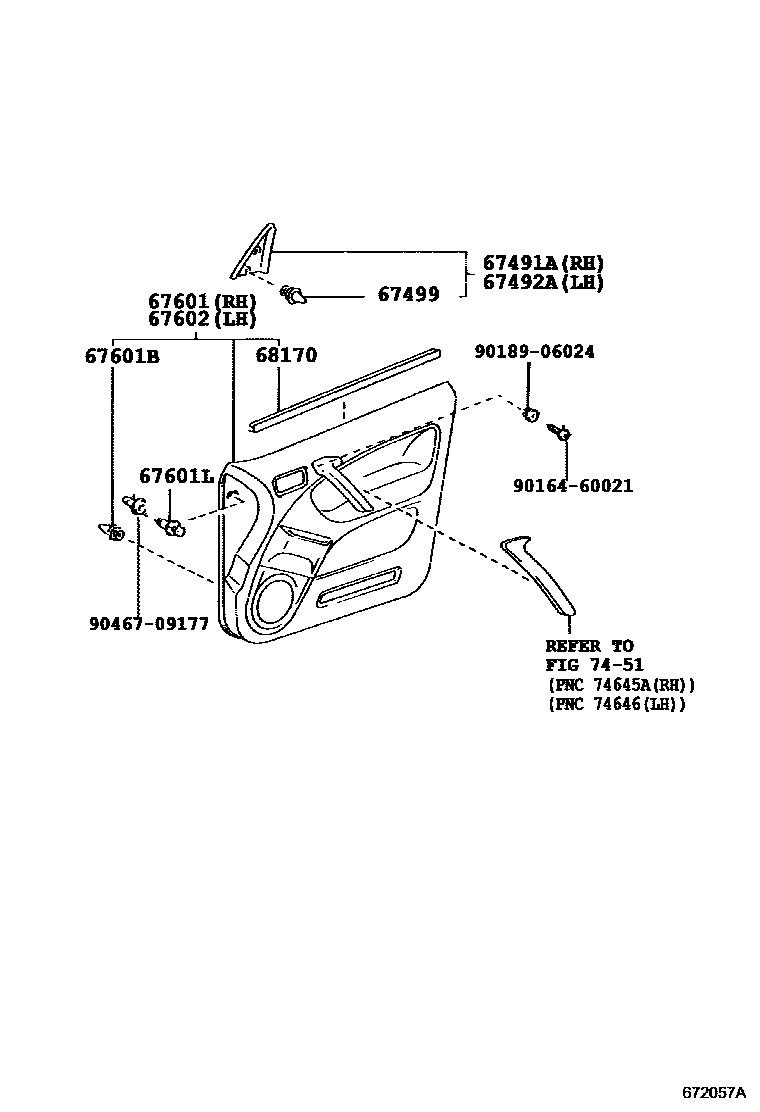

Parts diagram
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
main67491-42030i200307
main67491-42040i200307
W(TWEETER SPEAKER)
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
main67492-42030i200008-200307
main67492-42040i200008-200307
W(TWEETER SPEAKER)
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
main67771-17020×4i200307
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-42530-B1i200208-200307
DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),BLUE GRAY,TRIM1#
main67610-42550-B0i200008-200307
DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),BLUE GRAY,TRIM1#
main67610-42550-E0i200008-200307
DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),FAWN,TRIM4#
main67610-42560-B0i200008-200307
DOOR TRIM=TYPE B-*104,BLUE GRAY,TRIM1#
main67610-42560-E0i200008-200307
DOOR TRIM=TYPE B-*104,FAWN,TRIM4#
main67610-42590-B1i200008-200307
DOOR TRIM=TYPE A-*104,BLUE GRAY,TRIM1#
main67610-42620-B0i200307-200311
DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#
main67610-42621-B0i200311-200511
DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#
main67610-42630-B2i200307-200311
DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#
main67610-42630-E1i200307-200311
DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),FAWN,TRIM4#
main67610-42631-B2i200311-200511
DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#
main67610-42631-E1i200311-200511
DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),FAWN,TRIM4#
main67610-42640-B2i200307-200311
DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM1#
main67610-42640-E1i200307-200311
DOOR TRIM=TYPE B-*104,FAWN,TRIM4#
main67610-42641-B2i200311-200511
DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM1#
main67610-42641-E1i200311-200511
DOOR TRIM=TYPE B-*104,FAWN,TRIM4#
main67610-42680-B0i200307-200511
DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#
main67610-42680-E0i200307-200511
DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),FAWN,TRIM4#
main67610-42690-B0i200307-200511
DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
main90467-09206×14i200307-200511
67601LCLIP(FOR FRONT DOOR TRIM BOARD)
main90467-06133-B7×2i200008-200307
BLUE GRAY,TRIM1#
main90467-06133-B8×2i200307-200511
DK.GRAY,TRIM1#
main90467-06133-E5×2i200008-200307
FAWN,TRIM4#
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67620-42530-B1i200208-200307
DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),BLUE GRAY,TRIM1#
main67620-42550-B0i200008-200307
DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),BLUE GRAY,TRIM1#
main67620-42550-E0i200008-200307
DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),FAWN,TRIM4#
main67620-42560-B0i200008-200307
DOOR TRIM=TYPE B-*104,BLUE GRAY,TRIM1#
main67620-42560-E0i200008-200307
DOOR TRIM=TYPE B-*104,FAWN,TRIM4#
main67620-42590-B1i200008-200307
DOOR TRIM=TYPE A-*104,BLUE GRAY,TRIM1#
main67620-42620-B0i200307-200311
DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#
main67620-42621-B0i200311-200511
DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#
main67620-42630-B2i200307-200311
DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#
main67620-42630-E1i200307-200311
DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),FAWN,TRIM4#
main67620-42631-B2i200311-200511
DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#
main67620-42631-E1i200311-200511
DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),FAWN,TRIM4#
main67620-42640-B2i200307-200311
DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM1#
main67620-42640-E1i200307-200311
DOOR TRIM=TYPE B-*104,FAWN,TRIM4#
main67620-42641-B2i200311-200511
DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM1#
main67620-42641-E1i200311-200511
DOOR TRIM=TYPE B-*104,FAWN,TRIM4#
main67620-42680-B0i200307-200511
DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#
main67620-42680-E0i200307-200511
DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),FAWN,TRIM4#
main67620-42690-B0i200307-200511
DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
main68171-42040i200307-200511
RH
main68172-42040i200307-200511
LH
7451ARMREST & VISOR
→ Go to FIG 74-51
9016460021
main90164-60021
9018906024
main90189-06024
9046709177
main90467-09177

12 parts on this diagram · 5 diagrams in section

FRONT DOOR PANEL & GLASS for Toyota RAV4

This section contains 49 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota RAV4. Key components include: WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH, WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH, PANEL SUB-ASSY, FRONT DOOR, RH, PANEL SUB-ASSY, FRONT DOOR, LH, PANEL, FRONT DOOR, OUTER RH.
