Toyota RAV4 — EXHAUST GAS RECIRCULATION SYSTEM

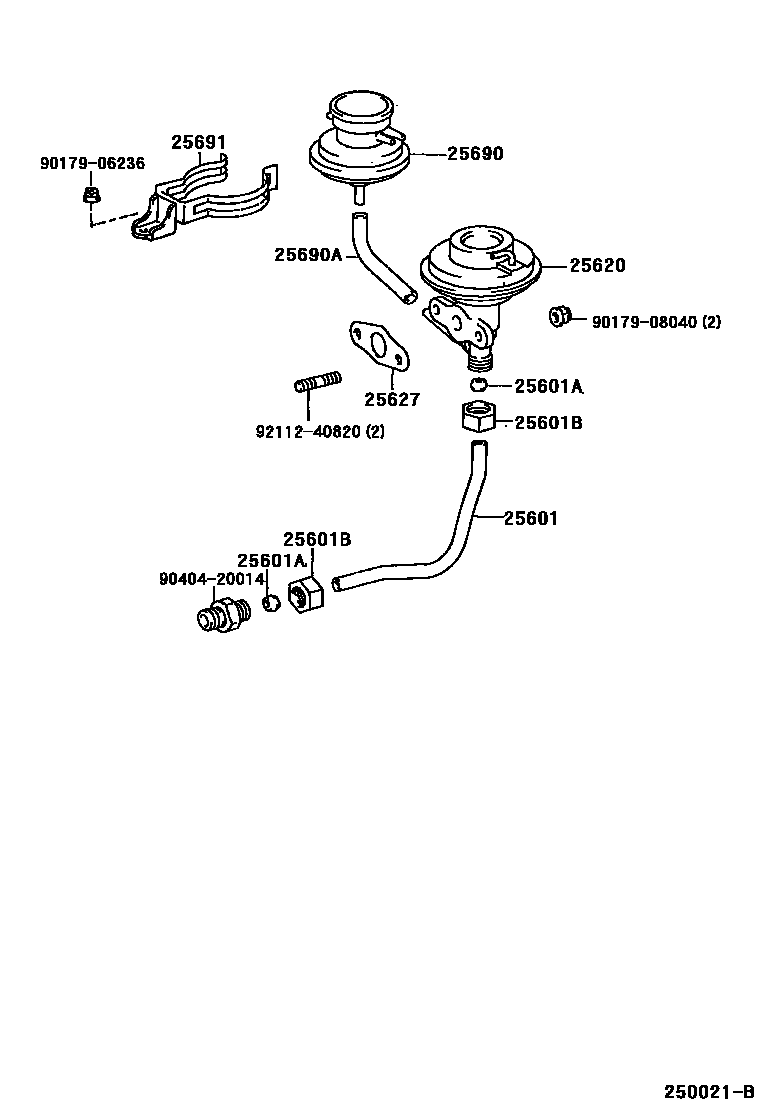

Parts diagram

25601PIPE SUB-ASSY, EGR, NO.1

main25611-74050i199511-199709

main25611-74060i199709

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-12042×2i199511-199709

25601BNUT, UNION, EGR PIPE, NO.1

main90402-20073×2i199511-199709

25620VALVE ASSY, EGR

main25620-74300i199511-199709

main25620-74310i199511-199709

main25620-74320i199709

main25620-74330i199709

25627GASKET, EGR VALVE

main25627-74011i199511

25690MODULATOR ASSY, EGR VACUUM

main25870-74090i199511

25690AHOSE(FOR EGR VACUUM MODULATOR)

main25695-74040i199511

25691BRACKET, EGR VACUUM MODULATOR

main25691-74070i199511-199709

main25691-74090i199709

9017906236

main90179-06236

9017908040

main90179-08040

9040420014

main90404-20014

9211240820

main92112-40820

12 parts on this diagram · 2 diagrams in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota RAV4

This section contains 17 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota RAV4. Key components include: PIPE SUB-ASSY, EGR, NO.1, SLEEVE, BALL, EGR PIPE, NO.1, NUT, UNION, EGR PIPE, NO.1, UNION(FOR EGR PIPE, NO.1), VALVE ASSY, EGR.
