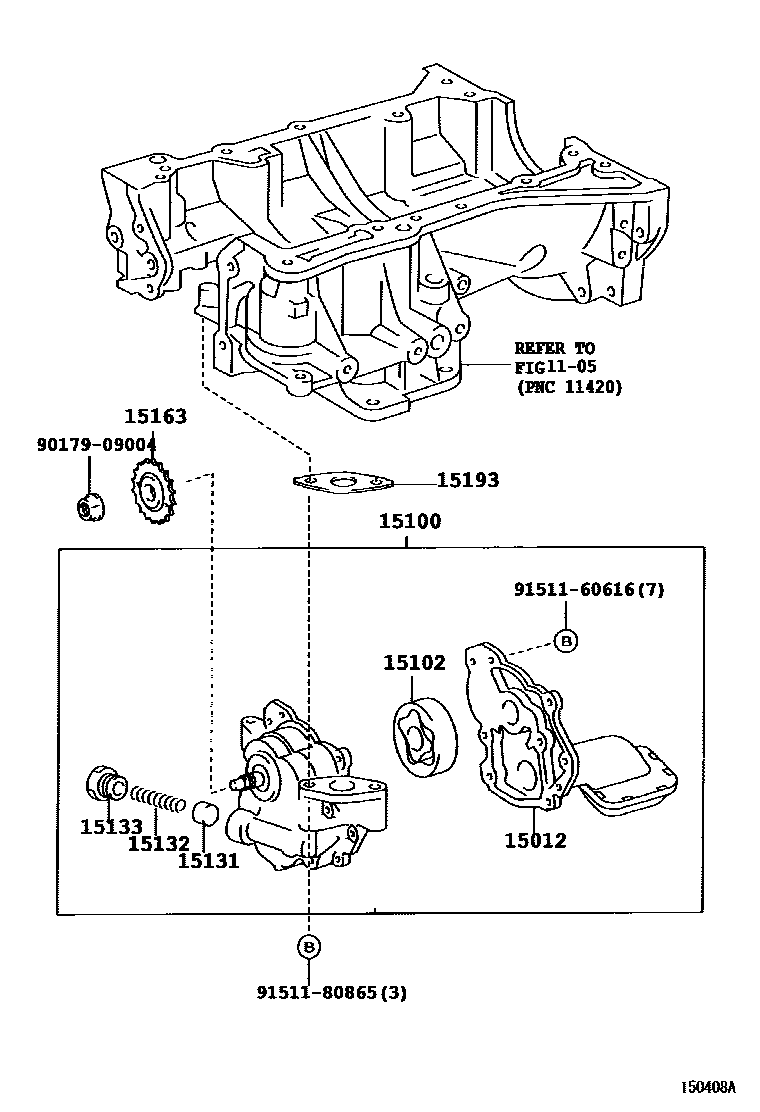

Toyota RAV4 — ENGINE OIL PUMP

1105CYLINDER BLOCK

→ Go to FIG 11-05

15012COVER SUB-ASSY, OIL PUMP

main15012-28030i200008-200307

15100PUMP ASSY, OIL

main15100-28020i200307

main15100-28030i200008-200307

15102ROTOR SET, OIL PUMP

main15102-28030i200008-200307

15131VALVE, OIL PUMP RELIEF

main15131-46040i200008-200307

15132SPRING, OIL PUMP RELIEF VALVE

main15132-28020i200008-200307

main15132-46020i200502

15133PLUG, OIL PUMP RELIEF VALVE

main15133-28020i200008-200307

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-28010i200008-200307

15193GASKET, OIL PUMP

main15193-28010i200008-200307

9017909004

main90179-09004

9151160616

main91511-60616

9151180865

main91511-80865

12 parts on this diagram · 2 diagrams in section

ENGINE OIL PUMP for Toyota RAV4

This section contains 16 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota RAV4. Key components include: CYLINDER BLOCK, COVER SUB-ASSY, OIL PUMP, STRAINER SET, OIL PUMP, PUMP ASSY, OIL, ROTOR SET, OIL PUMP.
