Toyota RAV4 — ELECTRONIC FUEL INJECTION SYSTEM
2211FUEL INJECTION SYSTEM
8401SWITCH & RELAY & COMPUTER
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89460SENSOR ASSY, VAPOR PRESSURE
89661COMPUTER, ENGINE CONTROL
PART NUMBER LABEL=89661-42A80
PART NUMBER LABEL=89661-42A81
PART NUMBER LABEL=89661-42B00
PART NUMBER LABEL=89661-42B01
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89669BRACKET, ENGINE CONTROL COMPUTER, NO.3
9017906216
main90179-06216
9017906264
main90179-06264
9043012005
main90430-12005
9331915010
main93319-15010

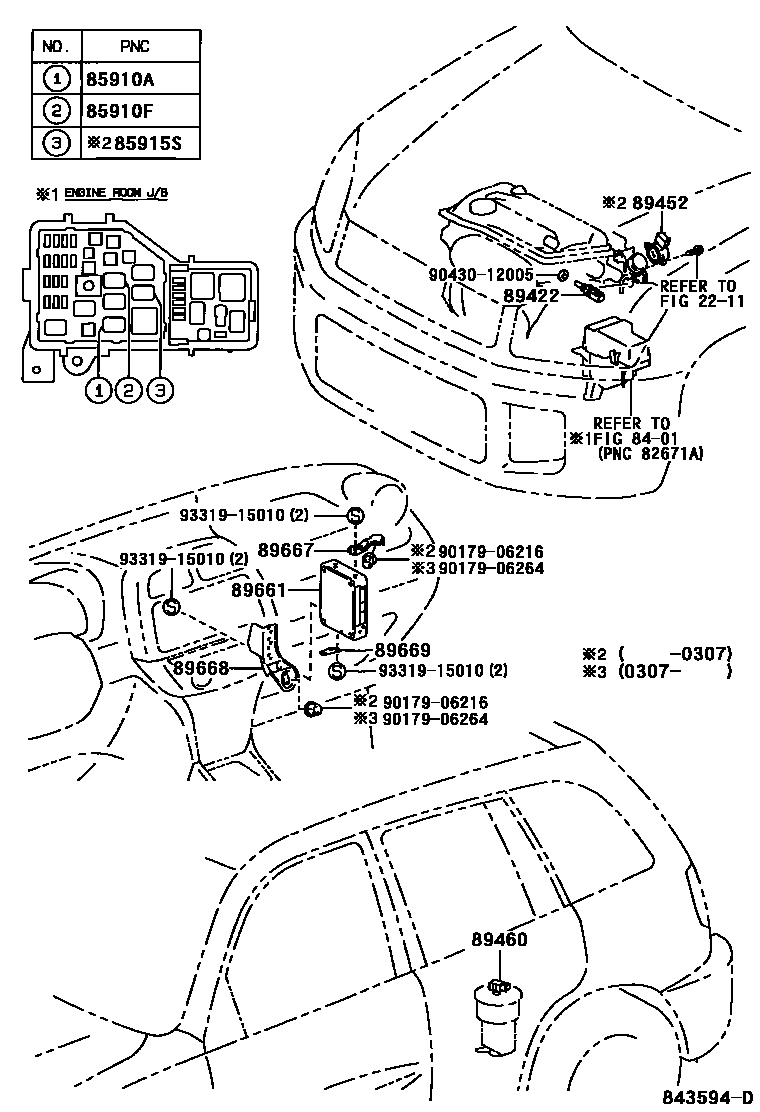

16 parts on this diagram · 1 diagram in section
ELECTRONIC FUEL INJECTION SYSTEM for Toyota RAV4
This section contains 16 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota RAV4. Key components include: FUEL INJECTION SYSTEM, SWITCH & RELAY & COMPUTER, RELAY ASSY, CIRCUIT OPENING (FOR EFI), RELAY, COMPUTER (FOR EFI), RELAY, HEATER (FOR AIR FUEL RATIO SENSOR).
