Toyota RAV4 — DISTRIBUTOR

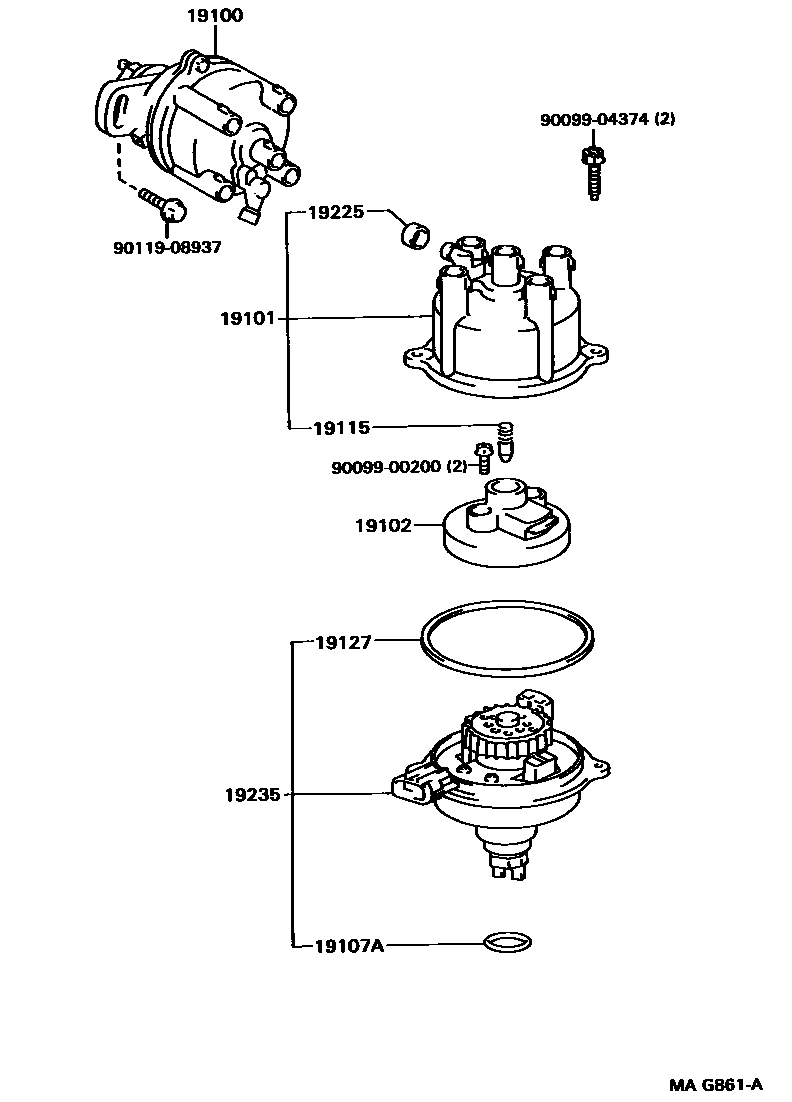

Parts diagram

19100DISTRIBUTOR ASSY

main19100-74230i199511-199709

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-74110i199511-199709

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-74040i199511-199709

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14127i199511-199709

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-88280i199511-199709

19127PACKING, DUST PROOF

main19127-74040i199511-199709

19225CAP, RUBBER

main19225-74060i199511-199709

19235HOUSING, DISTRIBUTOR

main19235-74230i199511-199709

9009900200

main90099-00200

9009904374

main90099-04374

9011908937

main90119-08937

11 parts on this diagram · 1 diagram in section
