Toyota RAV4 — ARMREST & VISOR

0001 1 0002 1

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-42030-B0iSXA1#199511-199709

BLUISH GRAY,TRIM1#

main74231-42050-B1iSXA1#199709

DARK GRAY,TRIM1#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-33011-B0iSXA11,16199511-199709

BLUISH GRAY,TRIM1#

main74232-42010-B0iSXA10,15199511-199709

BLUISH GRAY,TRIM1#

main74232-42030-B1iSXA10,15199709

DARK GRAY,TRIM1#

main74232-42040-B1iSXA11,16199709

DARK GRAY,TRIM1#

74310VISOR ASSY, RH

main74310-42120-B0iSXA1#199511-199608

LT. BLUISH GRAY,TRIM1#

main74310-42121-B0iSXA1#199608-199702

LT. BLUISH GRAY,TRIM1#

main74310-42170-B0iSXA1#199702-199709

LT. BLUISH GRAY,TRIM1#

main74310-42190-B0iSXA1#199709-199908

LT. GRAY,TRIM1#

main74310-42240-B0iSXA1#199908

LT. GRAY,TRIM1#

74320VISOR ASSY, LH

main74320-42040-B0iSXA10199511-199608

W(REMOVABLE ROOF),LT. BLUISH GRAY,TRIM1#

main74320-42041-B0iSXA10199608-199702

W(REMOVABLE ROOF),LT. BLUISH GRAY,TRIM1#

main74320-42090-B0iSXA10,11199511-199608

LT. BLUISH GRAY,TRIM1#

main74320-42091-B0iSXA11199702-199709

CANADA SPEC,LT. BLUISH GRAY,TRIM1#

main74320-42110-B0iSXA15199602-199608

W(REMOVABLE ROOF),BLUISH GRAY,TRIM1#

main74320-42111-B0iSXA15199702-199709

CANADA SPEC & W(MOON ROOF),LT. BLUISH GRAY,TRIM1#

main74320-42120-B0iSXA15,16199602-199608

LT. BLUISH GRAY,TRIM1#

main74320-42121-B0iSXA15,16199608-199702

LT. BLUISH GRAY,TRIM1#

main74320-42170-B0iSXA10,11199702-199709

LT. BLUISH GRAY,TRIM1#

main74320-42180-B0iSXA15,16199702-199709

LT. BLUISH GRAY,TRIM1#

main74320-42210-B0iSXA10,11199709-199908

LT. GRAY,TRIM1#

main74320-42220-B0iSXA15,16199709-199908

LT. GRAY,TRIM1#

main74320-42260-B0iSXA10,11199908

LT. GRAY,TRIM1#

main74320-42270-B0iSXA15,16199908

LT. GRAY,TRIM1#

74348HOLDER, VISOR

main74348-22020-B4×2iSXA1#199511-199709

LT.BLUISH GRAY,TRIM1#

main74348-22020-B6×2iSXA1#199709-200008

LT.GRAY,TRIM1#

74603BCLIP (FOR ASSIST GRIP)

main90467-06070-B1×2iSXA1#199511-199709

LT.BLUISH GRAY,TRIM1#

main90467-06070-B4×2iSXA1#199709-200008

LT.GRAY,TRIM1#

74610AGRIP SUB-ASSY, ASSIST

main74603-16010-B1iSXA1#199709-200008

GRAY,TRIM1#

sub74610-12030

main74610-12020-B1×3iSXA11,16199608-199709

W(MOON ROOF),BLUISH GRAY,TRIM1#

main74610-12020-B2×3iSXA1#..HT199709-200008

W(MOON ROOF),LT.GRAY,TRIM1#

main74610-16010-B3×3iSXA1#199511-199709

LT.BLUISH GRAY,TRIM1#

sub74610-12030

main74610-42020-B0×2iSXA10,15..SOT199712-200008

SHADOW GRAY,TRIM1#,CENTER PILLAR

sub74610-26010

74617APLUG, ASSIST GRIP

main74617-16010-B7×6iSXA1#199511-199709

LT.BLUISH GRAY,TRIM1#

main74617-16010-B8×6iSXA1#..HT199709-200008

LI. GRAY,TRIM1#

main74617-26010-B5×2iSXA10,15..SOT199712-200008

SHADOW GRAY,TRIM1#,REAR RH

main74617-26020-B5×2iSXA10,15..SOT199712-200008

SHADOW GRAY,TRIM1#,REAR LH

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-42010-B0iSXA10,15199511-199608

BLUISH GRAY,TRIM1#

main74630-42020-B0iSXA11,16199511-199608

BLUISH GRAY,TRIM1#

main74630-42030-B0iSXA10,15199608-199709

BLUISH GRAY,TRIM1#

main74630-42030-B1×2iSXA10,15199709

SHADOW GRAY,TRIM1#

main74630-42040-B0iSXA11,16199608-199709

BLUISH GRAY,TRIM1#

main74630-42040-B1×4iSXA11,16199709

SHADOW GRAY,TRIM1#

74631CHOOK, COAT

main74631-42010-B0×2iSXA1#..HT199709-200008

LT.GRAY,TRIM1#

main74631-42020-B0×2iSXA1#..HT199709-200008

W(MOON ROOF),LT.GRAY,TRIM1#

74640CGRIP ASSY, DOOR ASSIST, LH

main74630-42010-B0iSXA10,15199511-199608

BLUISH GRAY,TRIM1#

main74630-42020-B0iSXA11,16199511-199608

BLUISH GRAY,TRIM1#

main74630-42030-B0iSXA10,15199608-199709

BLUISH GRAY,TRIM1#

main74630-42030-B1×2iSXA10,15199709

SHADOW GRAY,TRIM1#

main74630-42040-B0iSXA11,16199608-199709

BLUISH GRAY,TRIM1#

main74630-42040-B1×4iSXA11,16199709

SHADOW GRAY,TRIM1#

9015960367

main90159-60367

9016250019

main90162-50019

9016460021

main90164-60021

9018906121

main90189-06121

9046805114

main90468-05114

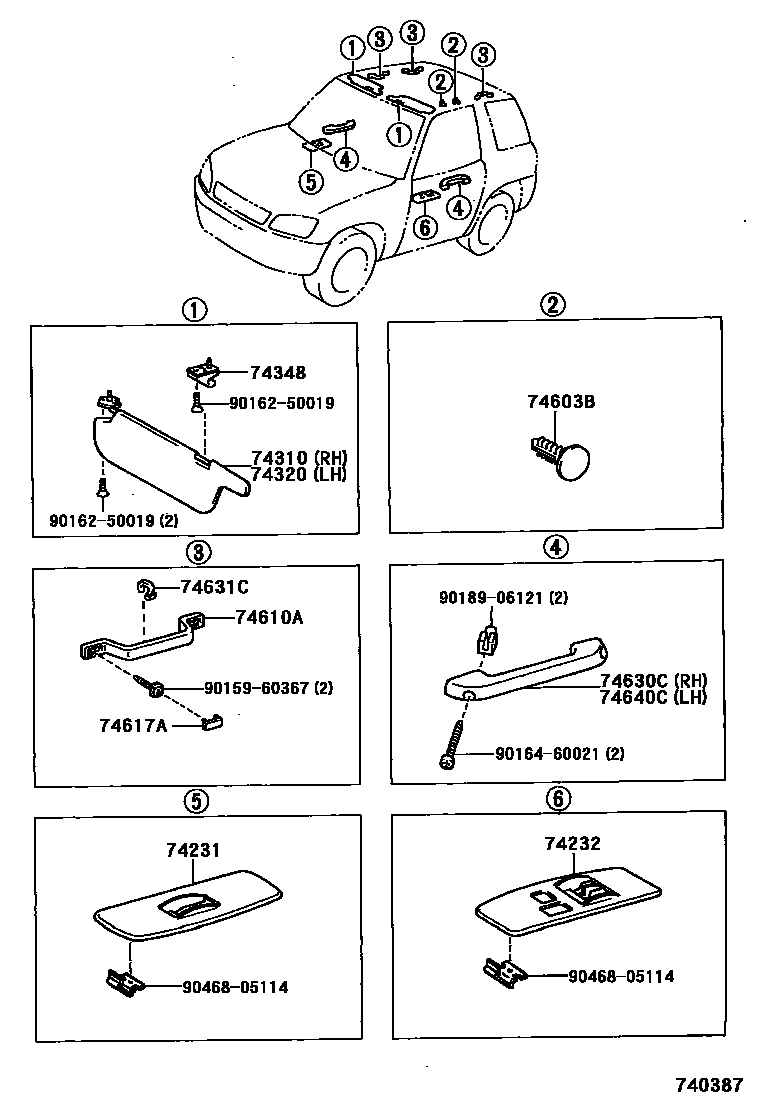

16 parts on this diagram · 2 diagrams in section
