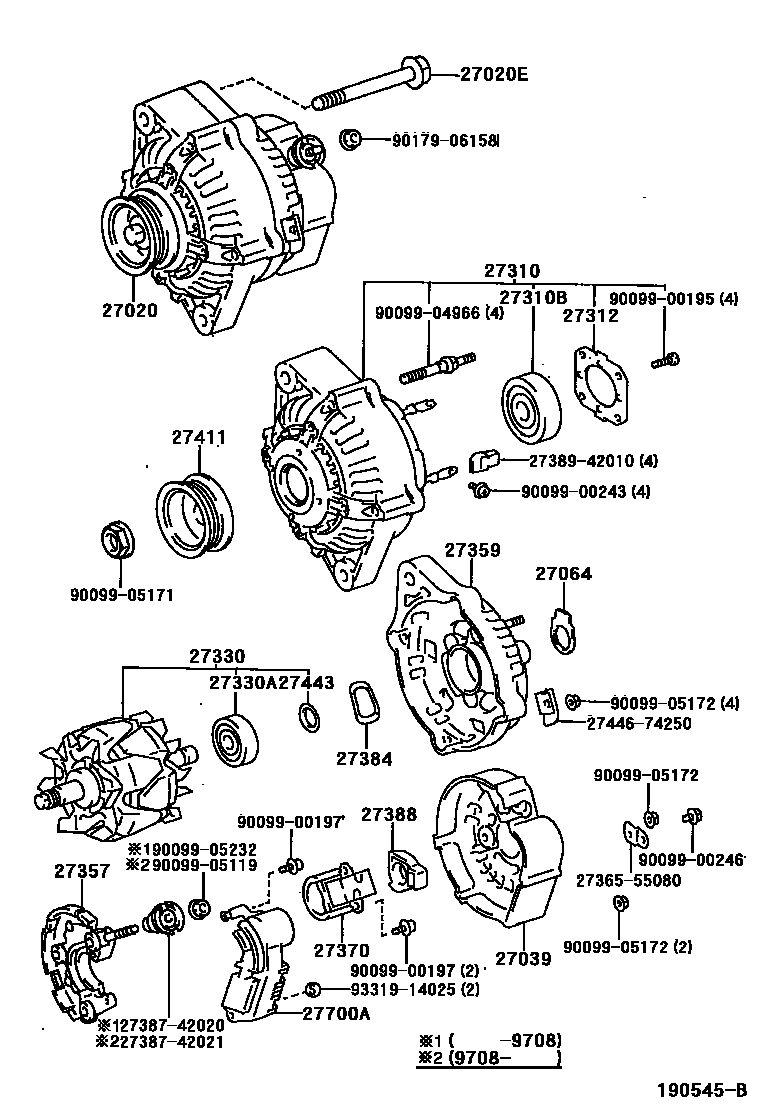

Toyota RAV4 — ALTERNATOR
27020ALTERNATOR ASSY
12V 80A
12V 80A
27020EBOLT(FOR ALTERNATOR)
27039COVER, ALTERNATOR REAR END
27064SEAL, ALTERNATOR PLATE
27310FRAME ASSY, DRIVE END, ALTERNATOR
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27312PLATE, RETAINER
27330ROTOR ASSY, ALTERNATOR
27330ABEARING(FOR ALTERNATOR ROTOR)
27357HOLDER, ALTERNATOR, W/RECTIFIER
27359FRAME, ALTERNATOR RECTIFIER END
27370HOLDER ASSY, ALTERNATOR BRUSH
27384WASHER
27388COVER, ALTERNATOR BRUSH
27411PULLEY, ALTERNATOR
27443COVER, ALTERNATOR BEARING
27700AREGULATOR ASSY, GENERATOR
2736555080PLATE, TERMINAL
main27365-55080
2738742020INSULATOR, TERMINAL
main27387-42020
2738742021INSULATOR, TERMINAL
main27387-42021
2738942010INSULATOR, TERMINAL
main27389-42010
2744674250CLIP, ALTERNATOR CORD
main27446-74250
9009900195
main90099-00195
9009900197
main90099-00197
9009900243
main90099-00243
9009900246
main90099-00246
9009904966
main90099-04966
9009905119
main90099-05119
9009905171
main90099-05171
9009905172
main90099-05172
9009905232
main90099-05232
9017906158
main90179-06158
9331914025
main93319-14025
33 parts on this diagram · 1 diagram in section
ALTERNATOR for Toyota RAV4
This section contains 33 genuine Toyota parts for the ALTERNATOR system of the Toyota RAV4. Key components include: ALTERNATOR ASSY, BOLT(FOR ALTERNATOR), COVER, ALTERNATOR REAR END, SEAL, ALTERNATOR PLATE, FRAME ASSY, DRIVE END, ALTERNATOR.
