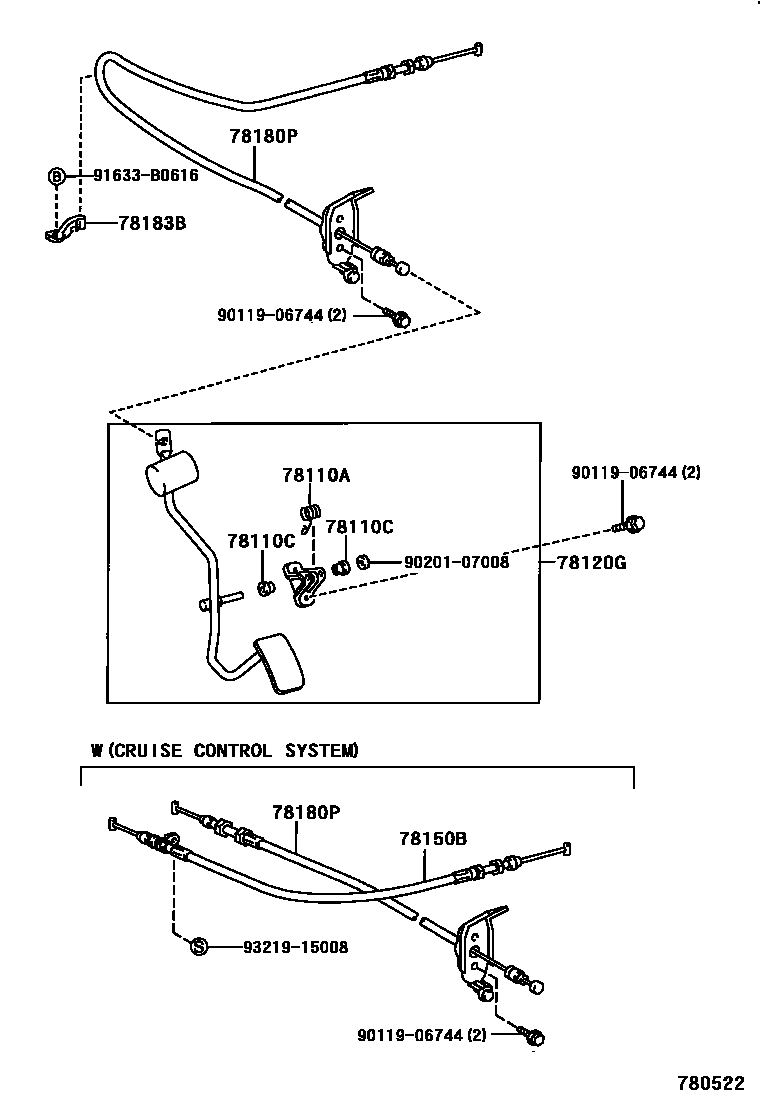

Toyota RAV4 — ACCELERATOR LINK

0001 1 0002 1

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90959-03292iACA2#200008-200307

78110CBUSH (FOR ACCELERATOR PEDAL ROD)

main90386-08063×2iACA2#200008-200307

78120GROD ASSY, ACCELERATOR PEDAL

main78010-42020iACA2#200307

main78120-42110iACA2#200008-200307

78150BCABLE ASSY, ACCELERATOR AUTO DRIVE

main78150-42030iACA2#200008-200307

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-42100iACA2#200008-200307

main78180-42110iACA2#200008-200307

W(CRUISE CONTROL)

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-42020iACA2#200008-200307

9011906744

main90119-06744

9020107008

main90201-07008

91633B0616

main91633-B0616

9321915008

main93219-15008

10 parts on this diagram · 2 diagrams in section
