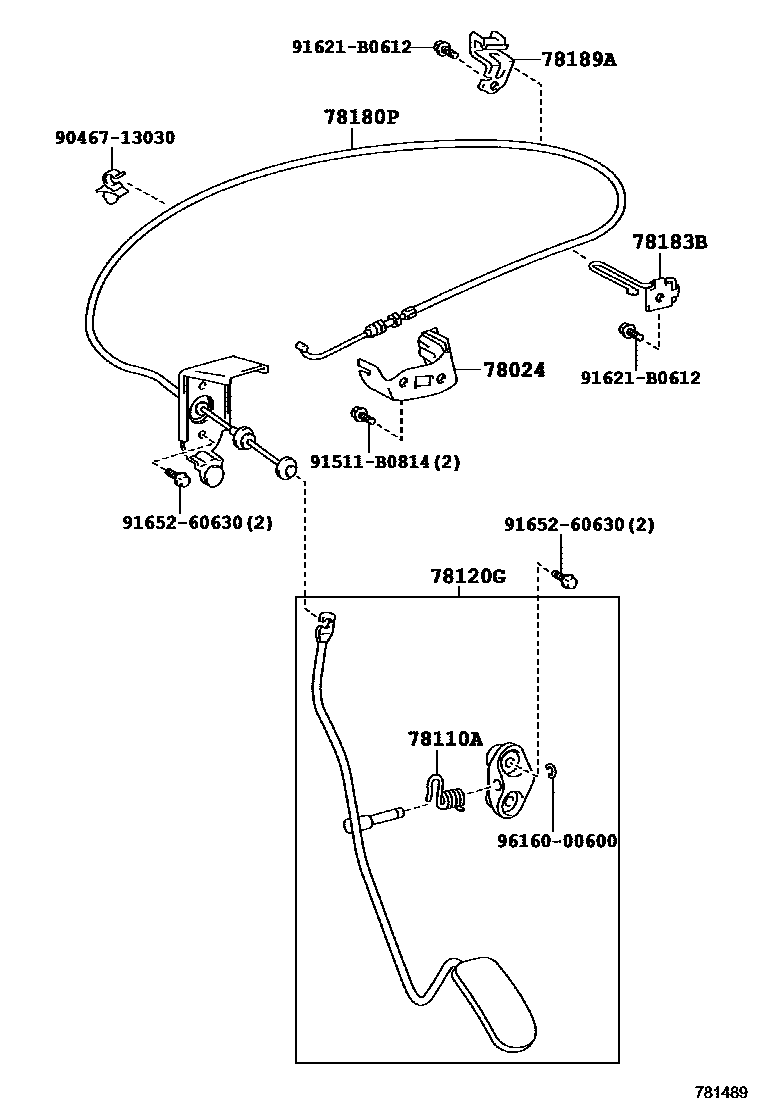

Toyota RAV4 — ACCELERATOR LINK

0001 1 0002 1W(CRUISE CONTROL)

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-20140iSXA1#199511-199709

main78024-44020iSXA1#199709

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90959-03049iSXA1#..ATM199511

main90959-03050iSXA1#..MTM199511

78120GROD ASSY, ACCELERATOR PEDAL

main78120-42020iSXA1#..MTM199511

main78120-42050iSXA1#..ATM199511

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-42020iSXA1#199511-199709

main78180-42030iSXA1#199511-199608

W(CRUISE CONTROL)

main78180-42031iSXA1#199608-199709

W(CRUISE CONTROL)

main78180-42060iSXA1#199709

main78180-42070iSXA1#199709

W(CRUISE CONTROL)

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-42011iSXA1#199511-199709

main78186-44010iSXA1#199709

78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2

main78189-20150iSXA1#199511

9046713030

main90467-13030

91511B0814

main91511-B0814

91621B0612

main91621-B0612

9165260630

main91652-60630

9616000600

main96160-00600

11 parts on this diagram · 2 diagrams in section
