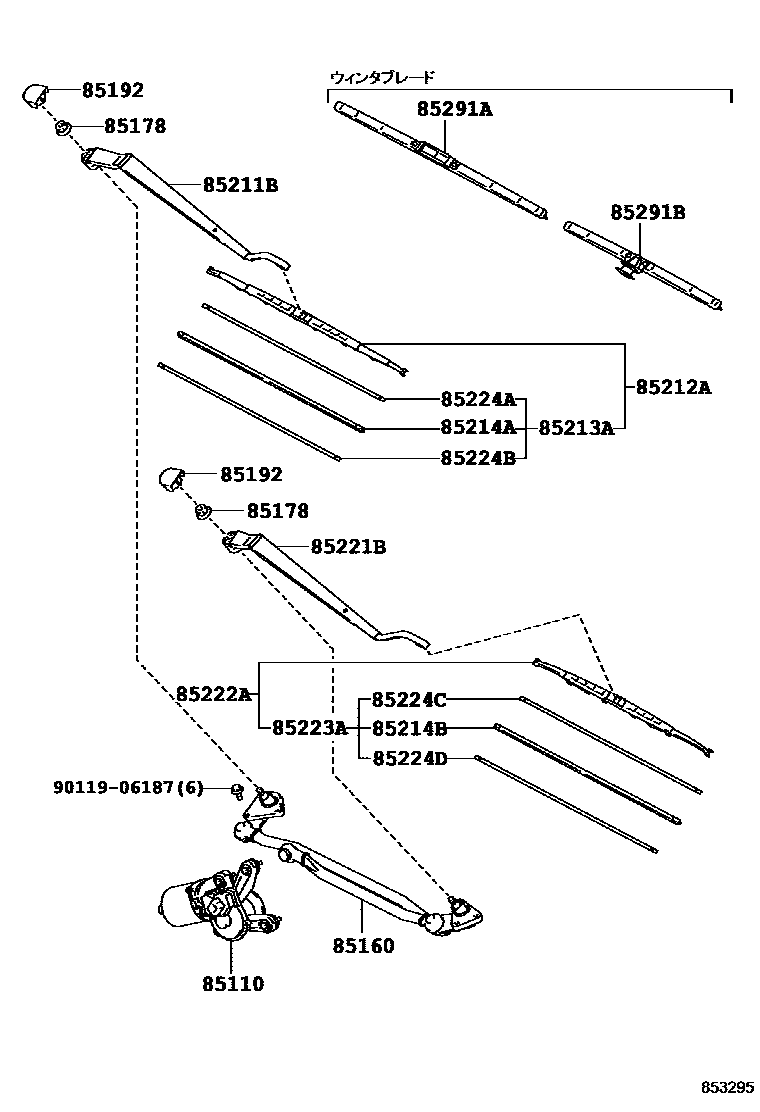

Toyota RAV4 — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-42010iSXA1#199404

main85110-42021iSXA1#199608

85160LINK ASSY, WINDSHIELD WIPER

main85150-42010iSXA1#199404-199608

main85150-42040iSXA1#199608

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08113×2iSXA1#199404

85192COVER, WINDSHIELD WIPER ARM

main85292-12020×2iSXA1#199404

85211BARM, FRONT WIPER, RH

main85211-42010iSXA1#199404-199608

main85211-42040iSXA1#199608

85212ABLADE, FR WIPER, RH

main85212-23070iSXA10199404-199504

main85212-42030iSXA1#199504-199608

main85212-42040iSXA1#199608

sub85212-42041

85213ARUBBER, WIPER BLADE, RH

main85213-30250iSXA10199404-199502

85214ARUBBER, WIPER, RH

main85214-10080iSXA1#199608

sub85214-53050

main85214-30250iSXA1#199502-199608

85214BRUBBER, WIPER, LH

main85214-20320iSXA1#199502-199608

sub85214-20330

main85214-20350iSXA1#199608

sub85214-22420

85221BARM, FRONT WIPER, LH

main85221-42010iSXA1#199404-199608

main85221-42040iSXA1#199608

85222ABLADE, FR WIPER, LH

main85222-20310iSXA1#199404-199608

sub85222-60100

main85222-20390iSXA1#199608

sub85222-22780

85223ARUBBER, FRONT WIPER BLADE, LH

main85223-20310iSXA10199404-199502

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-30380iSXA1#199502-199608

main85224-42010iSXA1#199608

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-30380iSXA1#199502-199608

main85224-42010iSXA1#199608

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-20310iSXA1#199608

main85224-60050iSXA1#199502-199608

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-20310iSXA1#199608

main85224-60050iSXA1#199502-199608

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-22050iSXA1#199404

sub85291-33060

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-30030iSXA1#199404

sub85291-22080

9011906187

main90119-06187

19 parts on this diagram · 1 diagram in section
