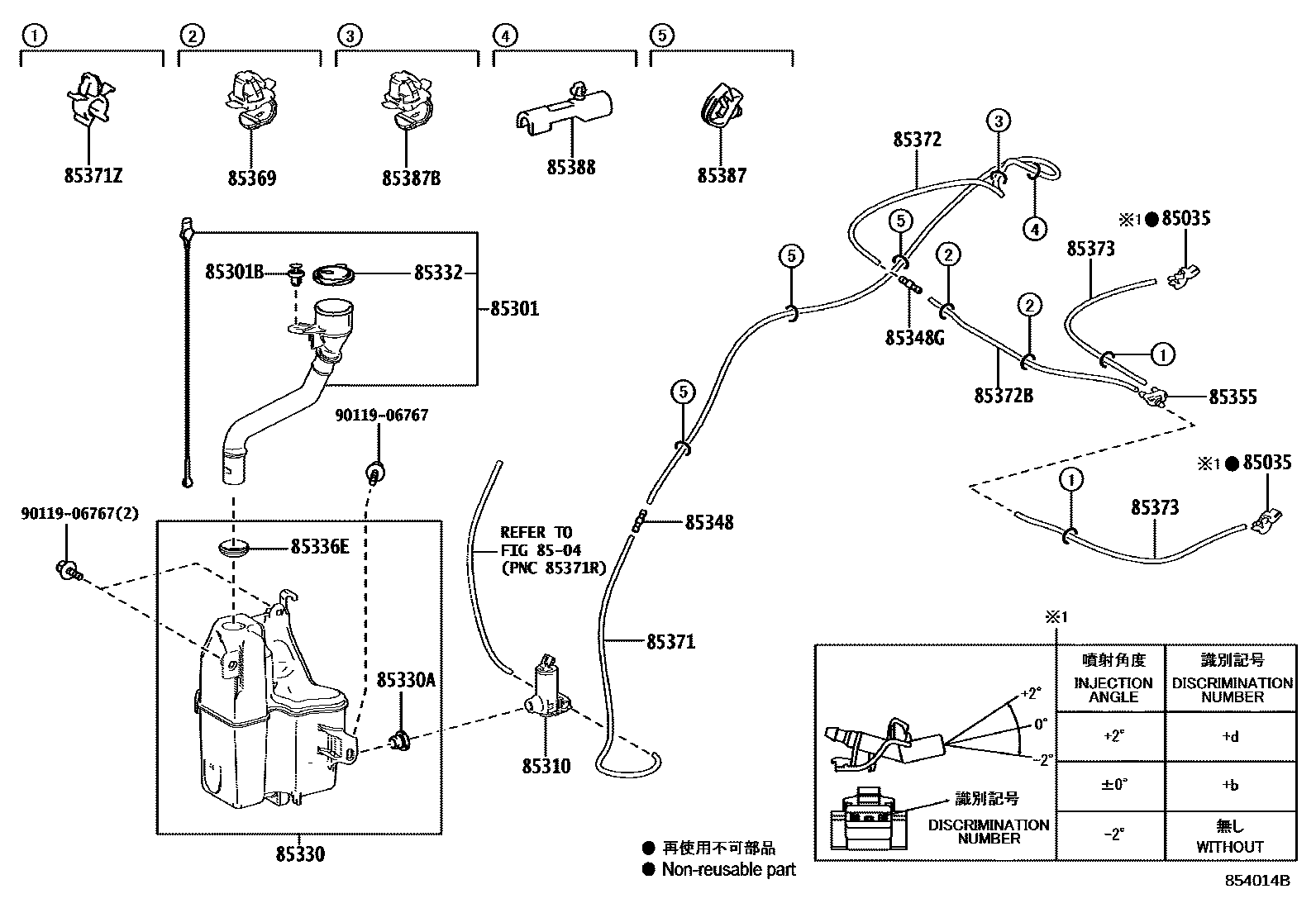

Toyota RAV4 — WINDSHIELD WASHER

0001 1 0002 1

85035NOZZLE SUB-ASSY, WASHER

main85381-30220iAXAH52,MXAA52201904-202410

main85381-30230iAXAH5#,MXAA5#201904-202410

main85381-30240iAXAH54,MXAA54201904-202410

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85301-42040iAXAH5#,MXAA5#201904-202004

main85301-42041iAXAH5#,MXAA5#202005-202410

85301BCLIP, WASHER

main90467-07215iAXAH5#,MXAA5#201904-202410

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47100iAXAH5#,MXAA5#201904-202410

85330JAR ASSY, WINDSHIELD WASHER

main85315-42470iAXAH5#,MXAA5#201904-202410

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iAXAH5#,MXAA5#201904-202410

85332CAP, WINDSHIELD WASHER JAR

main85316-42030iAXAH5#,MXAA5#201904-202005

main85316-42031iAXAH5#,MXAA5#202005-202410

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160iAXAH5#,MXAA5#201904-202410

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iAXAH5#,MXAA5#201904-202410

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-10260iAXAH5#,MXAA5#201904-202410

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iAXAH54,MXAA54201904-202410

85369CLAMP

main85371-12040iAXAH5#,MXAA5#201904-202410

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iAXAH5#,MXAA5#201904-202410

main90099-33080iAXAH5#,MXAA5#201904-202410

85371ZCLAMP, WASHER HOSE

main90469-07011iAXAH5#,MXAA5#201904-202410

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33803iAXAH5#,MXAA5#201904-202410

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iAXAH5#,MXAA5#201904-202410

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iAXAH5#,MXAA5#201904-202410

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-35520iAXAH5#,MXAA5#201904-202410

85387BCLAMP, WASHER, NO.3

main85371-12040iAXAH5#,MXAA5#201904-202410

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main85387-42280iAXAH5#,MXAA5#201904-202410

9011906767

main90119-06767

22 parts on this diagram · 2 diagrams in section
