Toyota RAV4 — V-BELT

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

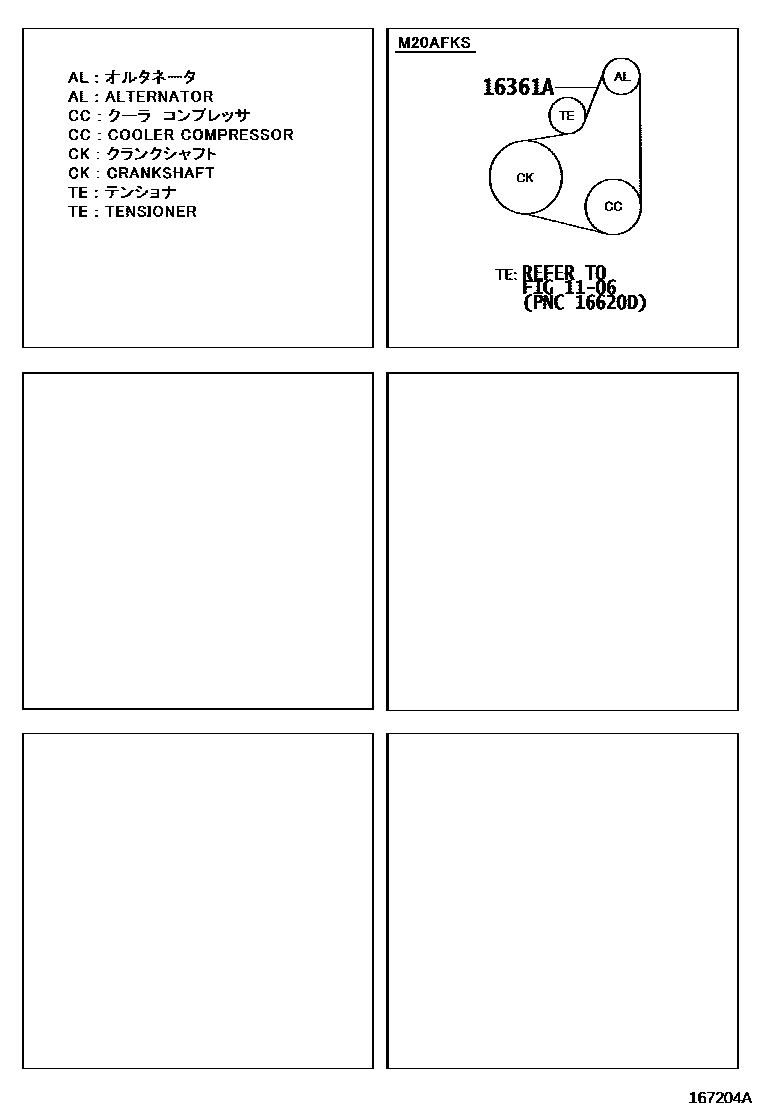

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02761i201904-202007

main90916-02788i202303-202310

2 parts on this diagram · 1 diagram in section

V-BELT for Toyota RAV4

This section contains 2 genuine Toyota parts for the V-BELT system of the Toyota RAV4. Key components include: TIMING GEAR COVER & REAR END PLATE, BELT, V(FOR FAN & ALTERNATOR).
