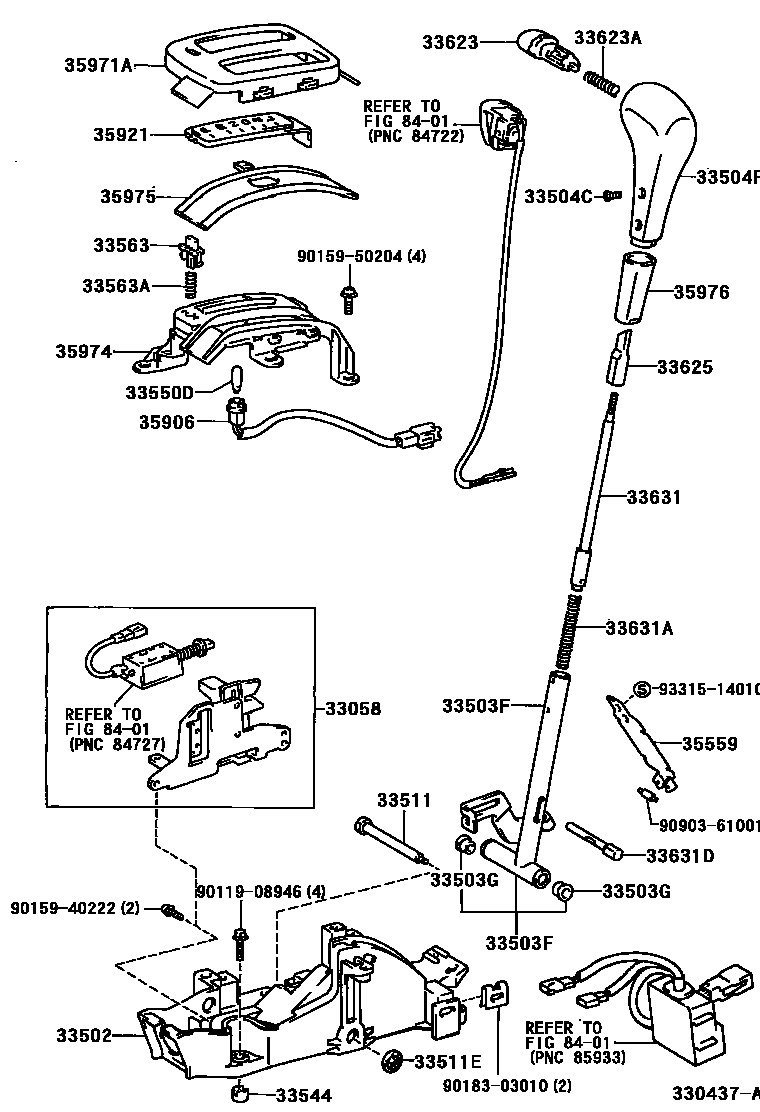

Toyota RAV4 — SHIFT LEVER & RETAINER
33058BRACKET SUB-ASSY, SHIFT LOCK SOLENOID
33502PLATE SUB-ASSY, SHIFT LEVER
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503GBUSH(FOR SHIFT LEVER)
33504CSCREW (FOR SHIFT LEVER KNOB SETTING)
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM1#
BLACK,TRIM1#
BLACK,TRIM1#
33511SHAFT, CONTROL (FOR FLOOR SHIFT)
33511ERING, SNAP (FOR FLOOR SHIFT CONTROL SHAFT)
33544INSERT, SHIFT LEVER, NO.1
33550DBULB, POSITION INDICATOR LAMP
33563BUTTON, SHIFT LOCK RELEASE
33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
33623BUTTON, SHIFT LEVER KNOB
BLACK,TRIM1#
BLACK,TRIM1#
33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
33625SLEEVE, SHIFT LEVER KNOB
33631ASPRING, COMPRESSION (FOR DETENT ROD)
33631DPIN, GROOVED (FOR DETENT ROD)
35906WIRE SUB-ASSY, INDICATOR LAMP
35921PLATE, CONTROL POSITION INDICATOR
35971AHOUSING, POSITION INDICATOR, UPPER
BLACK,TRIM1#
BLACK,TRIM1#
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
BLACK,TRIM1#
BLACK,TRIM1#
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
BLACK,TRIM1#
8401SWITCH & RELAY & COMPUTER
9011908946
main90119-08946
9015940222
main90159-40222
9015950204
main90159-50204
9018303010
main90183-03010
9090361001
main90903-61001
9331514010
main93315-14010
32 parts on this diagram · 4 diagrams in section
SHIFT LEVER & RETAINER for Toyota RAV4
This section contains 69 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota RAV4. Key components include: BRACKET SUB-ASSY, SHIFT LOCK SOLENOID, PLATE SUB-ASSY, SHIFT LEVER, LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT), BUSH(FOR SHIFT LEVER), SCREW (FOR SHIFT LEVER KNOB SETTING).
