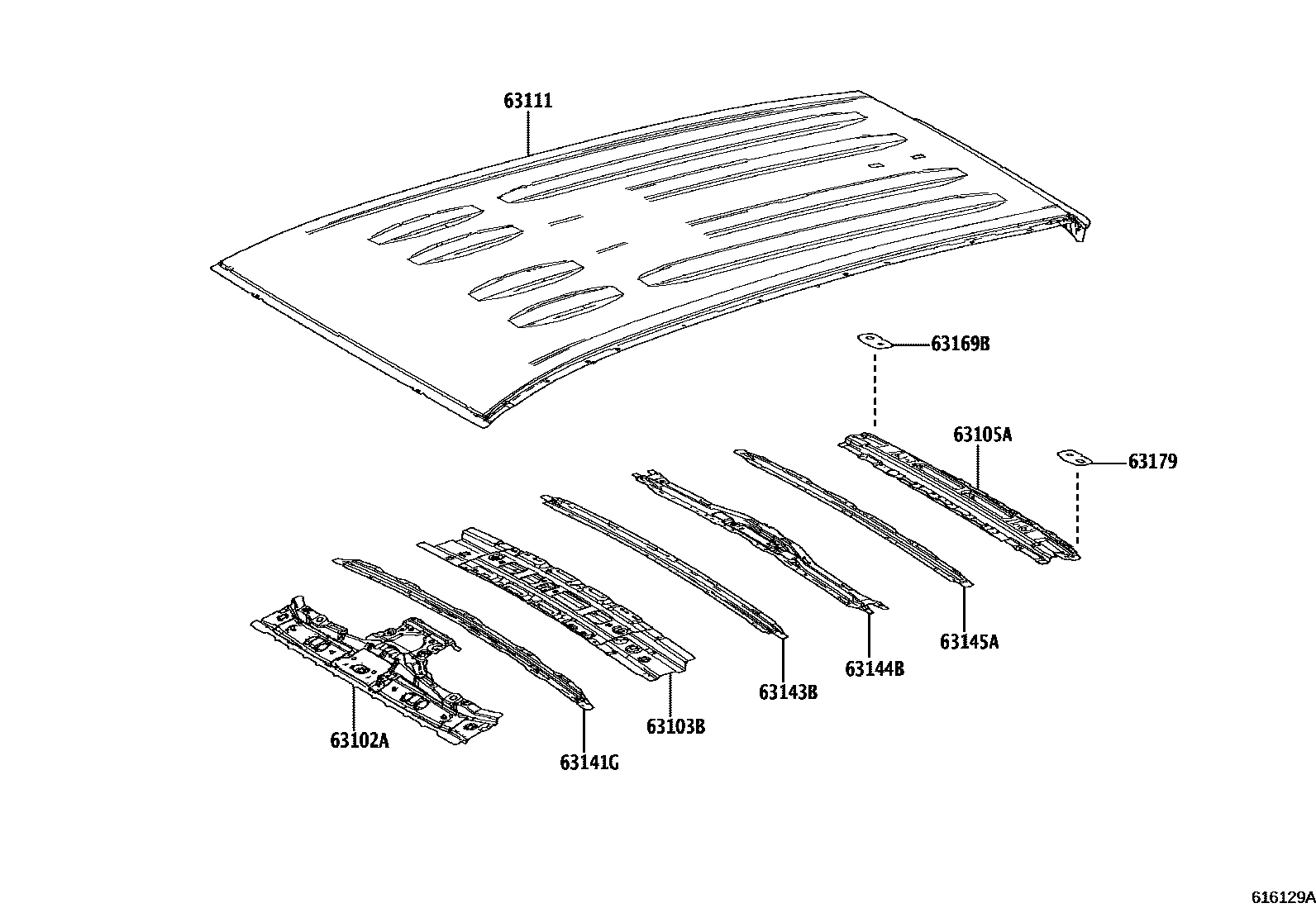

Toyota RAV4 — ROOF PANEL & BACK PANEL

0001 1�������(�������) 0002 1�������(������) 0003 1�������(��������) 0004 1������������(������) 0005 1������������(��������) 0006 1������ 0007 1������(��������) 0009 1������(��������) 0010 1������(����������)

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-42907iAXAH5#,MXAA5#201904-202005

main63102-42910iAXAH5#,MXAA5#202210-202310

main63102-42912iAXAH5#,MXAA5#202005-202006

main63102-42130iAXAH54,MXAA54..ADVEN,G,HBDG201904-202005

sub63102-42914

main63102-42160iAXAH54,MXAA54..ADVEN,G,HBDG202008-202210

main63102-42908iAXAH5#,MXAA5#..HBDX,X201904-202005

main63102-42911supersedes 63102-42910iAXAH5#,MXAA5#..HBDX,X202006-202007

main63102-42913iAXAH5#,MXAA5#..HBDX,X202005-202006

63103BREINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-42040iAXAH52,MXAA52202310-202410

main00000-00000iAXAH54,MXAA54..ADVEN,G,HBDG201904-202007

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-42050iAXAH5#,MXAA5#202210-202310

63111PANEL, ROOF

main63111-42260iAXAH5#,MXAA5#202008-202112

main63111-42261iAXAH54,MXAA54202310

main00000-00000iAXAH54,MXAA54..ADVEN,G,HBDG201904-202007

main63111-42280iAXAH5#,MXAA5#..HBDX,X202008-202112

main63111-42281supersedes 63111-42261iAXAH5#,MXAA5#..HBDX,X202112-202210

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63143-42070iAXAH5#,MXAA5#201904-202007

main00000-00000iAXAH54,MXAA54..ADVEN,G,HBDG201904-202007

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63144-42050iAXAH5#,MXAA5#201904-202007

main00000-00000iAXAH54,MXAA54..ADVEN,G,HBDG201904-202007

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63108-42010iAXAH5#,MXAA5#202008-202210

main00000-00000iAXAH54,MXAA54..ADVEN,G,HBDG201904-202007

63145AREINFORCEMENT, ROOF PANEL, NO.5

main63149-42080iAXAH5#,MXAA5#201904-202007

main00000-00000iAXAH54,MXAA54..ADVEN,G,HBDG201904-202007

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-47010iAXAH5#,MXAA5#201904-202007

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-47010iAXAH5#,MXAA5#201904-202007

10 parts on this diagram · 9 diagrams in section
