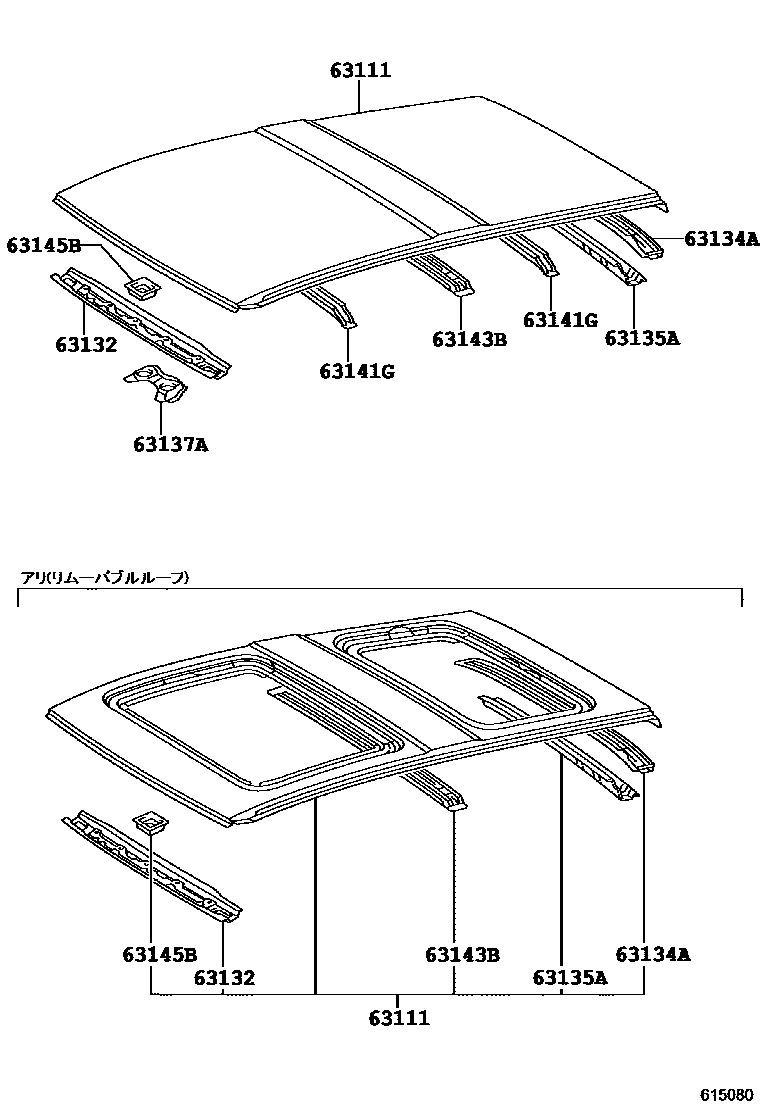

Toyota RAV4 — ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

63111PANEL, ROOF

main63101-42020iSXA10199404-199704

main63101-42021iSXA10199704-199709

main63101-42060iSXA10..SOT199712-200005

main63101-42900iSXA10,15..G,STD,X199709-200005

main63103-42900iSXA11..G,STD199504-200005

main63111-42010iSXA10,15..G,STD,X199404-200005

main63111-42030iSXA11,16199504-200005

63132PANEL, WINDSHIELD HEADER, INNER

main63132-42010iSXA10,15199404

main63132-42020iSXA11,16199504

63134AFRAME, BACK DOOR OPENING, UPPER

main63134-42010iSXA1#..G,STD,X199404

main63134-42020iSXA10..SOT199712

63135AFRAME, BACK DOOR OPENING, LOWER

main63135-42010iSXA1#199404-199704

main63135-42011iSXA1#..G,STD,X199704

63137ABRACKET, DOME LAMP, NO.1

main63137-42010iSXA1#..G,STD,X199404

main63137-42020iSXA10..SOT199712

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-42010×2iSXA10,15..G,STD,X199404

main63141-42020iSXA11,16199504

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-42010iSXA10,15..G,STD,X199404

main63143-42020iSXA11,16199504

63145BREINFORCEMENT, WINDSHIELD HEADER PANEL

main63145-42010iSXA10,15199404

8 parts on this diagram · 7 diagrams in section
