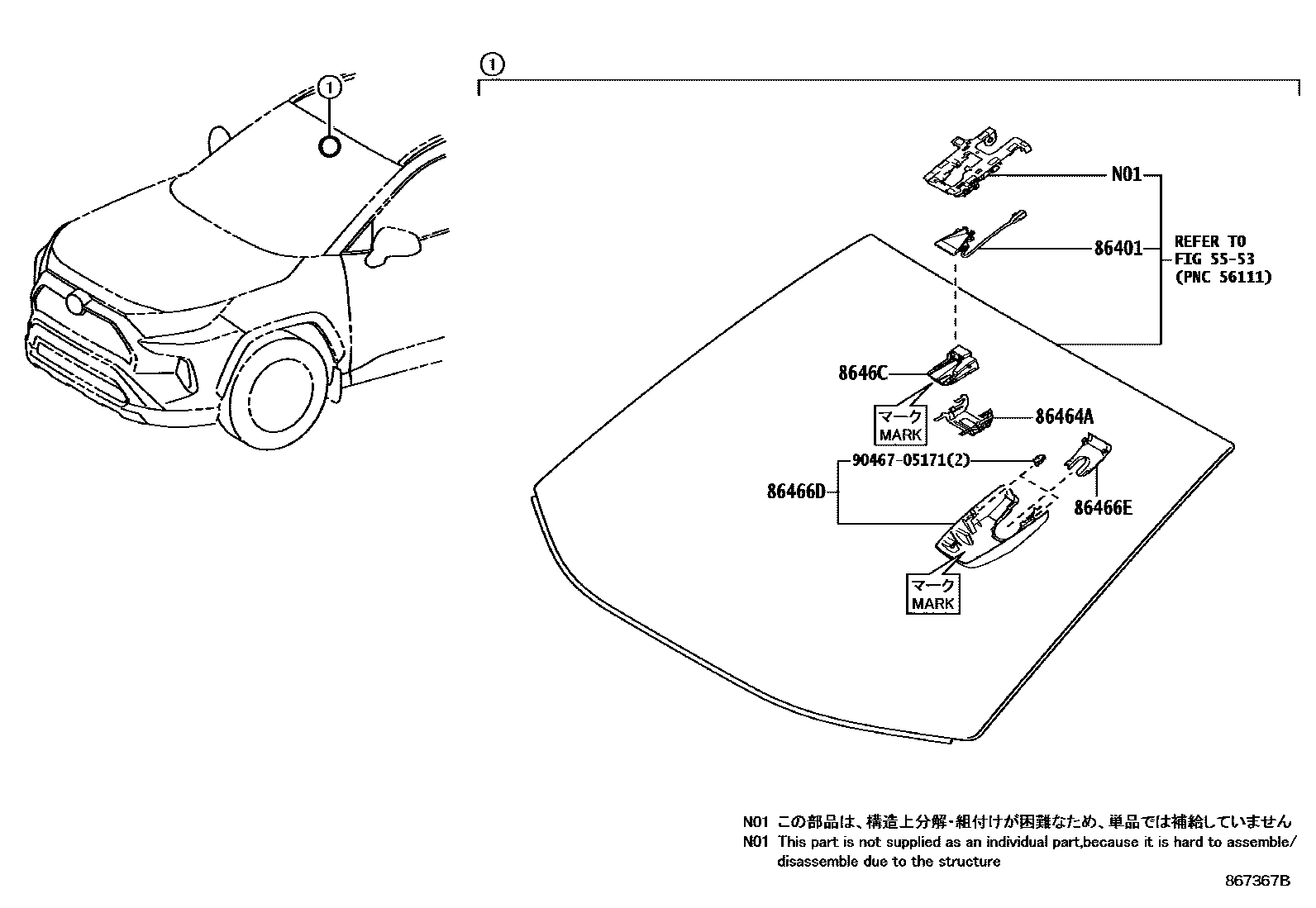

Toyota RAV4 — PRE-COLLISION SYSTEM

5553

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-10010iAXAH52,MXAA52202310-202410

main86401-42040iAXAH5#,MXAA5#201904-201905

main86401-42041iAXAH5#,MXAA5#201906-202007

86464ALATCH, FORWARD RECOGNITION

main86464-26010iAXAH5#,MXAA5#201904-202007

main86464-K0010iAXAH52,MXAA52202310-202410

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-42120iAXAH54,MXAA54202310

main86466-42150iAXAH54,MXAA54..ADVEN,G202210-202310

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-42070iAXAH52,MXAA52202310-202410

main86466-42130supersedes 86466-42070iAXAH54,MXAA54..ADVEN,G202310

8646CCAMERA, FORWARD RECOGNITION

main8646C-0R090iAXAH5#,MXAA5#202112-202210

main8646C-0R140iAXAH5#,MXAA5#202210-202306

main8646C-0R141iAXAH5#,MXAA5#202310-202407

main8646C-0R142iAXAH54,MXAA54202407

main8646C-42030iAXAH5#,MXAA5#201904-201910

main8646C-42031iAXAH5#,MXAA5#202008-202010

main8646C-42032iAXAH5#,MXAA5#202010-202112

9046705171

main90467-05171

7 parts on this diagram · 1 diagram in section
