Toyota RAV4 — MOUNTING

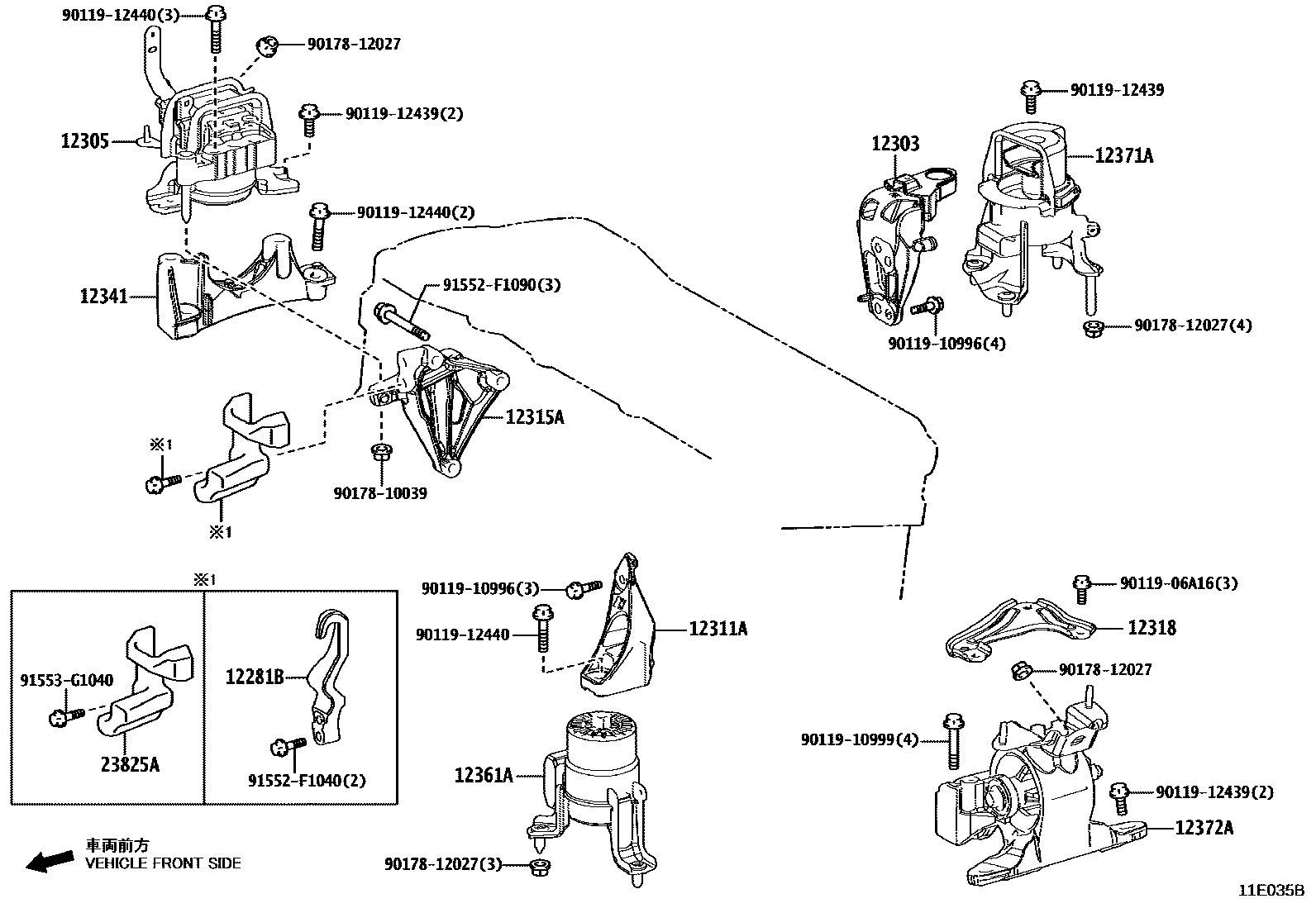

Parts diagram

12281BHANGER, ENGINE, NO.1

main12281-25030i201904-202007

12303BRACKET SUB-ASSY, ENGINE MOUNTING, REAR

main12303-24020i201904-202007

main12303-25020i202008-202210

main12321-24050i202008-202210

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-24030i202008-202210

main12305-25040i202310

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-24010i202310

main12311-25080i202210-202310

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-24020i202210-202310

main12315-25030i201904-202003

main12315-25031i202210-202310

12318STAY, ENGINE MOUNTING, LH

main12318-25020i201904-202007

12341SPACER, ENGINE MOUNTING

main12341-25010i201904-202007

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-24010i202210-202310

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-25090i202210-202310

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-25050i202310-202410

main12371-25060i202210-202310

main12371-25070i201904-202007

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12306-25020i201904-202007

main12372-24040i202008-202210

23825AGUARD, FUEL DELIVERY

main23825-24010i202008-202210

main23825-25010i202310

9011906A16

main90119-06A16

9011910996

main90119-10996

9011910999

main90119-10999

9011912439

main90119-12439

9011912440

main90119-12440

9017810039

main90178-10039

9017812027

main90178-12027

91552F1040

main91552-F1040

91552F1090

main91552-F1090

91553G1040

main91553-G1040

22 parts on this diagram · 3 diagrams in section

MOUNTING for Toyota RAV4

This section contains 31 genuine Toyota parts for the MOUNTING system of the Toyota RAV4. Key components include: HANGER, ENGINE, NO.1, BRACKET SUB-ASSY, ENGINE MOUNTING, REAR, BRACKET SUB-ASSY, ENGINE MOUNTING, LH, INSULATOR SUB-ASSY, ENGINE MOUNTING, RH, BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE).
