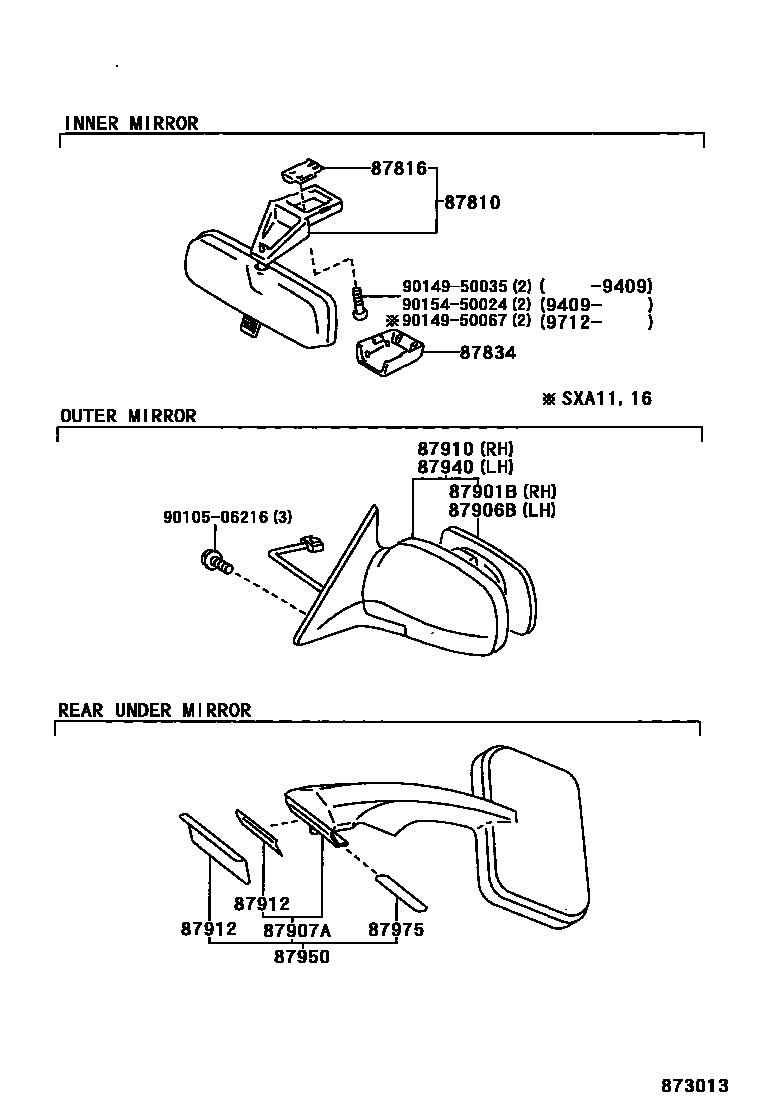

Toyota RAV4 — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87907AMIRROR SUB-ASSY, OUTER UNDER REAR VIEW
87910MIRROR ASSY, OUTER REAR VIEW, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
87950MIRROR ASSY, OUTER UNDER REAR VIEW
87975BRACKET, OUTER UNDER REAR VIEW MIRROR
9010506216
main90105-06216
9014950035
main90149-50035
9014950067
main90149-50067
9015450024
main90154-50024
15 parts on this diagram · 1 diagram in section
MIRROR for Toyota RAV4
This section contains 15 genuine Toyota parts for the MIRROR system of the Toyota RAV4. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
