Toyota RAV4 — METER

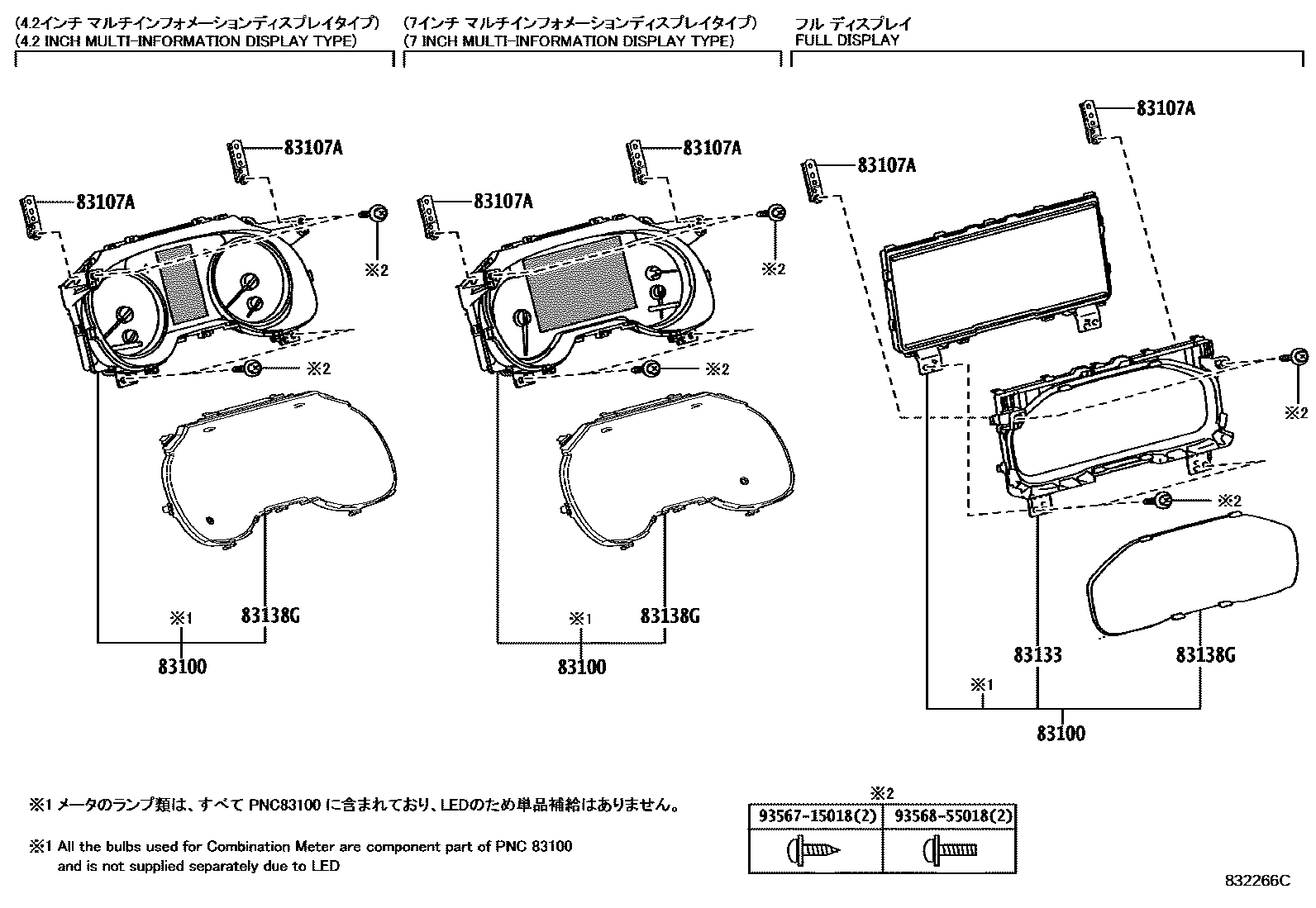

83100METER ASSY, COMBINATION

main83800-4A120iMXAA5#..X201904-201909

main83800-4A130iMXAA54..ADVEN,G201904-201909

main83800-4A150iAXAH5#..HBDX201904-201909

main83800-4A160iAXAH54..HBDG201904-201909

main83800-4A470iMXAA5#..X201910-202007

main83800-4A480iMXAA54..ADVEN,G201910-202007

main83800-4A490iAXAH5#..HBDX201910-202007

main83800-4A500iAXAH54..HBDG201910-202007

main83800-4A700iMXAA5#..X202008-202112

main83800-4A710iMXAA54..ADVEN,G202008-202112

main83800-4A720iAXAH5#..HBDX202008-202112

main83800-4A730iAXAH54..HBDG202008-202112

main83800-4A850iMXAA5#..X202112-202210

main83800-4A860iMXAA54..ADVEN,G202112-202210

main83800-4A870iAXAH5#..HBDX202112-202210

main83800-4A880iAXAH54..ADVEN,HBDG202112-202210

main83800-4AD40iMXAA5#..X202210-202310

main83800-4AD41iMXAA52202310-202410

main83800-4AD50iMXAA54..ADVEN,G202210-202304

main83800-4AD51iMXAA54..ADVEN,G202305-202310

main83800-4AD52iMXAA54..ADVEN,G202401-202410

main83800-4AD53iMXAA54..ADVEN,G202411

main83800-4AD60iAXAH5#..X202210-202310

main83800-4AD61iAXAH54..X202310

main83800-4AD70iAXAH54..ADVEN,G202210-202304

main83800-4AD71iAXAH54..ADVEN,G202310-202312

main83800-4AD72iAXAH54..ADVEN,G202401-202410

main83800-4AD73iAXAH54..ADVEN,G202411

83107ABRACKET SUB-ASSY, METER, NO.1

main83107-42010×2iAXAH52,MXAA52202310-202410

83133PLATE, COMBINATION METER, NO.1

main83811-4AB40iAXAH54,MXAA54..ADVEN,G202310

83138GGLASS, COMBINATION METER

main83852-42Y00iAXAH5#,MXAA5#..HBDX,X201904-202007

main83852-42Y10iAXAH54,MXAA54..ADVEN,G,HBDG201904-202007

main83852-4AB40iAXAH54,MXAA54..ADVEN,G202310

9356715018

main93567-15018

9356855018

main93568-55018

6 parts on this diagram · 1 diagram in section
