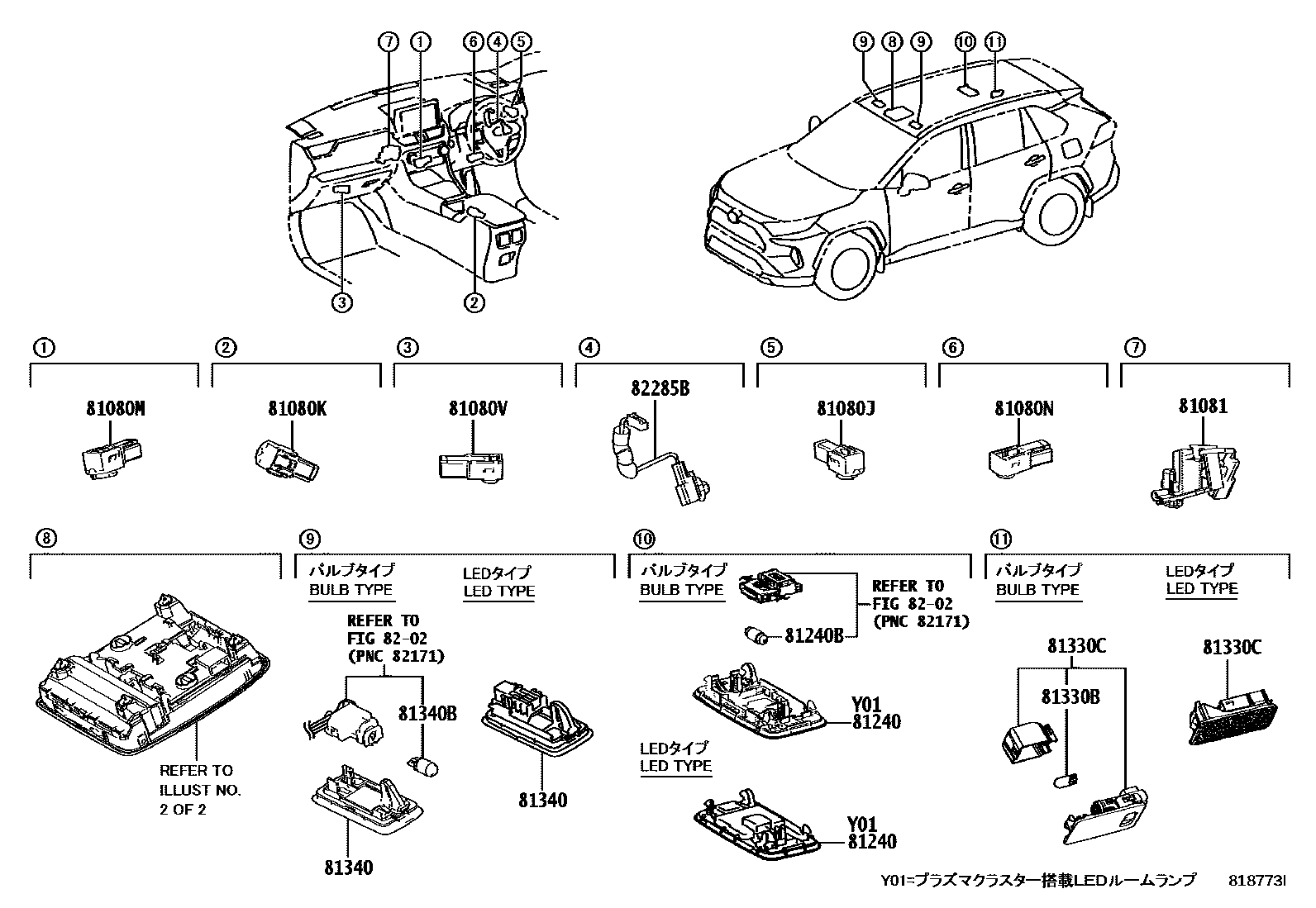

Toyota RAV4 — INTERIOR LAMP

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-42040i201904-202007

81080KLAMP ASSY, CONSOLE BOX ILLUMINATION

main81080-42040i201904-202007

81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-42040i201904-202007

81080NLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-33280i201904-202007

81080VLAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81080-33280i201904-202007

81081LAMP SUB-ASSY, INTERIOR ILLUMINATION

main81081-42040i201904-202007

81240LAMP ASSY, ROOM, NO.1

main81240-35020-B0i201904-201908

LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM20,41

main81240-35020-C1i201904-201908

BLACK,TRIM20,41

main81240-48040-B0i202310-202410

LT.GRAY,TRIM2#

main81360-42021-B0i201909-202007

LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM2#,4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011i201904-202007

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050i202008-202112

81330CLAMP ASSY, LUGGAGE COMPARTMENT

main81330-58010i201904-202007

main81360-78020i202210-202310

81340LAMP ASSY, VANITY

main81340-30110×2i201904-202007

main81340-33170×2i202310-202410

81340BBULB (FOR VANITY LAMP)

main90981-11062×2i202008-202112

8202WIRING & CLAMP

→ Go to FIG 82-02

82285BWIRE, ILLUMINATION

main82285-42040i201904-202007

14 parts on this diagram · 3 diagrams in section

INTERIOR LAMP for Toyota RAV4

This section contains 20 genuine Toyota parts for the INTERIOR LAMP system of the Toyota RAV4. Key components include: CLIP(FOR MAP LAMP), COVER, ROOF CONSOLE BOX, NO.1, CASE, ROOF CONSOLE COVER, LAMP ASSY, INTERIOR ILLUMINATION, NO.1, LAMP ASSY, CONSOLE BOX ILLUMINATION.
