Toyota RAV4 — INSTRUMENT PANEL & GLOVE COMPARTMENT

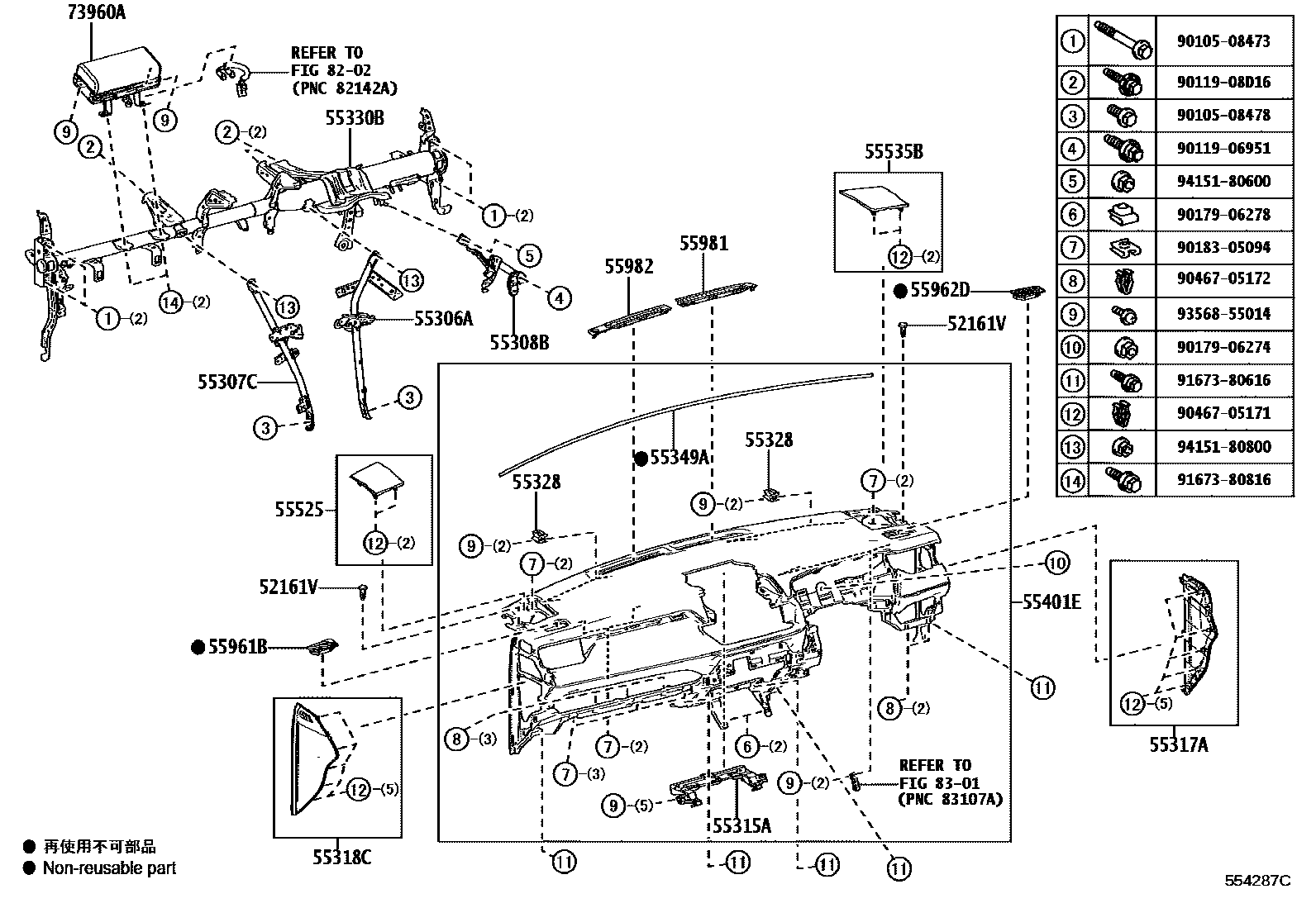

Parts diagram
52161VPIECE, INSTRUMENT PANEL
main52161-16010×2i202310-202410
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
main55306-42160i201904-202007
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
main55307-42100i201904-202007
55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3
main55308-42080i201904-202007
55315ASPACER, INSTRUMENT PANEL, NO.1
main55315-42070i201904-202007
55317APANEL, INSTRUMENT SIDE, RH
main55317-42070-C0i202310-202410
BLACK,TRIM2#
55318CPANEL, INSTRUMENT SIDE, LH
main55318-42030-C0i202210-202310
BLACK,TRIM2#; BLACK,TRIM2#,4#
55328PIN, INSTRUMENT PANEL, NO.1
main55328-60090×4i202310
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
main55330-42340i202008-202210
55349ACUSHION, INSTRUMENT PANEL
main55349-42050i202310-202410
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
main55401-42050-20i202210-202310
S BLACK/S BLACK/LT.GRAY,TRIM2#
main55401-42060-23supersedes 55401-42050-23i201904-202007
S BLACK/LT.GRAY/ORANGE,TRIM4#
main55401-42060-20i202210-202310
main55401-42060-21supersedes 55401-42050-21i202008-202210
main55401-42060-22i202008-202210
main55401-42060-C8i202008-202210
main55401-42140-C0supersedes 55401-42050-21i202310
main55401-42150-C0supersedes 55401-42060-21i202010-202210
55525COVER, SPEAKER HOLE, NO.1
main55525-42030-C0supersedes 55525-42040-C0i201904-202007
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#
main55525-42040-C0i202210-202310
BLACK,TRIM2#; BLACK,TRIM2#,4#
55535BCOVER, SPEAKER HOLE, NO.2
main55535-42030-C0i202310-202410
BLACK,TRIM2#
55961BNOZZLE, SIDE DEFROSTER, NO.1
main55961-42010-C0i201904-202007
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#
55962DNOZZLE, SIDE DEFROSTER, NO.2
main55962-42010-C0i201904-202007
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#
55981GARNISH, DEFROSTER NOZZLE, NO.1
main55981-42040-C0i201904-202007
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#
55982GARNISH, DEFROSTER NOZZLE, NO.2
main55982-42040-C0i201904-202007
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
main73960-42110i201904-202007
8202WIRING & CLAMP
→ Go to FIG 82-02
8301METER
→ Go to FIG 83-01
9010508473
main90105-08473
9010508478
main90105-08478
9011906951
main90119-06951
9011908D16
main90119-08D16
9017906274
main90179-06274
9017906278
main90179-06278
9018305094
main90183-05094
9046705171
main90467-05171
9046705172
main90467-05172
9167380616
main91673-80616
9167380816
main91673-80816
9356855014
main93568-55014
9415180600
main94151-80600
9415180800
main94151-80800

34 parts on this diagram · 4 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota RAV4

This section contains 65 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota RAV4. Key components include: PIECE, INSTRUMENT PANEL, DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1, DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2, STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1.
