Toyota RAV4 — INSIDE TRIM BOARD

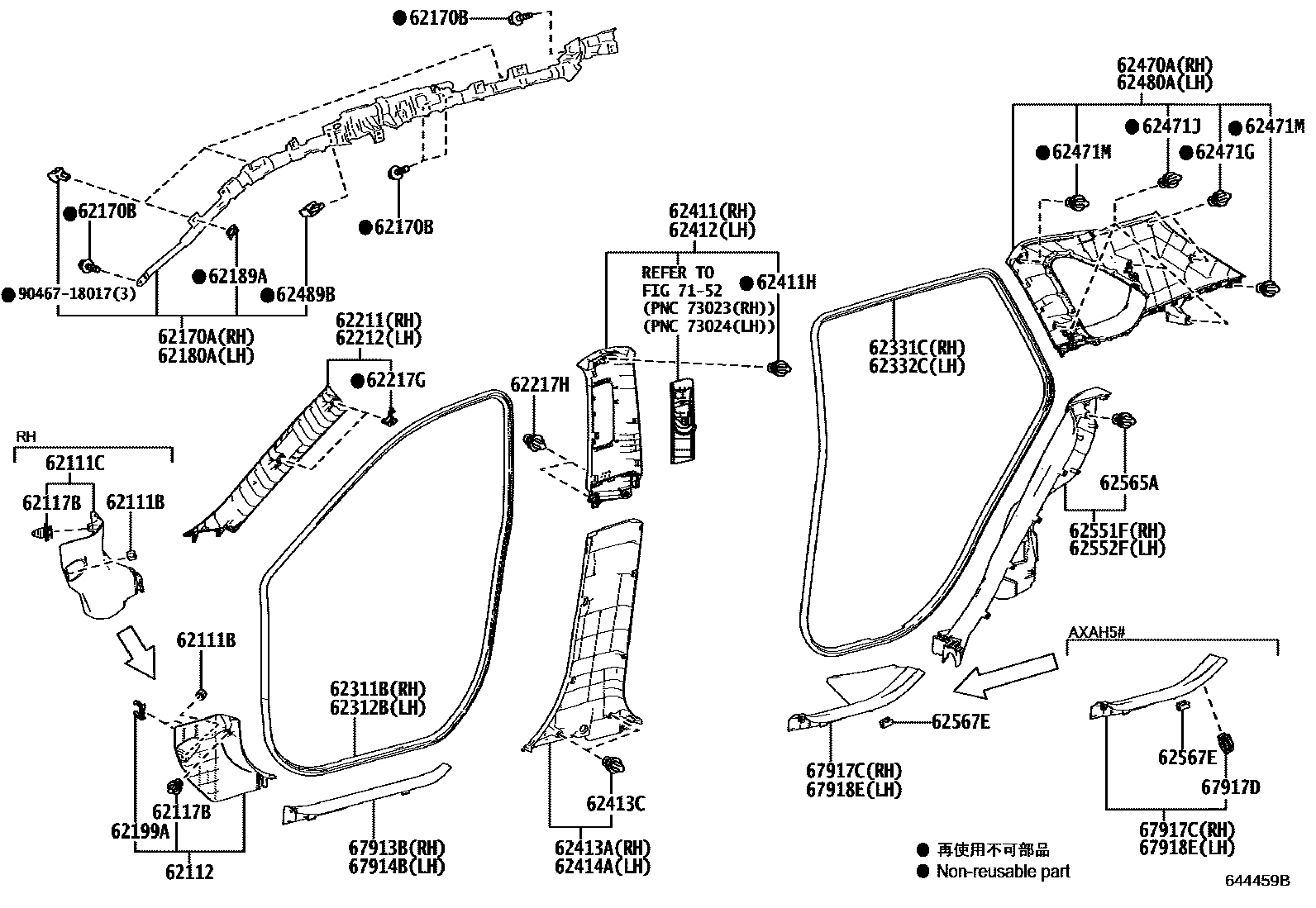

Parts diagram
62111BCLIP(FOR COWL SIDE TRIM)
main90467-06155×2i202210-202310
62111CBOARD, COWL SIDE TRIM, RH
main62111-42080-C0i201904-202007
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#
62112BOARD, COWL SIDE TRIM, LH
main62112-42080-C0i202008-202210
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
main90467-10161×2i201904-202007
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
main62170-42070i201904-202007
main62170-42071i202208-202210
62170BBOLT, W/WASHER
main91673-80616×8i202210-202310
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
main62180-42070i201904-202007
main62180-42071i202208-202210
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
main62189-42010×2i201904-202007
62199AHOLDER, FUSEE
main62199-48010×2i201904-202007
62211GARNISH, FRONT PILLAR, RH
main62210-42100-B0i201904-202007
LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM2#,4#
62212GARNISH, FRONT PILLAR, LH
main62220-42090-B0i201904-202007
LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM2#,4#
62217GCLIP, FRONT PILLAR GARNISH
main62217-42050×4i202210-202310
main62217-42060×4i202312-202410
62217HCLIP, CENTER PILLER GARNISH
main90467-10216×4i201904-202007
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-42110i201904-202007
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-42110i201904-202007
62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-42100i201904-202007
62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-42090i201904-202007
62411GARNISH, CENTER PILLAR, RH
main62410-42100-B1i201904-202007
LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM2#,4#
62411HCLIP
main90467-10167×2i201904-202007
62412GARNISH, CENTER PILLAR, LH
main62420-42100-B1i201904-202007
LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM2#,4#
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-42090-C0i201904-202007
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#
62413CCLIP (FOR CENTER LOWER GARNISH)
main90467-10161×4i201904-202007
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-42090-C0i201904-202007
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#
62470AGARNISH ASSY, ROOF SIDE, INNER RH
main62470-42170-B0i202210-202310
LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,4#
62471GCLIP, ROOF SIDE INNER GARNISH
main90467-10167×4i201904-202007
62471JCLIP (FOR ROOF SIDE GARNISH)
main90467-09240×8i202310-202410
62471MCLIP
main90467-10161×4i202310
62480AGARNISH ASSY, ROOF SIDE, INNER LH
main62480-42180-B0i202008-202210
LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM2#,4#
62489BCLIP, ROOF SIDE INNER GARNISH
main62489-28010×2i201904-202007
62551FGARNISH, REAR SEAT SIDE, RH
main62555-42050-C0i201904-202007
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#
main62555-42070-C0i202310
BLACK,TRIM2#; BLACK,TRIM2#,4#
62552FGARNISH, REAR SEAT SIDE, LH
main62556-42050-C0i202008-202210
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#
main62556-42070-C0i202210-202310
BLACK,TRIM2#; BLACK,TRIM2#,4#
62565ACLIP (FOR REAR SEAT SIDE GARNISH)
main90467-09240×2i202008-202210
62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
main62567-33040×2i202310-202410
67913BPLATE, FRONT DOOR SCUFF, RH
main67913-42130-C0i201904-202007
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#
67914BPLATE, FRONT DOOR SCUFF, LH
main67914-42130-C0i201904-202007
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#
67917CPLATE, REAR DOOR SCUFF, RH
main67917-42100-C0i202210-202310
BLACK,TRIM2#; BLACK,TRIM2#,4#
main67917-42110-C0i202210-202310
BLACK,TRIM2#; BLACK,TRIM2#,4#
67917DCLIP, REAR DOOR SCUFF PLATE
main90467-05171×2i201904-202007
67918EPLATE, REAR DOOR SCUFF, LH
main67918-42100-C0i202310
BLACK,TRIM2#; BLACK,TRIM2#,4#
main67918-42110-C0i202210-202310
BLACK,TRIM2#; BLACK,TRIM2#,4#
7152SEAT BELT
→ Go to FIG 71-52
9046718017
main90467-18017

40 parts on this diagram · 1 diagram in section

INSIDE TRIM BOARD for Toyota RAV4
