Toyota RAV4 — HEATING & AIR CONDITIONING - COMPRESSOR

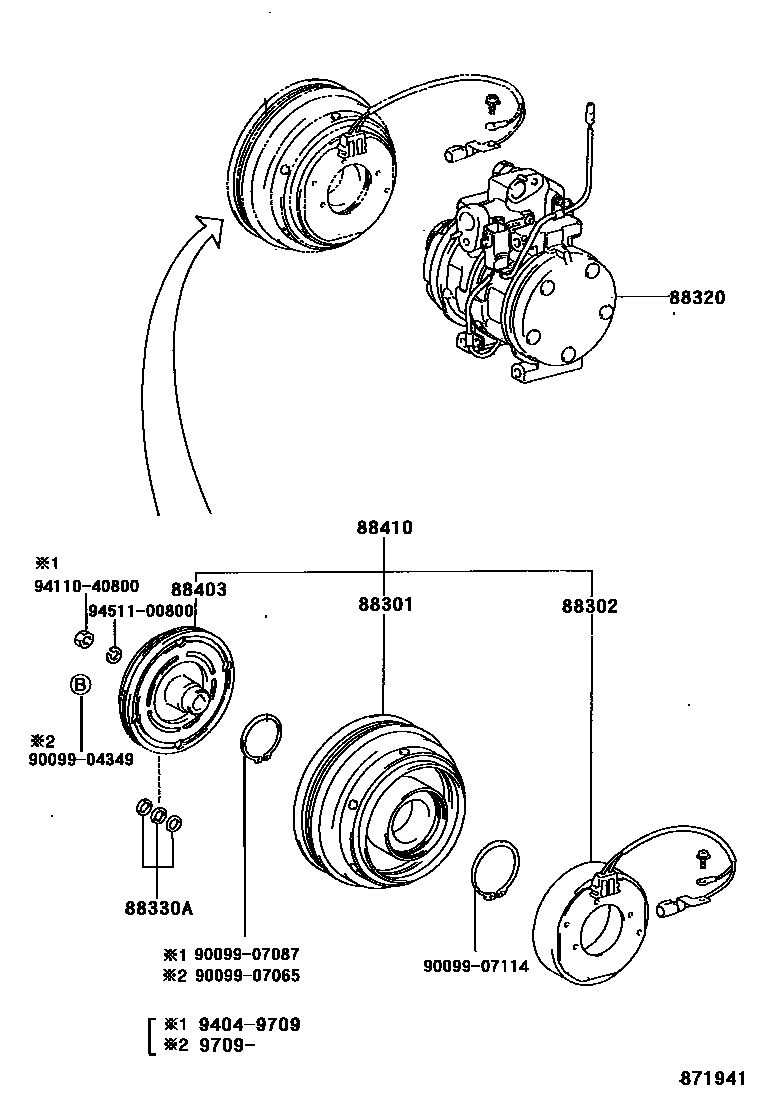

Parts diagram

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-2A010i199404-199709

main88412-32011i199608-199709

main88412-44010i199709

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-2A030i199709

main88411-42010i199404-199608

main88411-43010i199608-199709

88320COMPRESSOR ASSY, COOLER

main88320-42010i199404-199608

main88320-42011i199608-199709

main88320-42040i199608-199709

main88320-42050i199709

main88320-42060i199709

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050i199608-199709

main88335-14020i199709

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030i199404-199709

main88403-30290i199709

88410CLUTCH ASSY, MAGNET

main88410-42010i199404-199608

main88410-42020i199608-199709

main88410-42030i199608-199709

main88410-44010i199709

9009904349

main90099-04349

9009907065

main90099-07065

9009907087

main90099-07087

9009907114

main90099-07114

9411040800

main94110-40800

9451100800

main94511-00800

12 parts on this diagram · 3 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota RAV4

This section contains 26 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota RAV4. Key components include: ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH), HUB SUB-ASSY, MAGNET CLUTCH.
