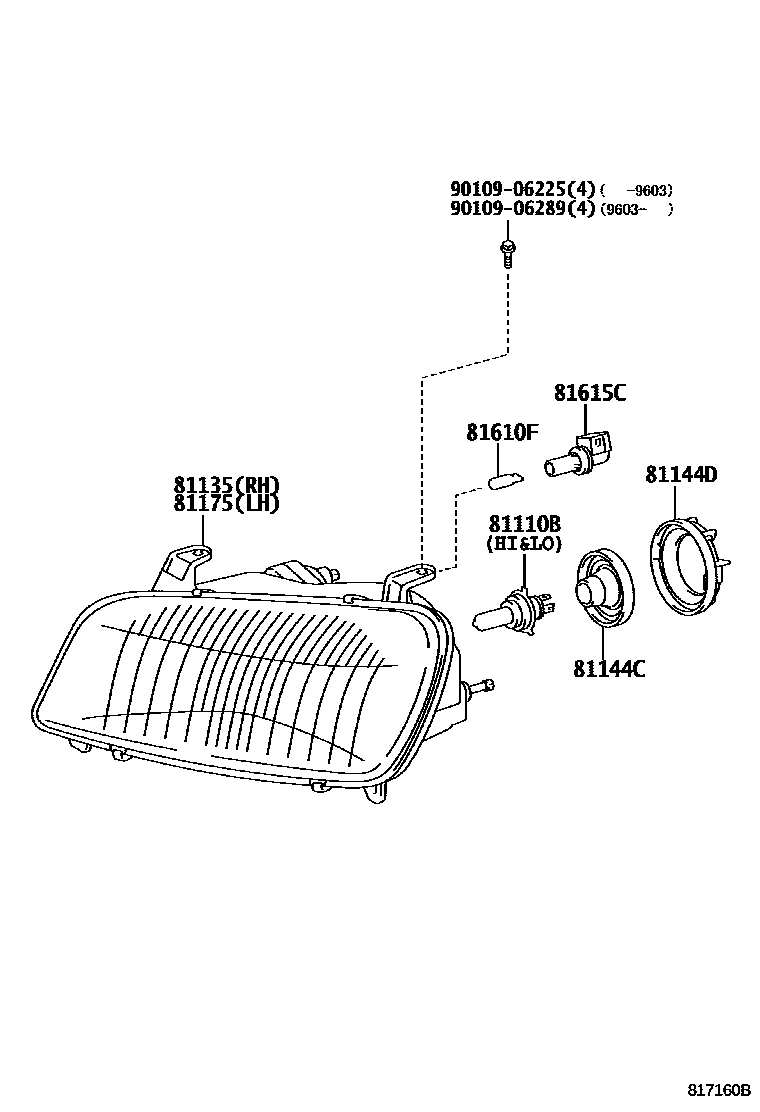

Toyota RAV4 — HEADLAMP

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81040×2i199709

main90981-22003×2i199404-199709

81135UNIT ASSY, HEADLAMP, RH

main81105-42010i199404-199709

main81105-42080i199709

81144CCOVER, HEADLAMP SOCKET

main81139-1E310×2i199404-199709

81144DCAP, HEADLAMP LOCKING

main81112-1E310×2i199404-199709

81175UNIT ASSY, HEADLAMP, LH

main81106-42010i199404-199709

main81106-42080i199709

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2i199404-199709

81615CSOCKET & WIRE, CLEARANCE LAMP

main90075-99044×2i199404-199709

9010906225

main90109-06225

9010906289

main90109-06289

9 parts on this diagram · 2 diagrams in section

HEADLAMP for Toyota RAV4

This section contains 10 genuine Toyota parts for the HEADLAMP system of the Toyota RAV4. Key components include: BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2), UNIT ASSY, HEADLAMP, RH, COVER, HEADLAMP SOCKET, CAP, HEADLAMP LOCKING.
