Toyota RAV4 — FUEL INJECTION SYSTEM
22210BODY ASSY, THROTTLE
22210CHOSE, WATER BY-PASS, NO.1
22210DHOSE, WATER BY-PASS, NO.2
22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
22215GASKET, THROTTLE BODY COVER
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22271GASKET, THROTTLE BODY
23232GASKET(FOR FUEL PUMP HOSE)
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270BGASKET(FOR PULSATION DAMPER HOSE)
23280REGULATOR ASSY, FUEL PRESSURE
23291INSULATOR, INJECTOR VIBRATION
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23802BPIPE SUB-ASSY, FUEL, NO.2
23802CBOLT, UNION(FOR FUEL PIPE NO.2)
23802DGASKET(FOR FUEL PIPE NO.2)
23807PIPE SUB-ASSY, FUEL DELIVERY
23807BHOSE, FUEL DELIVERY PIPE
23807VSPACER, NO.1(FOR DELIVERY PIPE)
8404ELECTRONIC FUEL INJECTION SYSTEM
2182125180SCREW, 2ND THROTTLE VALVE SET
main21821-25180
9007911003
main90079-11003
9025411004
main90254-11004
9040112033
main90401-12033
9099992002
main90999-92002
9151160855
main91511-60855
91511B0840
main91511-B0840
9162160612
main91621-60612
91632G0625
main91632-G0625
9165140855
main91651-40855

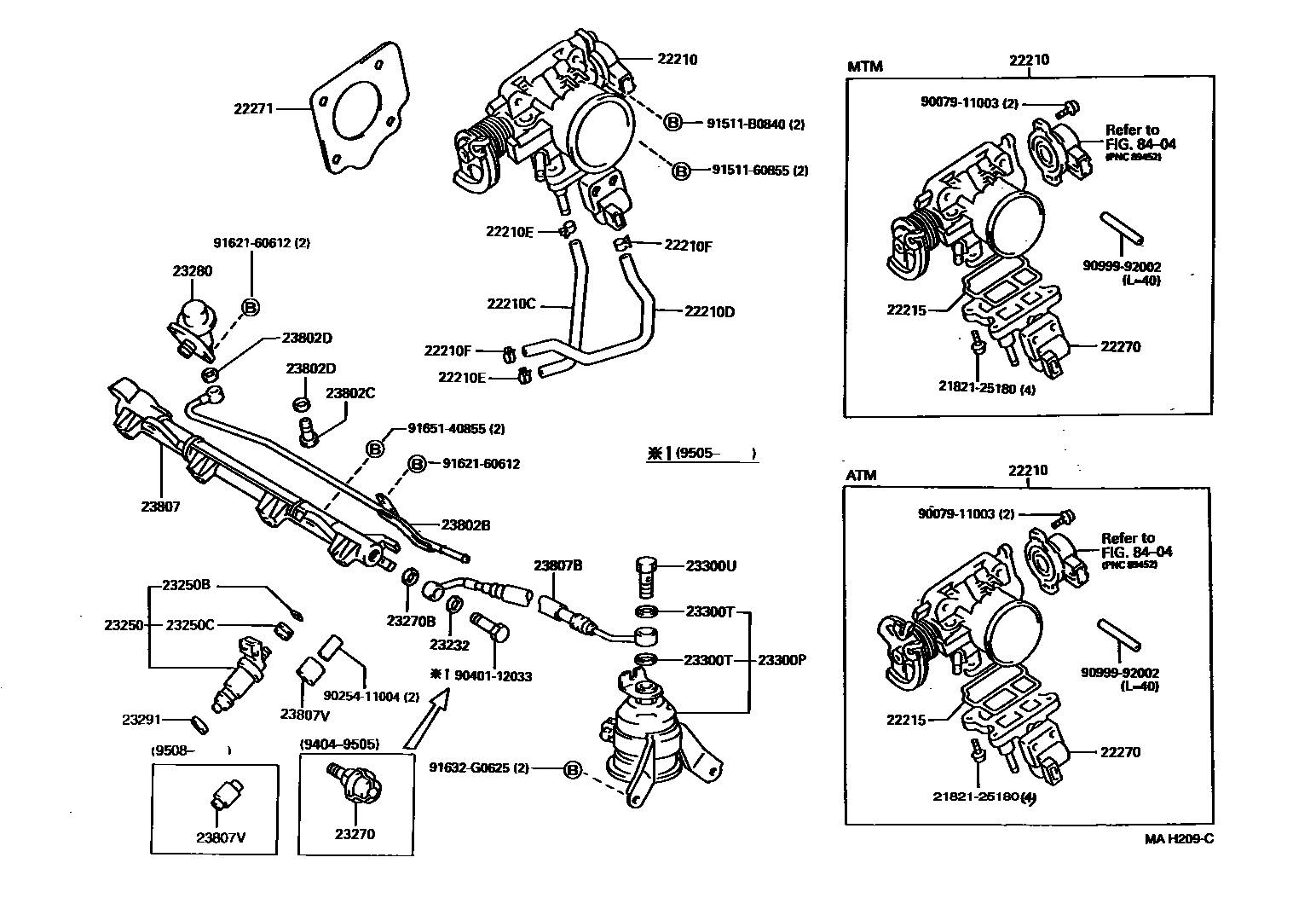

36 parts on this diagram · 5 diagrams in section
FUEL INJECTION SYSTEM for Toyota RAV4
This section contains 77 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota RAV4. Key components include: VACUUM PIPING, BODY ASSY, THROTTLE, HOSE, WATER BY-PASS, NO.1, HOSE, WATER BY-PASS, NO.2, CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1).
