Toyota RAV4 — FRONT FENDER APRON & DASH PANEL

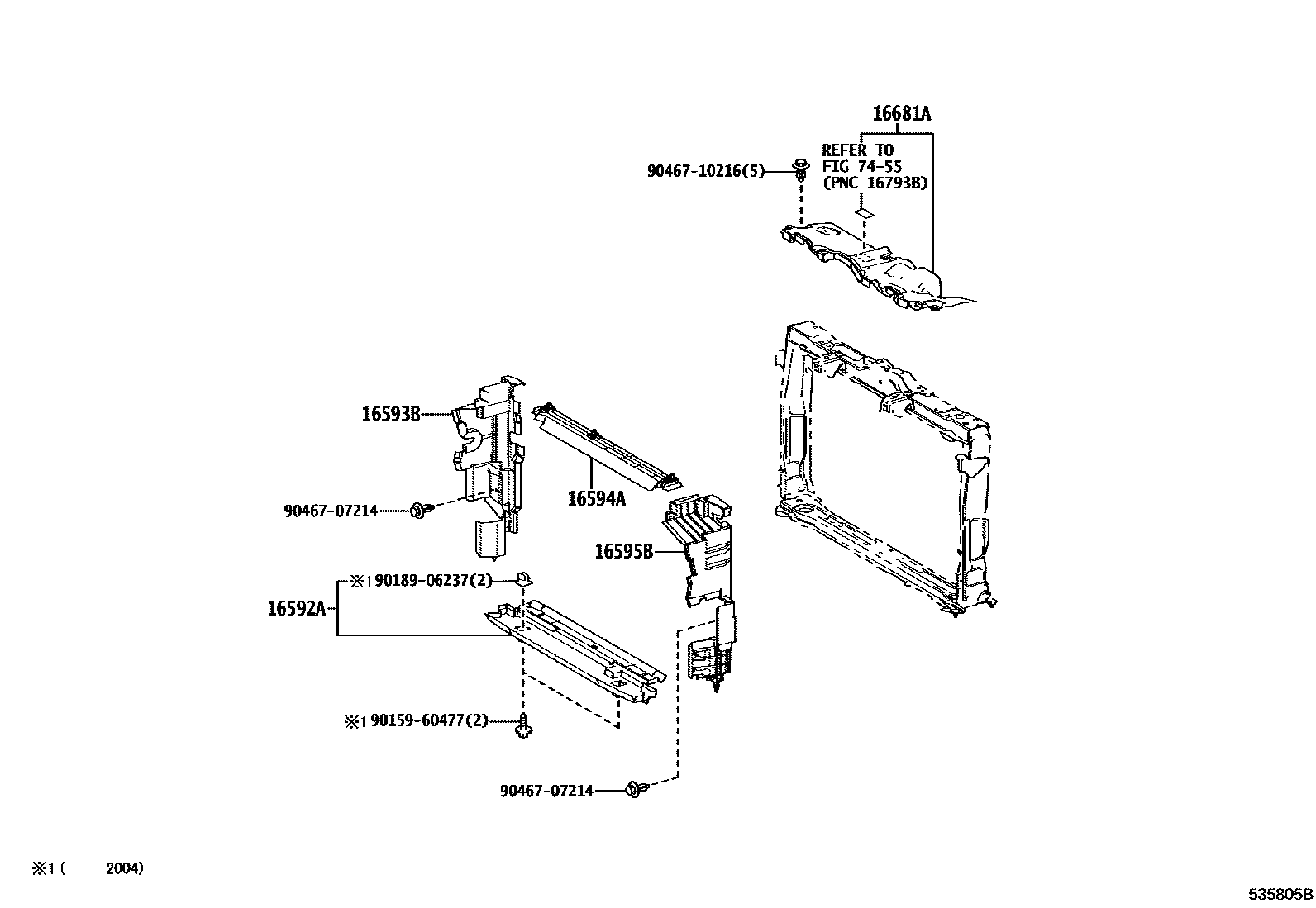

Parts diagram

16592AGUIDE, RADIATOR AIR, NO.3

main16592-25010i201904-202410

main16592-25030i201904-202003

main16592-25040i202004-202410

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-25120i201904-202112

main16593-25290i202112-202410

16594AGUIDE, RADIATOR AIR, NO.2

main16594-25020i201904-202112

main16594-25040i202112-202410

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-25110i201904-202112

main16595-25280i202112-202410

16681APLATE, RADIATOR UPPER AIR GUIDE

main16681-25010i201904-202410

main16681-25020i201904-202410

7455CAUTION PLATE

→ Go to FIG 74-55

9015960477

main90159-60477

9018906237

main90189-06237

9046707214

main90467-07214

9046710216

main90467-10216

10 parts on this diagram · 4 diagrams in section

FRONT FENDER APRON & DASH PANEL for Toyota RAV4

This section contains 55 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota RAV4. Key components include: GUIDE, RADIATOR AIR, NO.3, GUIDE, RADIATOR AIR, NO.1 RH, GUIDE, RADIATOR AIR, NO.2, GUIDE, RADIATOR AIR, NO.1 LH, PLATE, RADIATOR UPPER AIR GUIDE.
