Toyota RAV4 — FRONT DOOR LOCK & HANDLE

6765LOCK CYLINDER SET

→ Go to FIG 67-65

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-30A70i202310

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-30010i202310

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-30010i202310-202410

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-30A80i202310-202410

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-30100i202310-202410

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-30090i202310-202410

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-33140-C0i202310

BLACK,TRIM2#; BLACK,TRIM2#,4#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014×2i201904-202007

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-33150-C0i201904-202007

BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-30380-A1i201904-202007

SUPER WHITE 2,040

main69210-30380-A2i202008-202204

WHITE PEARL CS.,070

main69210-30380-B3i201904-202007

SILVER ME.,1D6

main69210-30380-B4i202008-202204

GRAY ME.,1G3; GRAY ME.,1G3 ,2QX

main69210-30380-C2i202008-202204

ATTITUDE BLACK MC.,218; ATTITUDE BLACK MC.,218 ,2QW

main69210-30380-D2i202008-202204

RED MC.,3T3

main69210-30380-G1i201904-202007

URBAN KHAKI,2QU ,6X3; URBAN KHAKI,6X3

main69210-30380-J3i202008-202112

CYAN METALLIC,2QV ,8W9; CYAN METALLIC,8W9

main69210-30380-J4i201904-202007

DK. BLUE MC.,8X8

main69210-30380-J5i202112-202204

GRAYISH BLUE,2TU; GRAYISH BLUE,8W2

main69210-30381-A1i202210-202310

SUPER WHITE 2,040

main69210-30381-A2i202205-202210

main69210-30381-A3i202310

PLATINUM WHITE PEARL MC.,089

main69210-30381-B3i202210-202310

SILVER ME.,1D6

main69210-30381-B4i202310

GRAY ME.,1G3

main69210-30381-C2i202310

ATTITUDE BLACK MC.,218

main69210-30381-D2i202310-202410

RED MC.,3T3

main69210-30381-G1i202205-202210

main69210-30381-J4i202310

DK. BLUE MC.,8X8

main69210-30381-J5i202310

GRAYISH BLUE,2TU ,2VV

main69210-30400-A2i201904-202007

main69210-30400-B4i202008-202204

main69210-30400-B5i201904-202007

main69210-30400-C2i202008-202204

main69210-30400-D3i201904-202007

main69210-30400-J5i201904-202007

main69210-30401-A2i202205-202210

WHITE PEARL CS.,070

main69210-30401-A4i202310

PLATINUM WHITE PEARL MC.,089

main69210-30401-B4i202210-202310

SILVER ME.,1D6

main69210-30401-B5i202310

GRAY ME.,1G3

main69210-30401-C2i202205-202210

ATTITUDE BLACK MC.,218

main69210-30401-D3i202310

RED MC.,3T3

main69210-30401-J5i202310

DK. BLUE MC.,8X8

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69217-30140i202310-202410

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-30370-A1i201904-202007

SUPER WHITE 2,040

main69210-30370-A2i201904-202007

WHITE PEARL CS.,070

main69210-30370-B3i201904-202007

SILVER ME.,1D6

main69210-30370-B4i201904-202007

GRAY ME.,1G3; GRAY ME.,1G3 ,2QX

main69210-30370-C2i201904-202007

ATTITUDE BLACK MC.,218; ATTITUDE BLACK MC.,218 ,2QW

main69210-30370-D2i202008-202204

RED MC.,3T3

main69210-30370-G1i202008-202204

URBAN KHAKI,2QU ,6X3; URBAN KHAKI,6X3

main69210-30370-J3i201904-202007

CYAN METALLIC,2QV ,8W9; CYAN METALLIC,8W9

main69210-30370-J4i202008-202204

DK. BLUE MC.,8X8

main69210-30370-J5i202112-202204

GRAYISH BLUE,2TU; GRAYISH BLUE,8W2

main69210-30371-A1i202210-202310

SUPER WHITE 2,040

main69210-30371-A2i202205-202210

WHITE PEARL CS.,070

main69210-30371-A3i202210-202310

PLATINUM WHITE PEARL MC.,089

main69210-30371-B3i202310-202410

SILVER ME.,1D6

main69210-30371-B4i202210-202310

GRAY ME.,1G3

main69210-30371-C2i202310

ATTITUDE BLACK MC.,218

main69210-30371-D2i202310-202410

RED MC.,3T3

main69210-30371-G1i202210-202310

URBAN KHAKI,2QU ,2ZF ,6X3

main69210-30371-J4i202205-202210

DK. BLUE MC.,8X8

main69210-30371-J5i202310

GRAYISH BLUE,2TU ,2VV

main69210-30390-A2i202008-202204

main69210-30390-B4i201904-202007

main69210-30390-B5i201904-202007

main69210-30390-C2i201904-202007

main69210-30390-D3i201904-202007

main69210-30390-J5i201904-202007

main69210-30391-A2i202205-202210

WHITE PEARL CS.,070

main69210-30391-A4i202310

PLATINUM WHITE PEARL MC.,089

main69210-30391-B4i202310

SILVER ME.,1D6

main69210-30391-B5i202310

GRAY ME.,1G3

main69210-30391-C2i202310

ATTITUDE BLACK MC.,218

main69210-30391-D3i202310

RED MC.,3T3

main69210-30391-J5i202210-202310

DK. BLUE MC.,8X8

69237ANUT, FRONT DOOR HANDLE

main69237-62010×2i201904-202007

69239CBUSH, FRONT DOOR HANDLE

main69239-47010×2i201904-202007

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-30130×2i201904-202007

69242FPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-30110×2i201904-202007

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-42010-C0i201904-202007

BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-42010-C0i201904-202007

BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-33030i201904-202007

69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-33040i201904-202007

69296SCREW, DOOR INSIDE HANDLE

main69296-30010×2i201904-202007

main90148-50006×2i202203-202210

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-42050i201904-202005

main69311-42080i202005-202007

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-42050i201904-202005

main69312-42090i202005-202007

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2i201904-202007

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110×2i201904-202007

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-42070i201904-202007

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-42070i201904-202007

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-42050i201904-202007

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-42050i201904-202007

9014850003

main90148-50003

9014860083

main90148-60083

9014880066

main90148-80066

9018905003

main90189-05003

9356755020

main93567-55020

35 parts on this diagram · 1 diagram in section

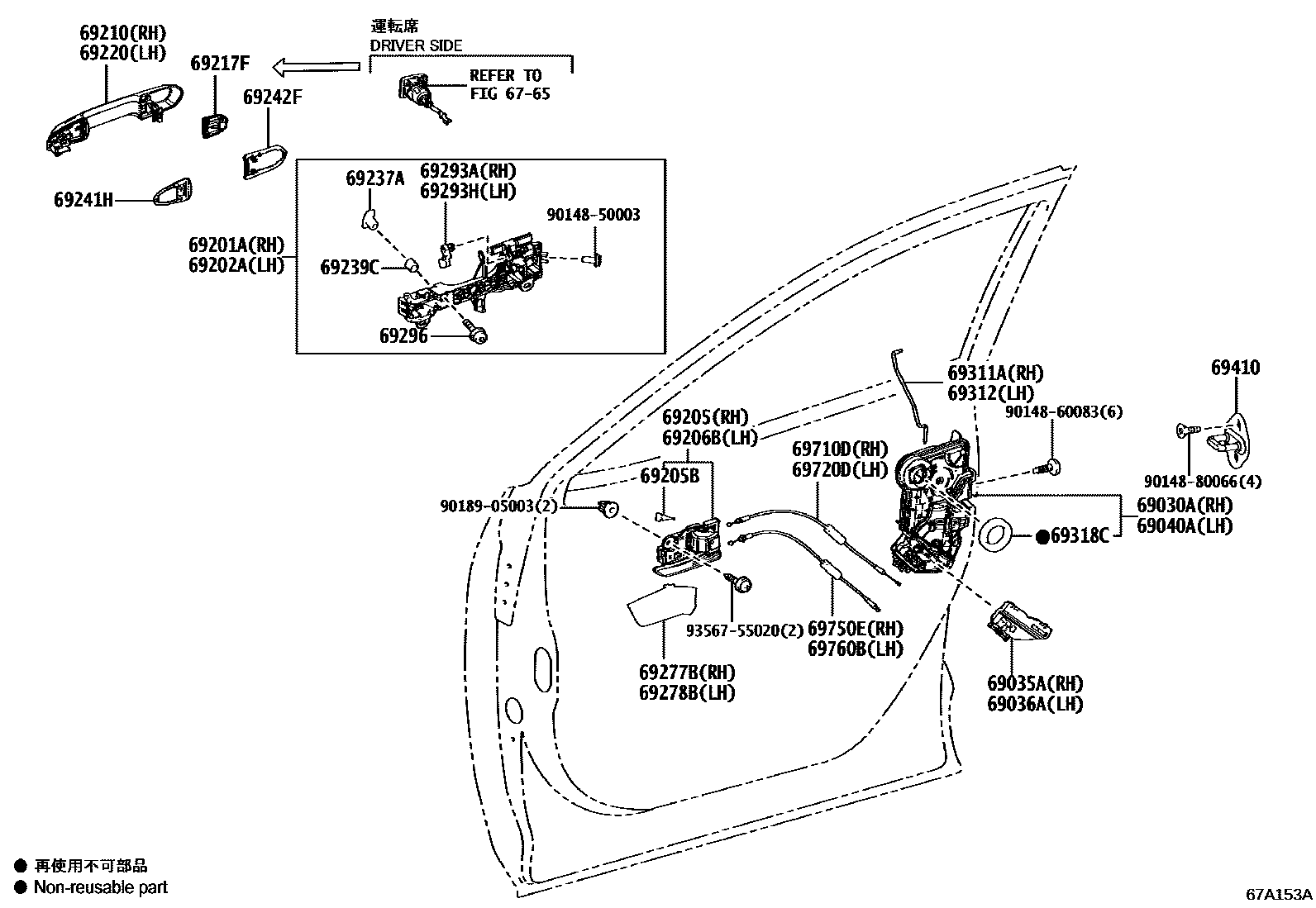

FRONT DOOR LOCK & HANDLE for Toyota RAV4

This section contains 35 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota RAV4. Key components include: LOCK CYLINDER SET, LOCK ASSY, FRONT DOOR W/MOTOR, RH, COVER SUB-ASSY, FRONT DOOR LOCK, RH, COVER SUB-ASSY, FRONT DOOR LOCK, LH, LOCK ASSY, FRONT DOOR W/MOTOR, LH.
