Toyota RAV4 — FRONT AXLE HUB

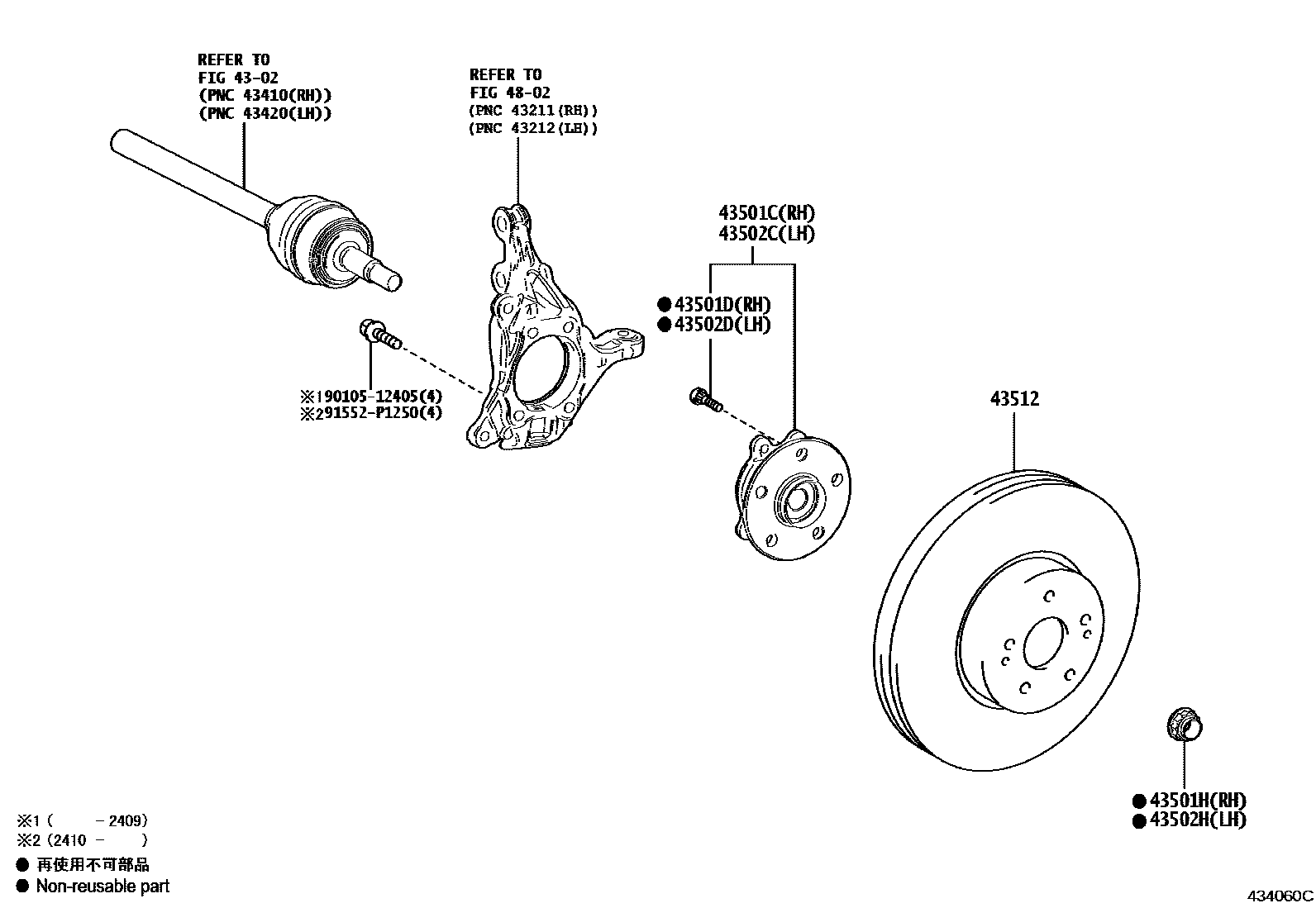

Parts diagram

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-33050i202210-202310

main43550-33070i201904-202007

main43550-33090i202310-202410

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5i201904-202007

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i201904-202007

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-33050i202008-202210

main43550-33070i202210-202309

main43550-33090i202310-202410

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5i202310

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i201904-202007

43512DISC, FRONT

main43512-33150×2i201904-202007

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9010512405

main90105-12405

91552P1250

main91552-P1250

11 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota RAV4

This section contains 11 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota RAV4. Key components include: FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), NUT (FOR FRONT AXLE SHAFT RH), HUB SUB-ASSY, FRONT AXLE, LH.
