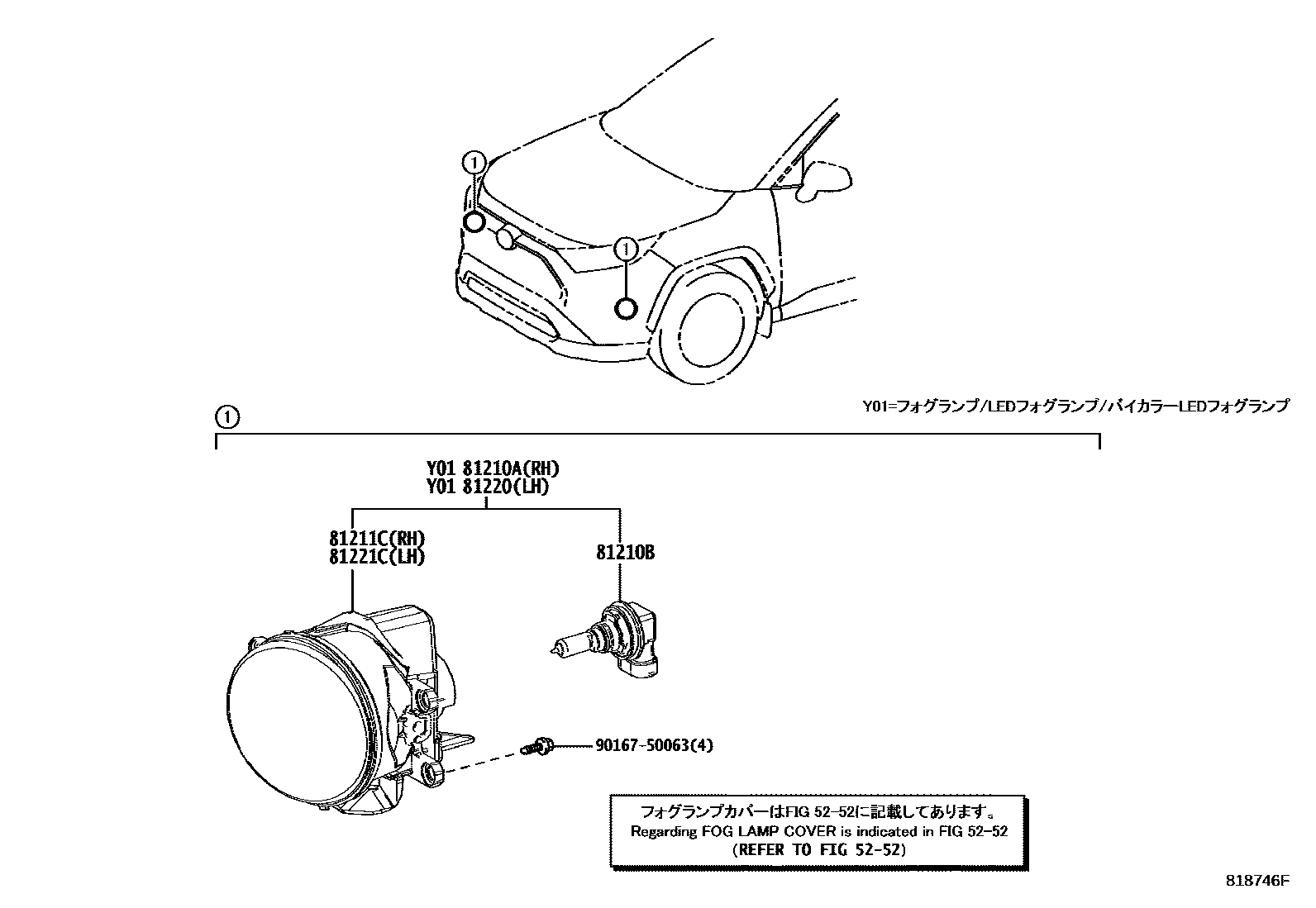

Toyota RAV4 — FOG LAMP

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

81210ALAMP ASSY, FOG, RH

main81210-12240i202112-202210

main81210-47010i202008-202112

main81210-48051i202210-202310

81210BBULB, FOG LAMP

main90981-13090×2i201904-202007

81211CLAMP UNIT, FOG LAMP, RH

main81211-47010i201904-202007

81220LAMP ASSY, FOG, LH

main81220-12240i202112-202210

main81220-47010i202008-202112

main81220-48051i202210-202310

81221CLAMP UNIT, FOG LAMP, LH

main81221-47010i201904-202007

9016750063

main90167-50063

7 parts on this diagram · 3 diagrams in section

FOG LAMP for Toyota RAV4

This section contains 9 genuine Toyota parts for the FOG LAMP system of the Toyota RAV4. Key components include: FRONT BUMPER & BUMPER STAY, LAMP ASSY, FOG, RH, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, BRACKET, FOG LAMP, RH.
