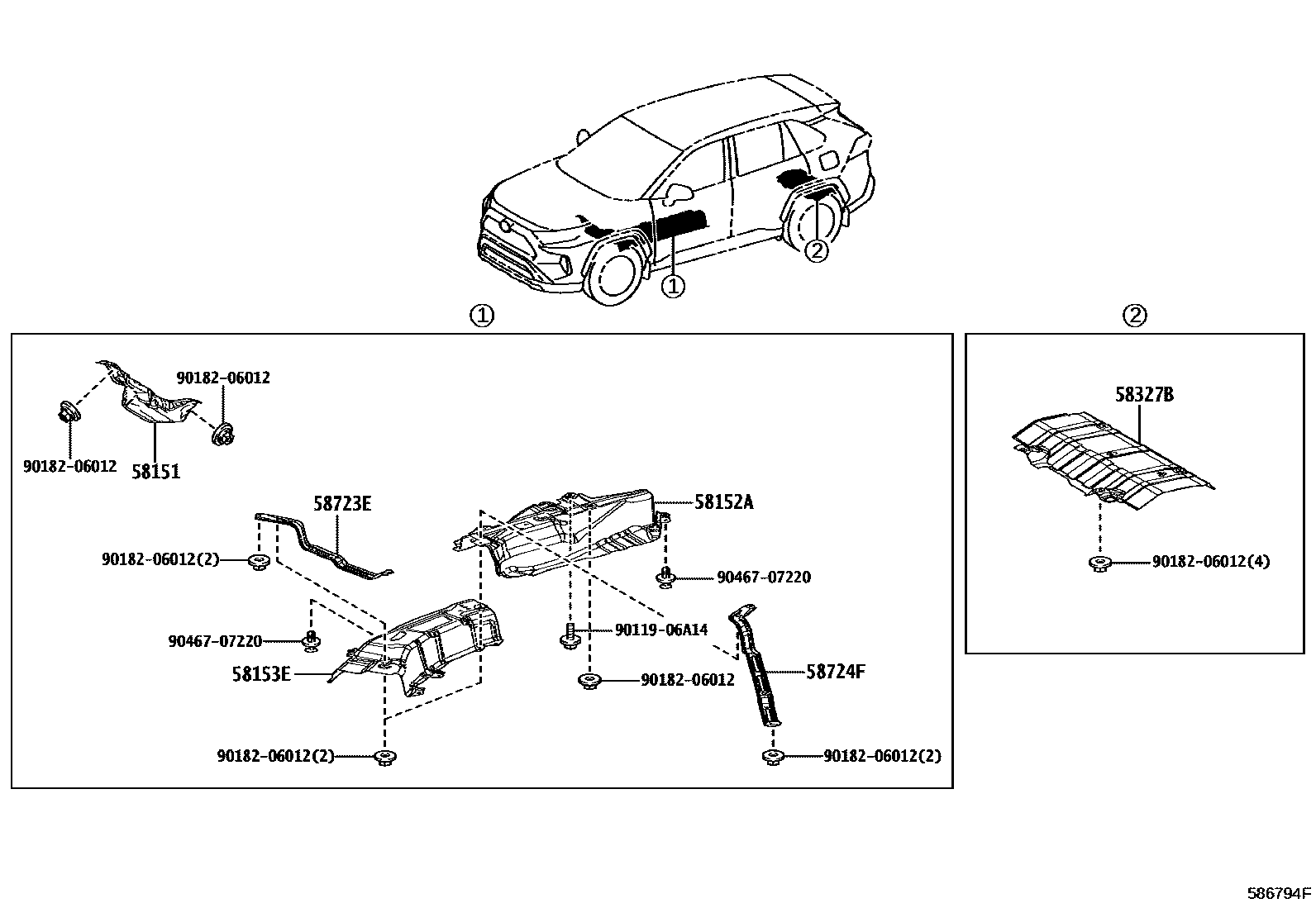

Toyota RAV4 — FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-42060i202210-202310

58152AINSULATOR, FRONT FLOOR HEAT, NO.1 LOWER

main58152-42050i202008-202210

main58720-42010i202210-202310

58153EINSULATOR, FRONT FLOOR HEAT, NO.2

main58153-42020i202210-202310

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-42030i201904-202007

58723ECUSHION, ENGINE SERVICE COVER

main58723-42040i201904-202007

58724FCUSHION, ENGINE SERVICE COVER, NO.2

main58724-42040i201904-202007

9011906A14

main90119-06A14

9018206012

main90182-06012

9046707220

main90467-07220

9 parts on this diagram · 2 diagrams in section

FLOOR INSULATOR for Toyota RAV4

This section contains 9 genuine Toyota parts for the FLOOR INSULATOR system of the Toyota RAV4. Key components include: INSULATOR, FRONT FLOOR HEAT, NO.1, INSULATOR, FRONT FLOOR HEAT, NO.1 LOWER, INSULATOR, FRONT FLOOR HEAT, NO.2, INSULATOR, MAIN MUFFLER HEAT, CUSHION, ENGINE SERVICE COVER.
