Toyota RAV4 — EXHAUST GAS RECIRCULATION SYSTEM

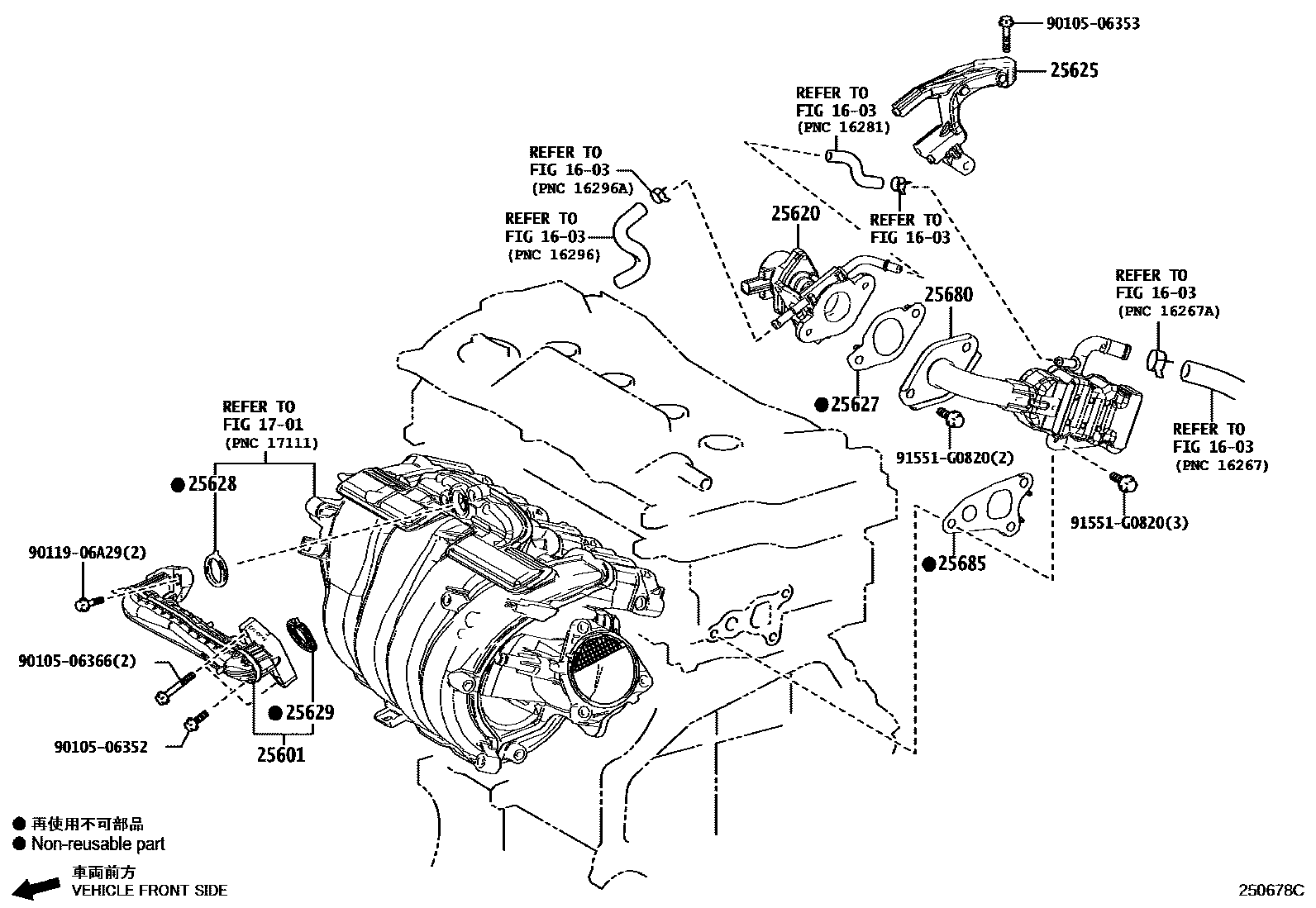

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

25601PIPE SUB-ASSY, EGR, NO.1

main25601-24030i202310-202410

main25601-25011i201904-202007

main25601-25030i202310-202410

25620VALVE ASSY, EGR

main25620-24050i202210-202310

main25620-25040i201904-202007

25625BRACKET, EGR VALVE

main25625-25010i201904-202007

main25625-25030i202008-202112

25627GASKET, EGR VALVE

main25627-24010i202310

main25627-25010i202008-202112

25628GASKET, EGR INLET

main25628-25010i202310-202410

25629GASKET, EGR VALVE ADAPTER

main25629-25010i201904-202007

25680COOLER ASSY, EGR

main25680-24010i202210-202310

main25680-25030i202008-202112

main25680-25060i202310-202410

25685GASKET, EGR COOLER, NO.1

main25685-25011i201904-202007

9010506352

main90105-06352

9010506353

main90105-06353

9010506366

main90105-06366

9011906A29

main90119-06A29

91551G0820

main91551-G0820

15 parts on this diagram · 3 diagrams in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota RAV4

This section contains 19 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota RAV4. Key components include: RADIATOR & WATER OUTLET, MANIFOLD, PIPE SUB-ASSY, EGR, NO.1, VALVE ASSY, EGR, BRACKET, EGR VALVE.
