Toyota RAV4 — ENGINE OIL PUMP

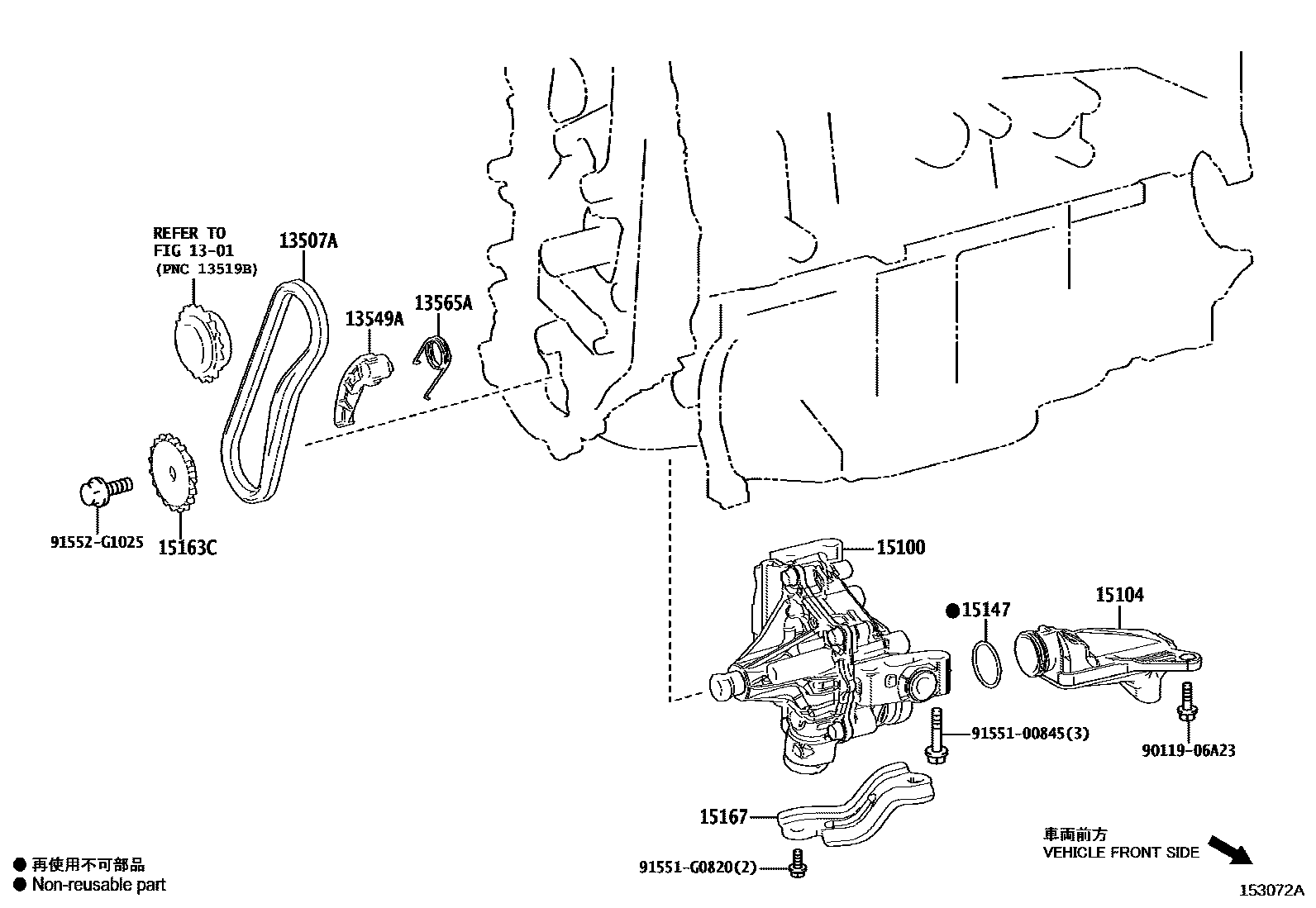

Parts diagram

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

13507ACHAIN SUB-ASSY, OIL PUMP DRIVE

main13507-24020i202008-202210

main13507-25010i202310

13549APLATE, CHAIN TENSIONER

main13549-25020i202210-202310

13565ASPRING, CHAIN DAMPER

main13565-25010i201904-202007

15100PUMP ASSY, OIL

main15100-24020i201904-202007

main15100-25032i202310-202410

15104STRAINER SUB-ASSY, OIL

main15104-24010i202008-202210

main15104-25030i202310

15147GASKET, OIL STRAINER

main15147-25010i202210-202310

15163CSPROCKET, OIL PUMP DRIVE SHAFT

main15163-25010i201904-202007

15167BRACKET, OIL PUMP

main15167-25011i201904-202007

9011906A23

main90119-06A23

9155100845

main91551-00845

91551G0820

main91551-G0820

91552G1025

main91552-G1025

13 parts on this diagram · 2 diagrams in section

ENGINE OIL PUMP for Toyota RAV4

This section contains 13 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota RAV4. Key components include: CRANKSHAFT & PISTON, CHAIN SUB-ASSY, OIL PUMP DRIVE, PLATE, CHAIN TENSIONER, SPRING, CHAIN DAMPER, PUMP ASSY, OIL.
