Toyota RAV4 — ELECTRONIC FUEL INJECTION SYSTEM

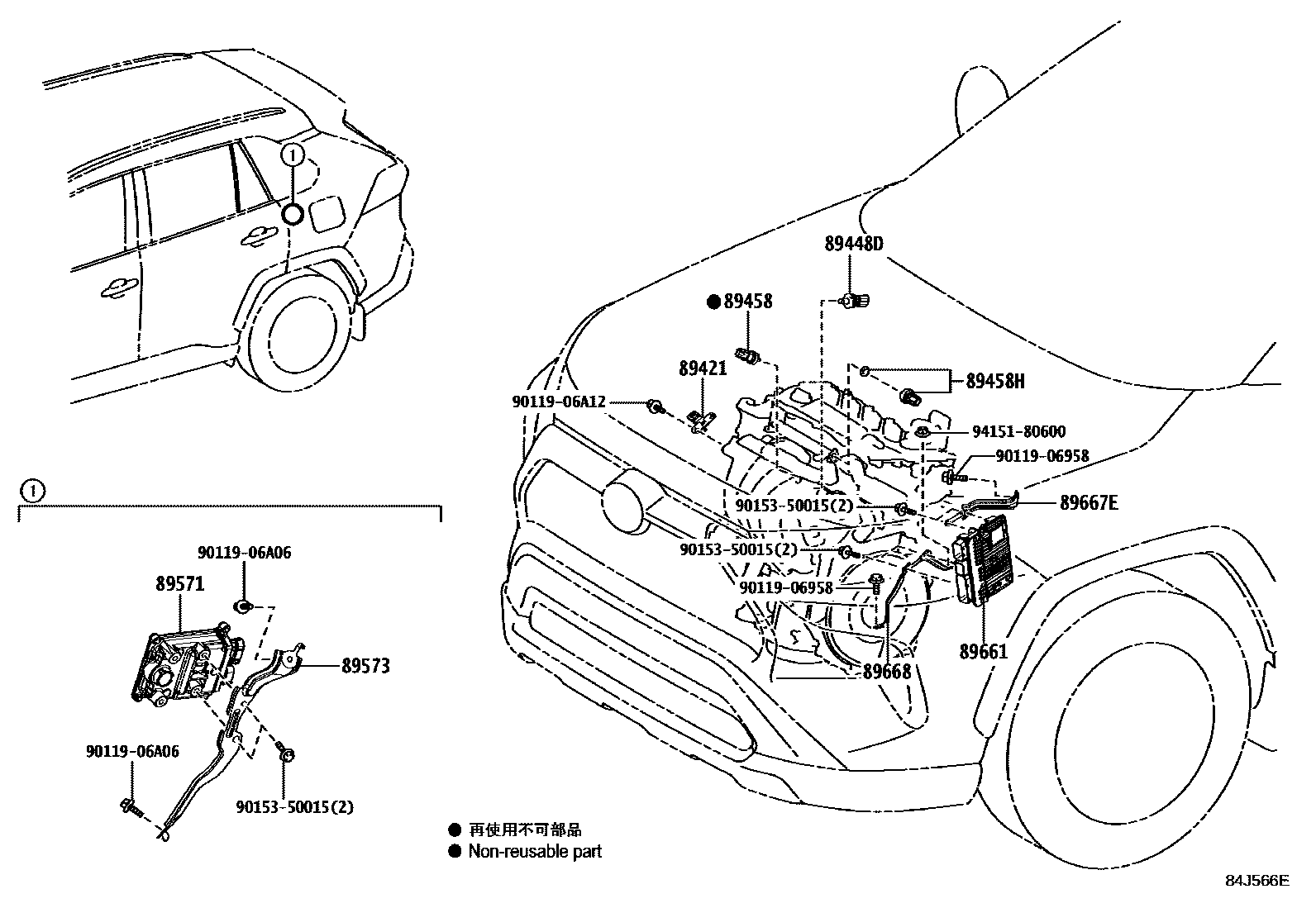

Parts diagram

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010i202008-202210

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010i201904-202007

89458SENSOR, FUEL PRESSURE

main89458-33030i201904-202007

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33041i202210-202303

main89458-33042i202310

89571COMPUTER, FUEL PUMP CONTROL

main89571-12010i202008-202109

main89571-48010i202310-202410

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-42030i201904-202007

89661COMPUTER, ENGINE CONTROL

main89661-4A220i201904-202007

main89661-4A230i201904-202007

main89661-4A290i201904-202007

main89661-4A690i202210-202310

main89661-4A700i202112-202210

main89661-4A750i202210-202310

main89661-4AB90i202310

main89661-4AD40i202008-202112

main89661-4AD50i202008-202112

main89661-4AF50i202112-202210

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-33190i202210-202310

main89667-42080i202210-202310

main89667-42081i202406-202410

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-42080i202008-202210

main89668-42100i202210-202310

9011906958

main90119-06958

9011906A06

main90119-06A06

9011906A12

main90119-06A12

9015350015

main90153-50015

9415180600

main94151-80600

14 parts on this diagram · 2 diagrams in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota RAV4

This section contains 14 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota RAV4. Key components include: SENSOR ASSY, VACUUM (FOR E.F.I.), SENSOR, OIL PRESSURE & TEMPERATURE, SENSOR, FUEL PRESSURE, SENSOR, FUEL PRESSURE, NO.2, COMPUTER, FUEL PUMP CONTROL.
